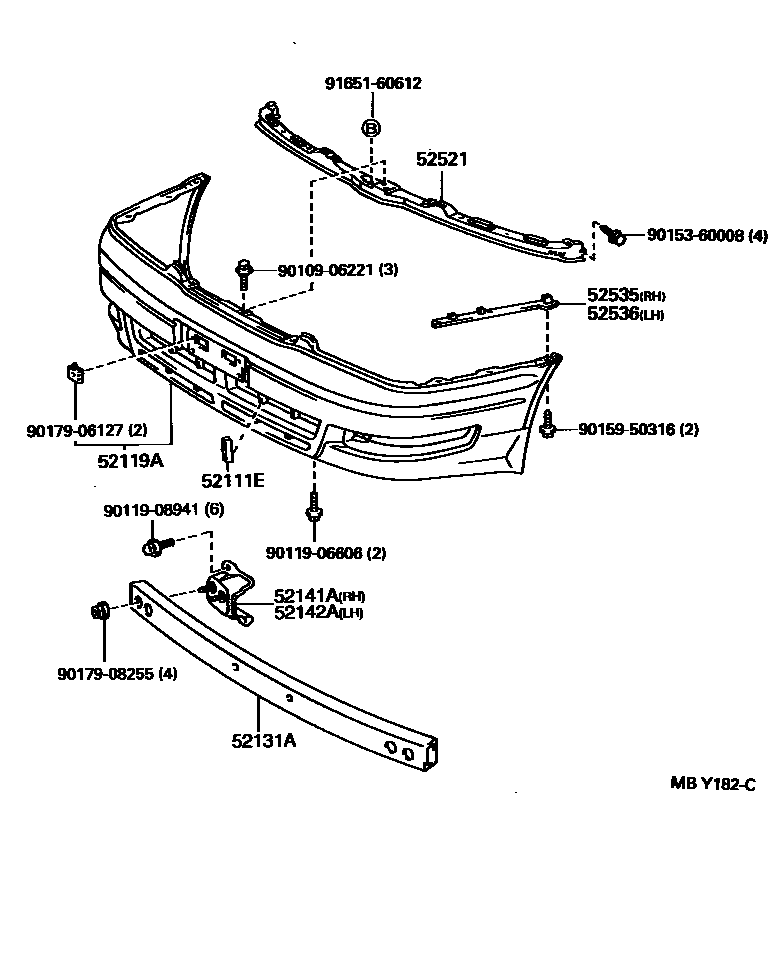

Toyota CAMRY/VISTA — FRONT BUMPER & BUMPER STAY
52111EBAR, FRONT BUMPER
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
LT.GRAIGE ME.,1A2
SILVER ME,199
DK GREEN MICA,6M1
DK.BLUE MM,8G5
WARM GRAY PM,22Y
DK BLUISH GRAY MICA,29Y
SUPER WHITE 2,040
LT.GRAIGE ME.,1A2
SILVER ME,199
DK GREEN MICA,6M1
DK.BLUE MM,8G5
DK BLUISH GRAY MICA,29Y
SUPER WHITE 2,040
SILVER ME,199
FLAXEN MM,4M7
DK GREEN MICA,6M1
DK.BLUE MC.GR.,8L8
WARM GRAY PM,22Y
DK BLUISH GRAY MICA,29Y
SUPER WHITE 2,040
SILVER ME,199
FLAXEN MM,4M7
DK GREEN MICA,6M1
DK.BLUE MC.GR.,8L8
WARM GRAY PM,22Y
DK BLUISH GRAY MICA,29Y
52131AREINFORCEMENT, FRONT BUMPER
52141AARM, FRONT BUMPER, UPPER RH
52142AARM, FRONT BUMPER, UPPER LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
9010906221
main90109-06221
9011906606
main90119-06606
9011908941
main90119-08941
9015360008
main90153-60008
9015950316
main90159-50316
9017906127
main90179-06127
9017908255
main90179-08255
9165160612
main91651-60612
16 parts on this diagram · 2 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota CAMRY/VISTA
This section contains 18 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota CAMRY/VISTA. Key components include: BAR, FRONT BUMPER, COVER, FRONT BUMPER, REINFORCEMENT, FRONT BUMPER, ARM, FRONT BUMPER, UPPER RH, ARM, FRONT BUMPER, UPPER LH.
