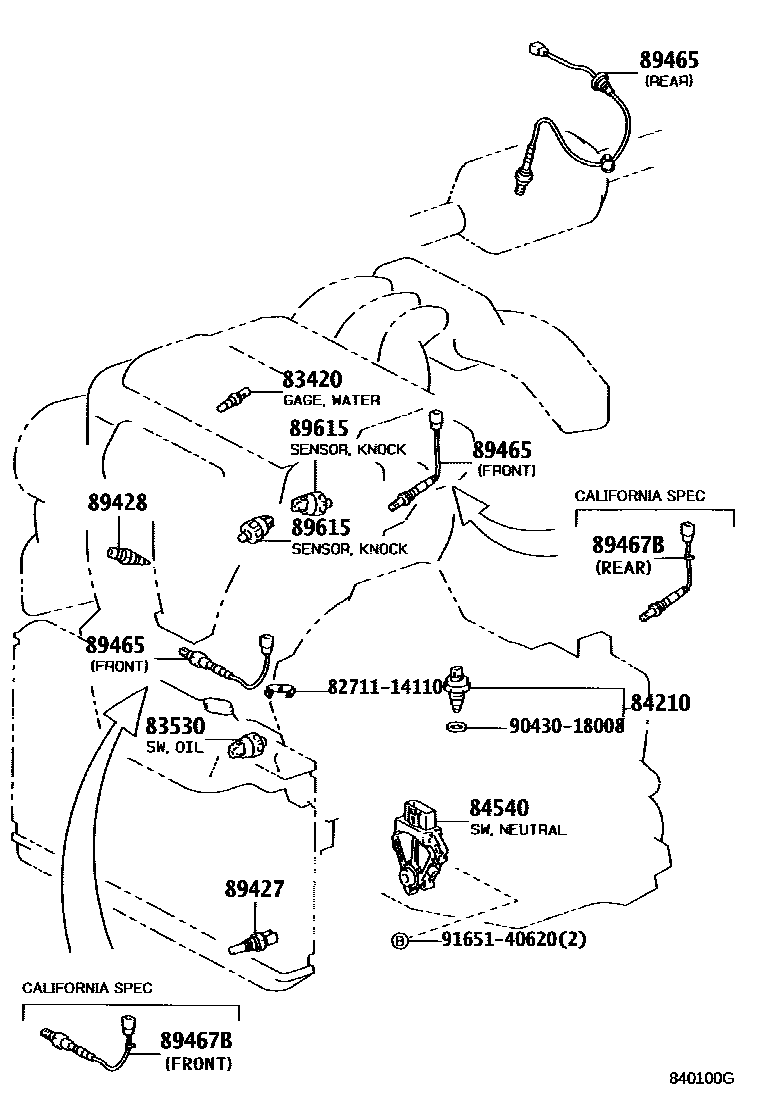

Toyota CAMRY (NAP) — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040i199607

YAZAKI

main83420-AA010i199607

(L)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i199805

(J)

main83530-30090i199607-199805

(J)

main83530-AA010i199607-199708

(L)

main83530-AA011i199708

(L)

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i199607

84540SWITCH ASSY, NEUTRAL START

main84540-20200i199607

main84540-20220i199607

89427SWITCH, TEMPERATURE DETECT

main89428-33020i199607

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33010i199607

main89428-41010i199607

89465SENSOR, OXYGEN

main89465-06010i199801-200008

FRONT

main89465-06020i199801-200008

REAR

main89465-06030i199808-200103

PART NUMBER LABEL=89465-06030,FRONT

main89465-06040i199908-200107

REAR

main89465-06080i200103

PART NUMBER LABEL=89465-06080,FRONT

main89465-33120i199607-199801

REAR

main89465-33130i199607-199801

FRONT

main89465-33180i199607-200103

PART NUMBER LABEL=89465-33180,FRONT

main89465-33310i200103

PART NUMBER LABEL=89465-33310,FRONT

89467BSENSOR, AIR FUEL RATIO

main89467-33010i199607-199902

CALIFORNIA SPEC

main89467-33011i199902-199908

CALIFORNIA SPEC

main89467-33020i199908-200008

CALIFORNIA SPEC

main89467-33020i200008-200107

main89467-33030i200008

FRONT

main89467-41010i199708-199905

CALIFORNIA SPEC,FRONT

main89467-41011i199905-200008

CALIFORNIA SPEC,FRONT

main89467-41020i199708-199905

CALIFORNIA SPEC,REAR

main89467-41021i199905-200008

CALIFORNIA SPEC,REAR

main89467-41030i200008

REAR

89615SENSOR, KNOCK CONTROL

main89615-12040i199607-199908

main89615-12040i199908

MATSUSHITA

main89615-12090i199908

DENSO

main89615-20030i199607-199910

TOYOTA

main89615-32030i199910

DENSO

main89615-32040i199910

TOYOTA

main89615-33020i199607-199910

NIPPON DENSO

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9043018008

main90430-18008

9165140620

main91651-40620

12 parts on this diagram · 9 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota CAMRY (NAP)

This section contains 125 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CAMRY (NAP). Key components include: RELAY ASSY, STARTER, SHIFT LEVER & RETAINER, KNOB SUB-ASSY, CONTROL, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP.
