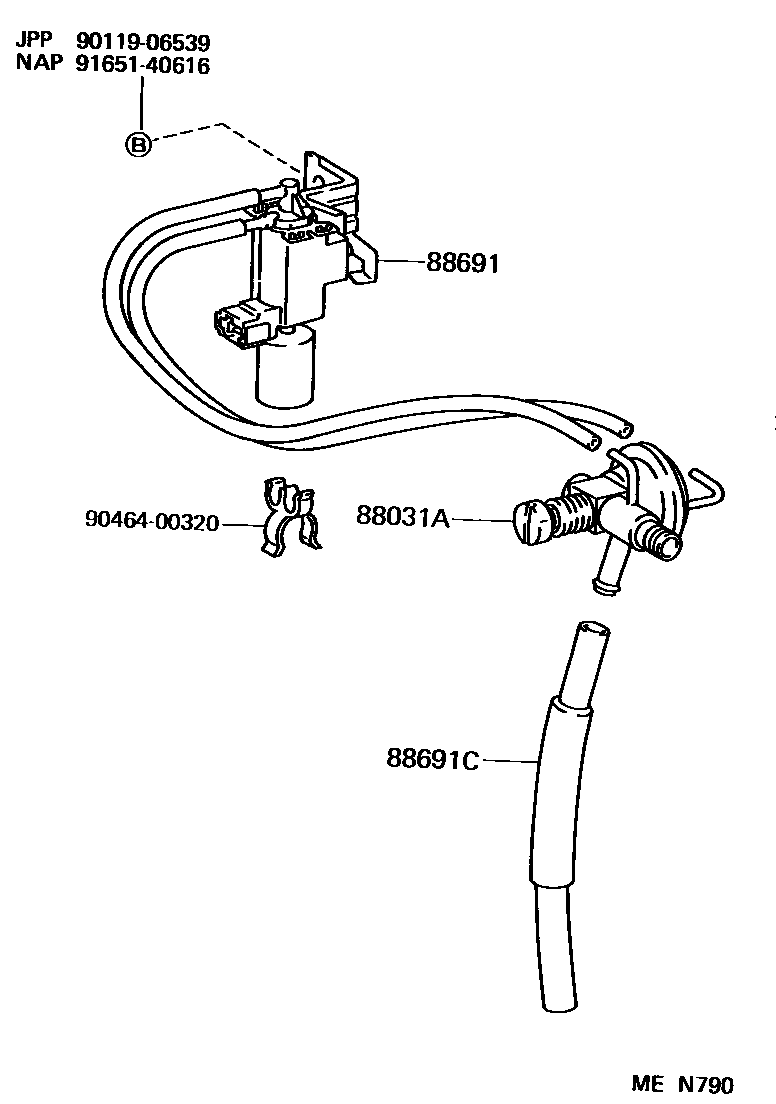

Toyota CAMRY (NAP) — HEATING & AIR CONDITIONING - VACUUM PIPING
88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88691VALVE, MAGNET (FOR IDLE UP DEVICE)
88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
9011906539
main90119-06539
9046400320
main90464-00320
9165140616
main91651-40616
6 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - VACUUM PIPING for Toyota CAMRY (NAP)
This section contains 6 genuine Toyota parts for the HEATING & AIR CONDITIONING - VACUUM PIPING system of the Toyota CAMRY (NAP). Key components include: DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR, VALVE, MAGNET (FOR IDLE UP DEVICE), HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1.
