Toyota CAMRY (NAP) — HEATING & AIR CONDITIONING - COMPRESSOR

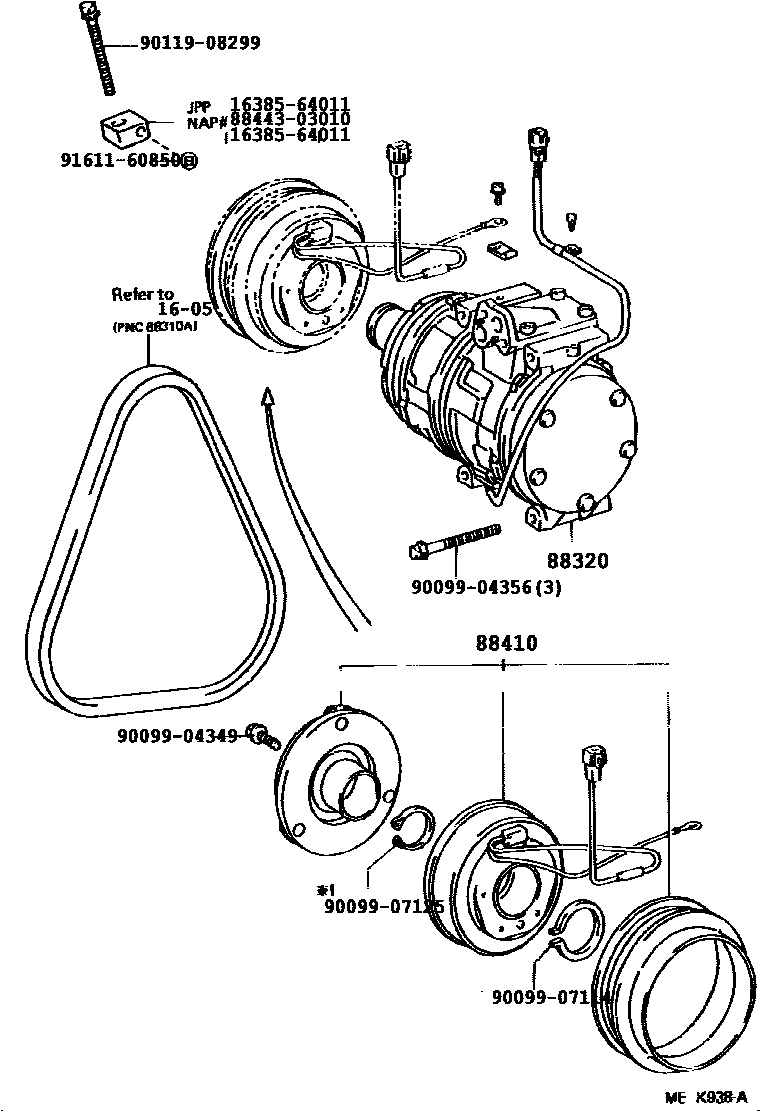

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88320COMPRESSOR ASSY, COOLER

main88320-03010i198807-199109

main88320-03020i198909-199109

88410CLUTCH ASSY, MAGNET

main88410-03010i198807-199109

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

8844303010COLLAR, IDLE PULLEY

main88443-03010

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9011908299

main90119-08299

9161160850

main91611-60850

11 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CAMRY (NAP)

This section contains 14 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CAMRY (NAP). Key components include: V-BELT, COMPRESSOR ASSY, COOLER, CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1, SLIDER, FAN BELT ADJUSTING.
