Toyota CAMRY (NAP) — CONSOLE BOX & BRACKET

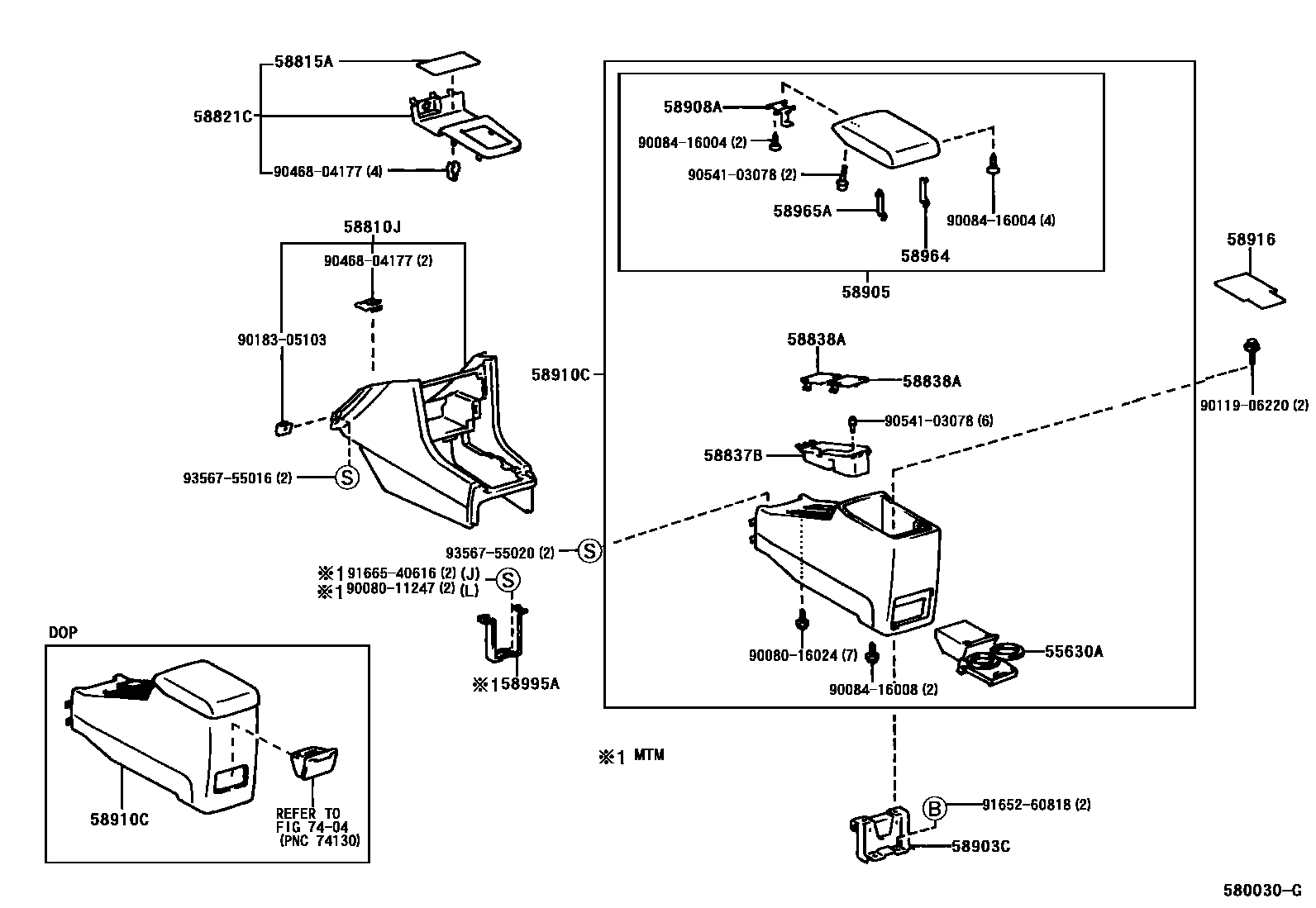

Parts diagram

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-AA010-B0i199607

BLUISH GRAY,TRIM1#

main55630-AA010-E0i199607

OAK,TRIM4#

main55630-AA010-G0i199607

DK.SAGE,TRIM6#

58810JBOX ASSY, CONSOLE

main58810-AA010-B0i199607

BLUISH GRAY,TRIM1#

main58810-AA010-E0i199607

OAK,TRIM4#

main58810-AA010-G0i199607

DK.SAGE,TRIM6#

58815ACARPET, CONSOLE BOX

main58815-AA010-C0i199607-199708

BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,6#

58821CPANEL, CONSOLE, UPPER

main58804-AA020-B0i199607

BLUISH GRAY,TRIM1#

main58804-AA020-E0i199607

OAK,TRIM4#

main58804-AA020-G0i199607

DK.SAGE,TRIM6#

main58804-AA030i199607-199908

main58804-AA040i199908

58837BBOX, CONSOLE CUP HOLDER

main58837-AA010-B0i199607-200107

BLUISH GRAY,TRIM1#

main58837-AA010-E0i199607-200107

OAK,TRIM4#

main58837-AA010-G0i199607-200107

DK.SAGE,TRIM6#

58838ADOOR, CONSOLE CUP HOLDER BOX

main58838-AA010-B0×2i199607

BLUISH GRAY,TRIM1#

main58838-AA010-E0×2i199607

OAK,TRIM4#

main58838-AA010-G0×2i199607

DK.SAGE,TRIM6#

58903CBRACKET, CONSOLE BOX MOUNTING, NO.2

main58903-AA010i199607

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-AA010-B0i199607-199806

BLUISH GRAY,TRIM1#

main58905-AA010-E0i199607-199806

OAK,TRIM4#

main58905-AA010-G0i199607-199806

DK.SAGE,TRIM6#

main58905-AA011-B0i199806

BLUISH GRAY,TRIM1#

main58905-AA011-E0i199806

OAK,TRIM4#

main58905-AA011-G0i199806

DK.SAGE,TRIM6#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-AA010i199607

58910CBOX ASSY, CONSOLE, REAR

main58910-AA010-B0i199607-199806

BLUISH GRAY,TRIM1#

main58910-AA010-E0i199607-199806

OAK,TRIM4#

main58910-AA010-G0i199607-199806

DK.SAGE,TRIM6#

main58910-AA011-B0i199806

BLUISH GRAY,TRIM1#

main58910-AA011-E0i199806-199808

OAK,TRIM4#,40; OAK,TRIM40

main58910-AA011-G0i199806

DK.SAGE,TRIM6#

58916MAT, BOX BOTTOM

main58916-AA010i199607

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-AA010i199607

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-AA010i199607

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-AA010i199607

7404ASH RECEPTACLE

→ Go to FIG 74-04

9008011247

main90080-11247

9008016024

main90080-16024

9008416004

main90084-16004

9008416008

main90084-16008

9011906220

main90119-06220

9018305103

main90183-05103

9046804177

main90468-04177

9054103078

main90541-03078

9165260818

main91652-60818

9166540616

main91665-40616

9356755016

main93567-55016

9356755020

main93567-55020

27 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota CAMRY (NAP)

This section contains 27 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CAMRY (NAP). Key components include: HOLDER, REAR CONSOLE BOX, CUP, BOX ASSY, CONSOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER, BOX, CONSOLE CUP HOLDER.
