Toyota CAMRY (NAP) — CONSOLE BOX & BRACKET

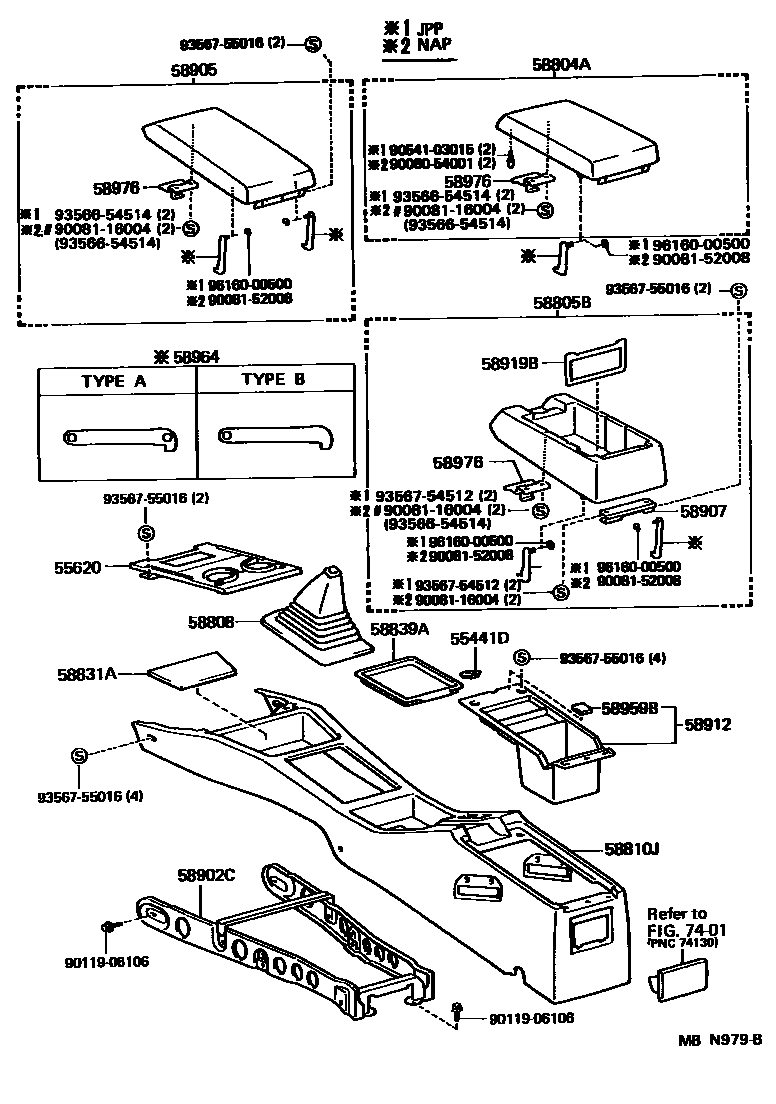

Parts diagram
55441DBOX, INSTRUMENT PANEL COIN
main55539-20020-B0i198807-199109
MEDIUM GRAY,TRIM1#
main55539-20020-D0i198807-199109
MAROON,TRIM3#
main55539-20020-E0i198807-199109
BROWN,TRIM4#
main55539-20020-J0i198807-199109
DARK BLUE,TRIM8#
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-32010i198807-199109
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main58804-03010-D0i198807-199109
MAROON,TRIM3#
main58804-03010-E0i198807-199109
BROWN,TRIM4#
main58804-03010-J0i198807-199109
DARK BLUE,TRIM8#
58805BPANEL SUB-ASSY, CONSOLE, LOWER
main58805-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main58805-03010-D0i198807-199109
MAROON,TRIM3#
main58805-03010-E0i198807-199109
BROWN,TRIM4#
main58805-03010-J0i198807-199109
DARK BLUE,TRIM8#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main58808-03010-D0i198807-199109
MAROON,TRIM3#
main58808-03010-E0i198807-199109
BROWN,TRIM4#
main58808-03010-J0i198807-199109
DARK BLUE,TRIM8#
58810JBOX ASSY, CONSOLE
main58810-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main58810-03010-D0i198807-199109
MAROON,TRIM3#
main58810-03010-E0i198807-199109
BROWN,TRIM4#
main58810-03010-J0i198807-199109
DARK BLUE,TRIM8#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-03010i198807-199109
58839ACOVER, CONSOLE BOX HOLE
main58839-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main58839-03010-D0i198807-199109
MAROON,TRIM3#
main58839-03010-E0i198807-199109
BROWN,TRIM4#
main58839-03010-J0i198807-199109
DARK BLUE,TRIM8#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
main58902-03010i198807-199109
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-03020-B0i198807-199109
MEDIUM GRAY,TRIM1#
main58905-03020-D0i198807-199109
MAROON,TRIM3#
main58905-03020-E0i198807-199109
BROWN,TRIM4#
main58905-03020-J0i198807-199109
DARK BLUE,TRIM8#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-03010i198807-199109
58912BOX, REAR CONSOLE, NO.2
main58912-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main58912-03010-D0i198807-199109
MAROON,TRIM3#
main58912-03010-E0i198807-199109
BROWN,TRIM4#
main58912-03010-J0i198807-199109
DARK BLUE,TRIM8#
58919BPLATE, CONSOLE BOX
main58919-03010i198807-199109
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-03010×2i198807-199003
main58959-03020×2i199003-199109
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-03010i198807-199109
LH
main58965-03010i198807-199109
RH
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
main58976-03010i198807-199109
7401ARMREST & VISOR
→ Go to FIG 74-01
9008054001
main90080-54001
9008116004
main90081-16004
9008152008
main90081-52008
9011906106
main90119-06106
9054103015
main90541-03015
9356654514
main93566-54514
9356754512
main93567-54512
9356755016
main93567-55016
9616000500
main96160-00500

26 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota CAMRY (NAP)

This section contains 26 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CAMRY (NAP). Key components include: BOX, INSTRUMENT PANEL COIN, HOLDER ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, LOWER, COVER SUB-ASSY, SHIFTING HOLE.
