Toyota CAMRY (NAP) — ACCELERATOR LINK

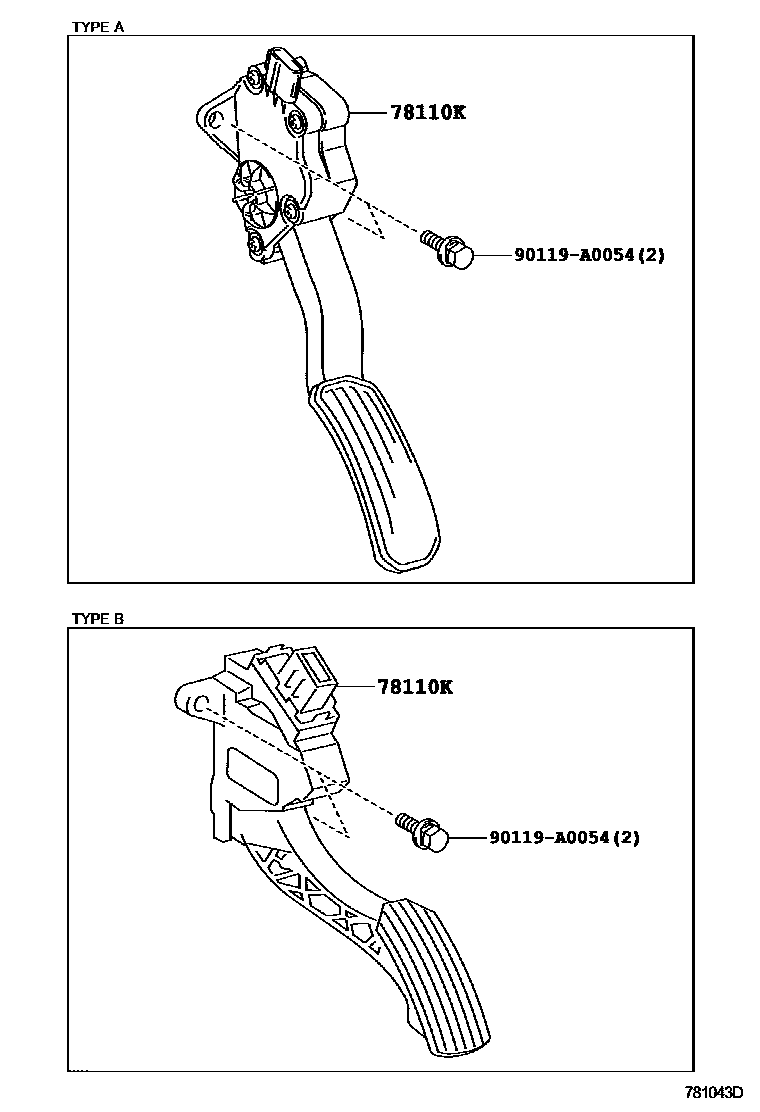

Parts diagram
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
main78110-06070i201001-201109
TYPE A:REFER ILLUST.
main78110-07010i200602-200801
TYPE B:REFER ILLUST.
main78110-07011i200802-200903
TYPE B:REFER ILLUST.
main78110-33020i200903-201001
TYPE A:REFER ILLUST.
main78110-33060i200903-201004
main78110-33120i201004-201109
90119A0054
main90119-A0054

2 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota CAMRY (NAP)

This section contains 2 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CAMRY (NAP). Key components include: ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
