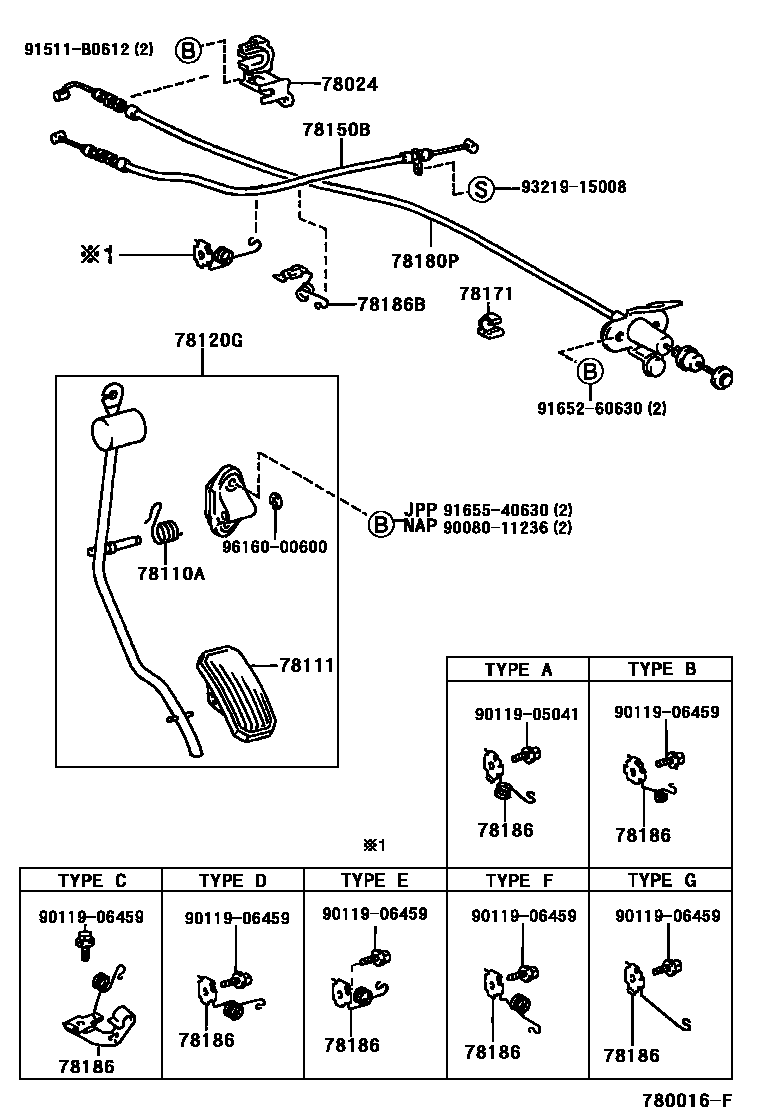

Toyota CAMRY (NAP) — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
(L)
(J)
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
(L)
(L)
W(CRUISE CONTOROL),(L)
W(CRUISE CONTOROL),(J)
78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH
78180PCABLE ASSY, ACCELERATOR CONTROL
W(CRUISE CONTOROL)
W(CRUISE CONTOROL)
W(CRUISE CONTOROL)
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE D:REFER TO ILLUSTRATION
TYPE E:REFER TO ILLUSTRATION
TYPE F:REFER TO ILLUSTRATION
TYPE G:REFER TO ILLUSTRATION
78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2
9008011236
main90080-11236
9011905041
main90119-05041
9011906459
main90119-06459
91511B0612
main91511-B0612
9165260630
main91652-60630
9165540630
main91655-40630
9321915008
main93219-15008
9616000600
main96160-00600
17 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota CAMRY (NAP)
This section contains 17 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CAMRY (NAP). Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE.
