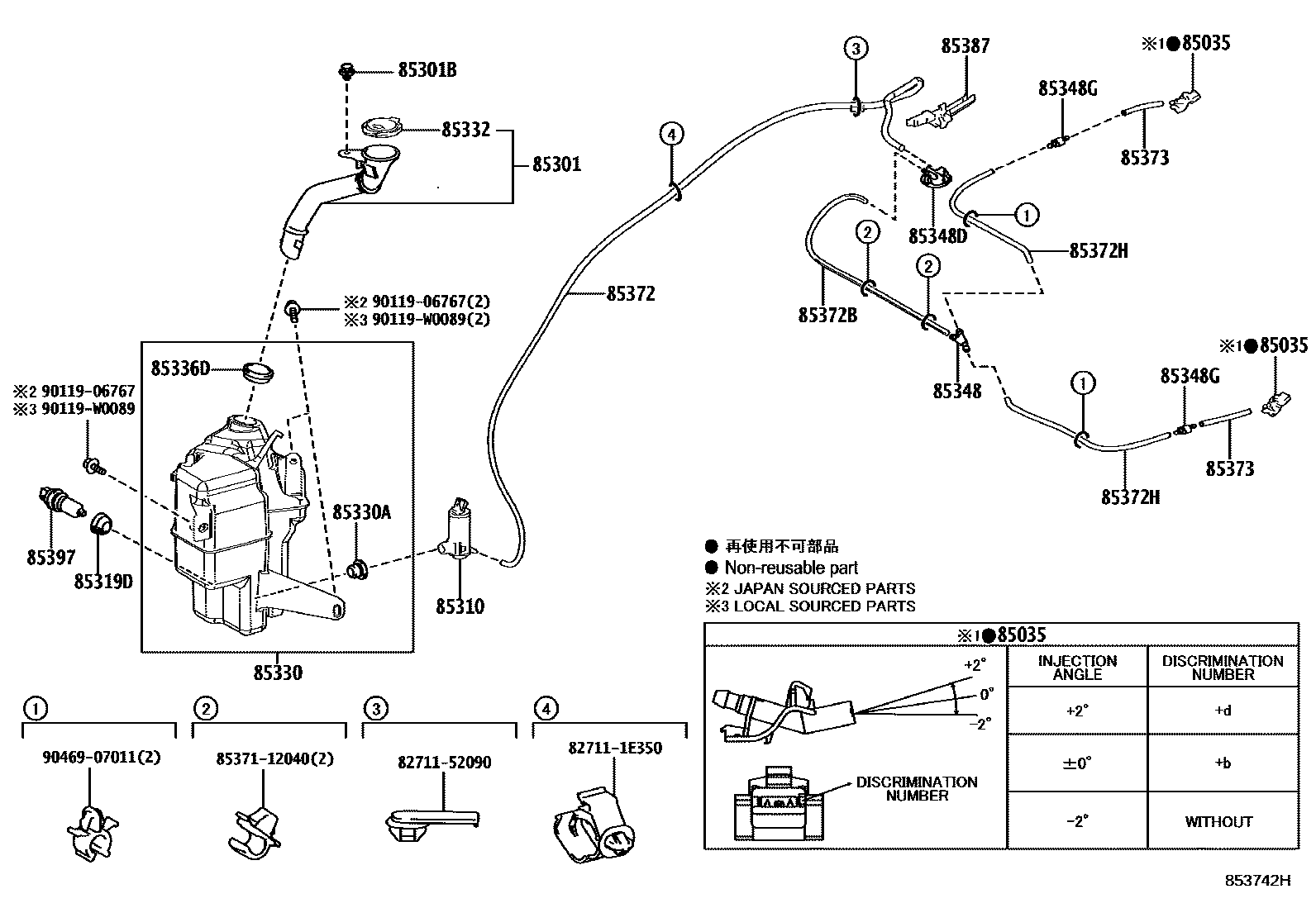

Toyota CAMRY (JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201703-201811

ANGLE 0

main85381-30230×2i201703-201811

ANGLE -2

main85381-30240×2i201703-201811

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85329-33520i201703-201811

85301BCLIP, WASHER

main90467-07214i201703-201811

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-04010i201703-201706

main85330-33070i201707-201811

85319DPACKING, FRONT WASHER

main85319-33230i201703-201811

85330JAR ASSY, WINDSHIELD WASHER

main85315-33520i201703-201811

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201703-201811

85332CAP, WINDSHIELD WASHER JAR

main85316-33560i201703-201811

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201703-201811

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-33410i201703-201811

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85373-33030i201703-201811

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-26020×2i201703-201811

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i201703-201811

L=1530

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201703-201811

L=1450(*H,L=330)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299×2i201703-201811

L=1000(*H,L=370)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201703-201811

L=1450(*H,L=60)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-33040i201703-201811

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i201703-201811

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

90119W0089

main90119-W0089

9046907011

main90469-07011

24 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CAMRY (JPP)

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER.
