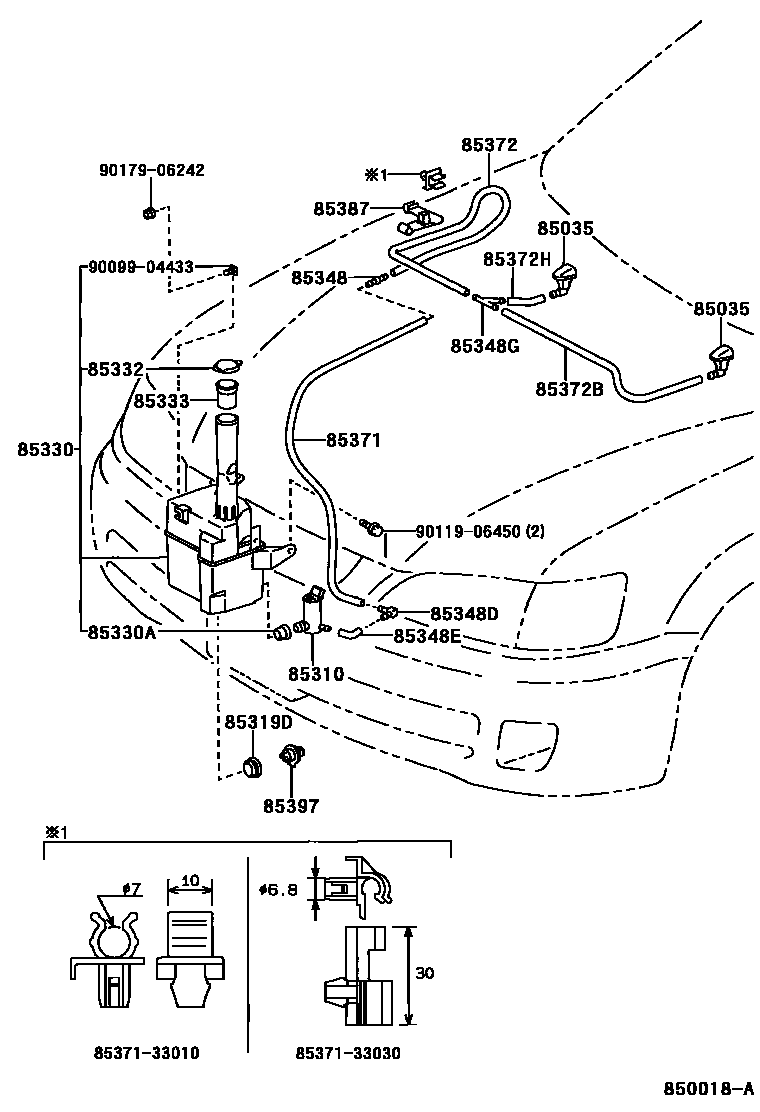

Toyota CAMRY (JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2i199608-199908

main85381-AA020i199708

main85381-AA030i199708

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33020i199608-199908

85319DPACKING, FRONT WASHER

main85319-33230i199608-199908

85330JAR ASSY, WINDSHIELD WASHER

main85315-33230i199908

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199608-199908

85332CAP, WINDSHIELD WASHER JAR

main85316-33050i199608-199908

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470i199608-199908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470i199608-199908

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-32110i199608-199908

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85317-12410i199608-199908

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390i199608-199908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33920i199608-199908

L=1400

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i199608-199908

L=1450(*H,L=750)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199608-199908

L=1450(*H,L=780)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199608-199908

L=1450(*H,L=200)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i199608-199908

85397SWITCH ASSY,LEVEL WARNING

main85397-33230i199608-199908

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

8537133030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33030

9009904433

main90099-04433

9011906450

main90119-06450

9017906242

main90179-06242

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CAMRY (JPP)

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
