Toyota CAMRY (JPP) — WINDSHIELD WASHER

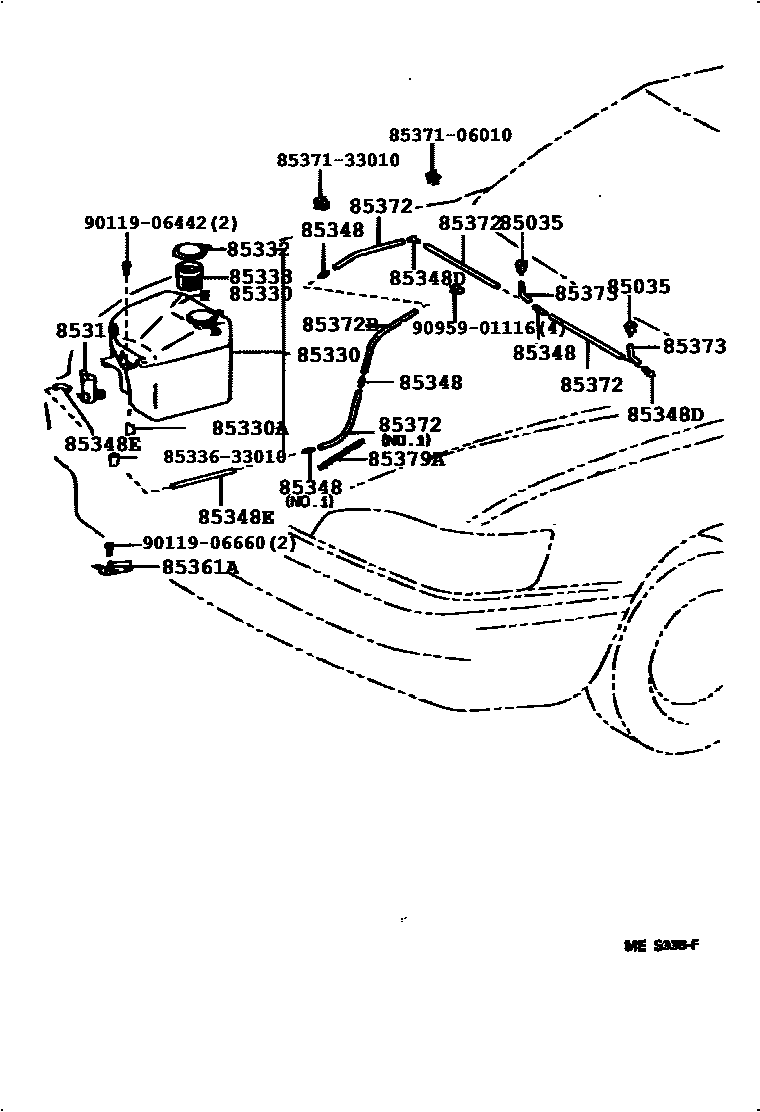

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85385-33020×2i199106-199608
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-20190i199408-199608
*ND
main85330-06030i199408-199608
DELCO
85330JAR ASSY, WINDSHIELD WASHER
main85315-06030i199408-199608
DELCO
main85315-33070i199106-199308
main85315-33120i199308-199408
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i199106-199608
85332CAP, WINDSHIELD WASHER JAR
main85316-06020i199408-199608
DELCO
main85316-22190i199208-199308
main85316-33010i199106-199208
main85316-33120i199308-199408
85333FILTER, WINDSHIELD WASHER JAR
main85312-33010i199106-199308
main85333-03010i199408-199608
DELCO
main85333-12470i199308-199408
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22470i199308-199408
main85334-22480i199106-199308
NO.1
main85355-20200i199408-199608
main85378-33030i199106-199308
NO.3
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85376-10250i199106-199308
RH
main85377-33030i199106-199308
LH
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85317-20350i199308-199408
main85355-16192i199408-199608
main90099-33729i199106-199308
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85361-33010i199106-199308
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33075i199106-199308
L=1100,NO.1
main90099-33080i199106-199308
L=1450,NO.3,NO.4,NO.2
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33192i199106-199308
L=1060
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2i199106-199608
L=1450
85379ASPRING, WINDSHIELD WASHER HOSE
main85375-33030i199212-199308
main85379-33030i199106-199212
8533633010SWITCH ASSY, RESERVE TANK LEVEL WARNING
main85336-33010
8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-06010
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9011906442
main90119-06442
9011906660
main90119-06660
9095901116
main90959-01116

20 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CAMRY (JPP)

This section contains 26 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
