Toyota CAMRY (JPP) — SWITCH & RELAY & COMPUTER

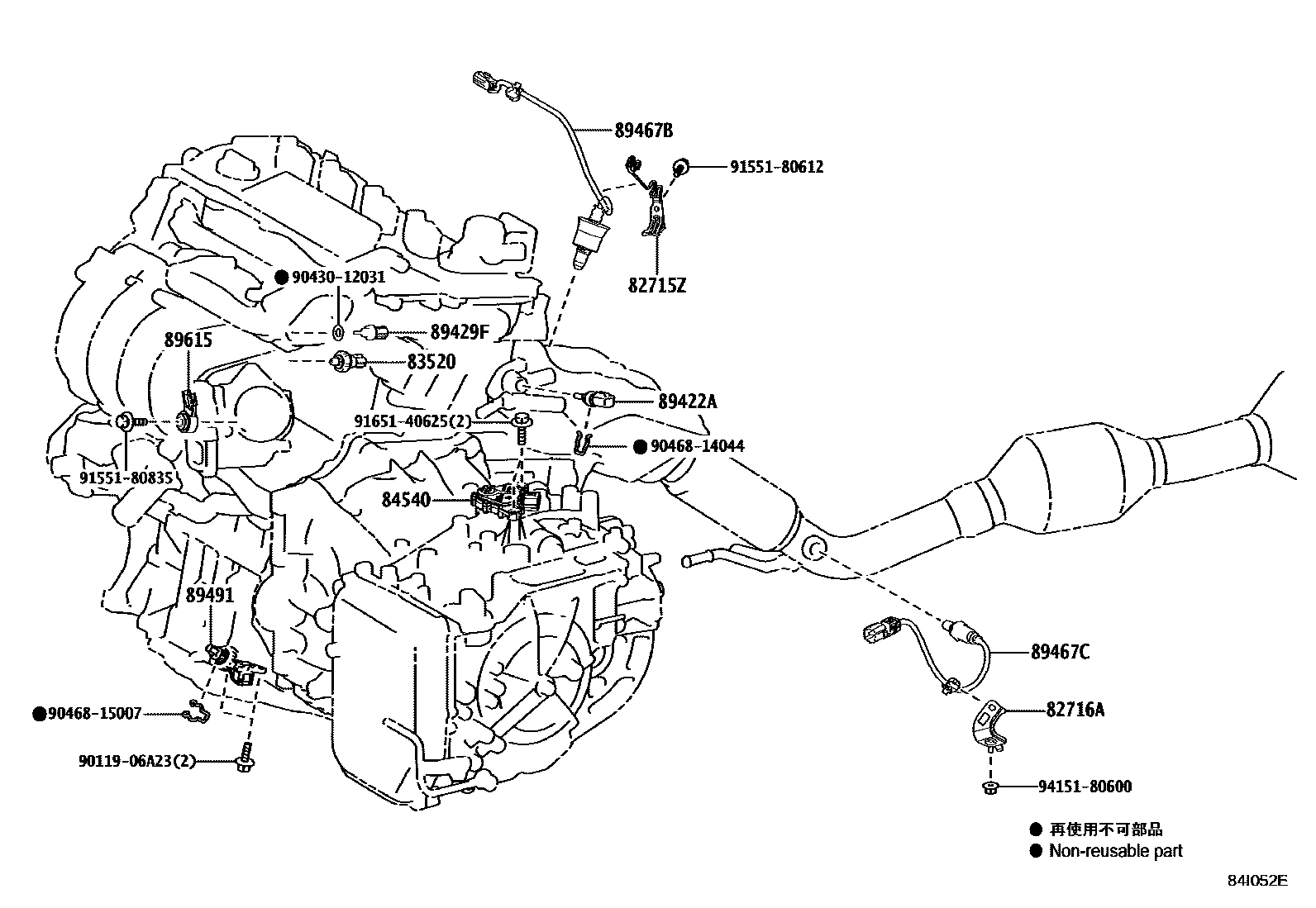

Parts diagram

82715BRACKET,WIRING HARNESS CLAMP

main82715-33Q20i201703-201811

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-33K10i201703-201706

main82715-33K11i201707-201811

82716ABRACKET, WIRING HARNESS CLAMP

main82715-33K30i201703-201811

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-33010i201703-201811

84540SWITCH ASSY, NEUTRAL START

main84540-33020i201703-201811

89422ASENSOR, WATER TEMPERATURE

main89422-33040i201703-201811

89429FSENSOR, TEMPERATURE

main89429-12010i201703-201811

89467BSENSOR, AIR FUEL RATIO

main89467-33290i201703-201811

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-33210i201703-201811

89491SENSOR, ENGINE OIL LEVEL

main89491-33050i201703-201805

main89491-33051i201806-201811

89615SENSOR, KNOCK CONTROL

main89615-20090i201703-201811

9011906A23

main90119-06A23

9043012031

main90430-12031

9046814044

main90468-14044

9046815007

main90468-15007

9155180612

main91551-80612

9155180835

main91551-80835

9165140625

main91651-40625

9415180600

main94151-80600

19 parts on this diagram · 7 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota CAMRY (JPP)

This section contains 109 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CAMRY (JPP). Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.2, FRONT SEAT & SEAT TRACK, INSTRUMENT PANEL FUSIBLE LINK, ENGINE ROOM FUSIBLE LINK.
