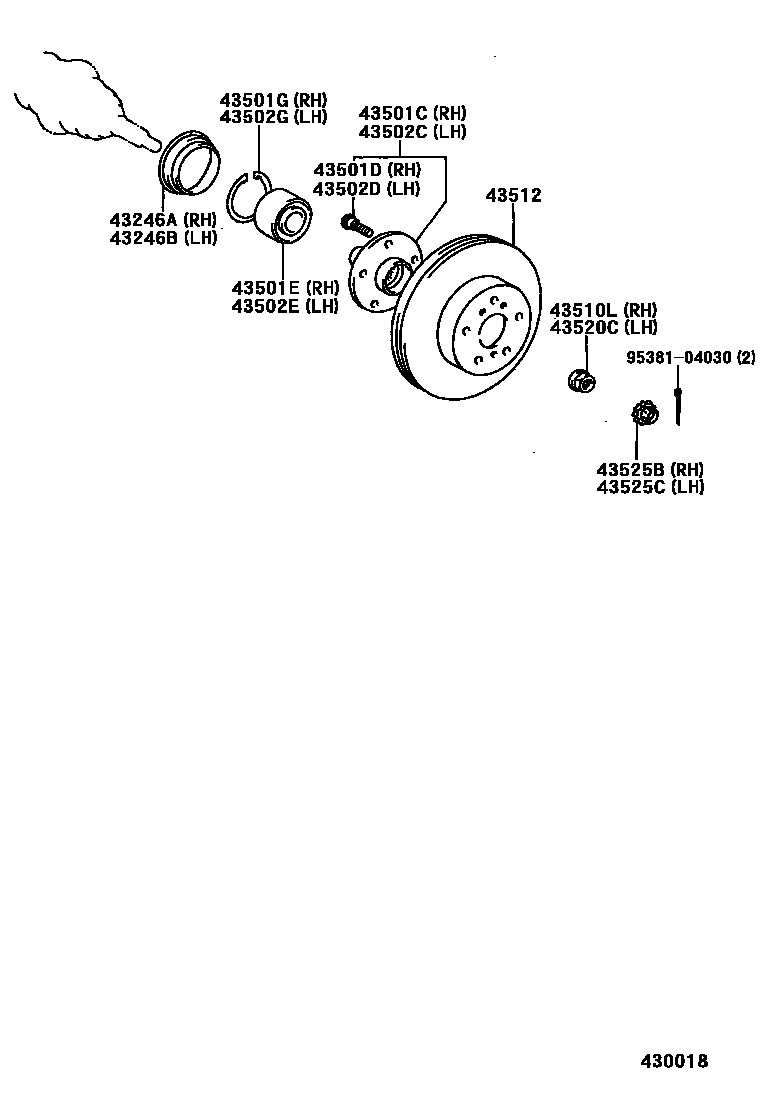

Toyota CAMRY (JPP) — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-17020i199805-199809

main43246-32020i199608

W(ABS)

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-17020i199809

main43246-32020i199608

W(ABS)

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32070i199608-199908

main43502-33010i199608-200102

main43502-33030i200102

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i199608-199908

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43008i199908

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001i199608-199908

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32070i199908

main43502-33010i199608-200102

main43502-33030i200102

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i199608-199908

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43008i199608-199908

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001i199608-199908

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001i199908

main90179-22020i199608-199805

43512DISC, FRONT

main43512-33020×2i199908-200008

W(14INCHES DISC BRAKE)

main43512-33040×2i199608-199709

main43512-33041×2i199709-199908

main43512-33042×2i199908-200008

W(15INCHES DISC BRAKE)

main43512-33080×2i200008

W(15INCHES DISC BRAKE)

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001i199805-199808

main90179-22020i199808-199908

W(ABS)

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i199608

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i199608

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CAMRY (JPP)

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CAMRY (JPP). Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
