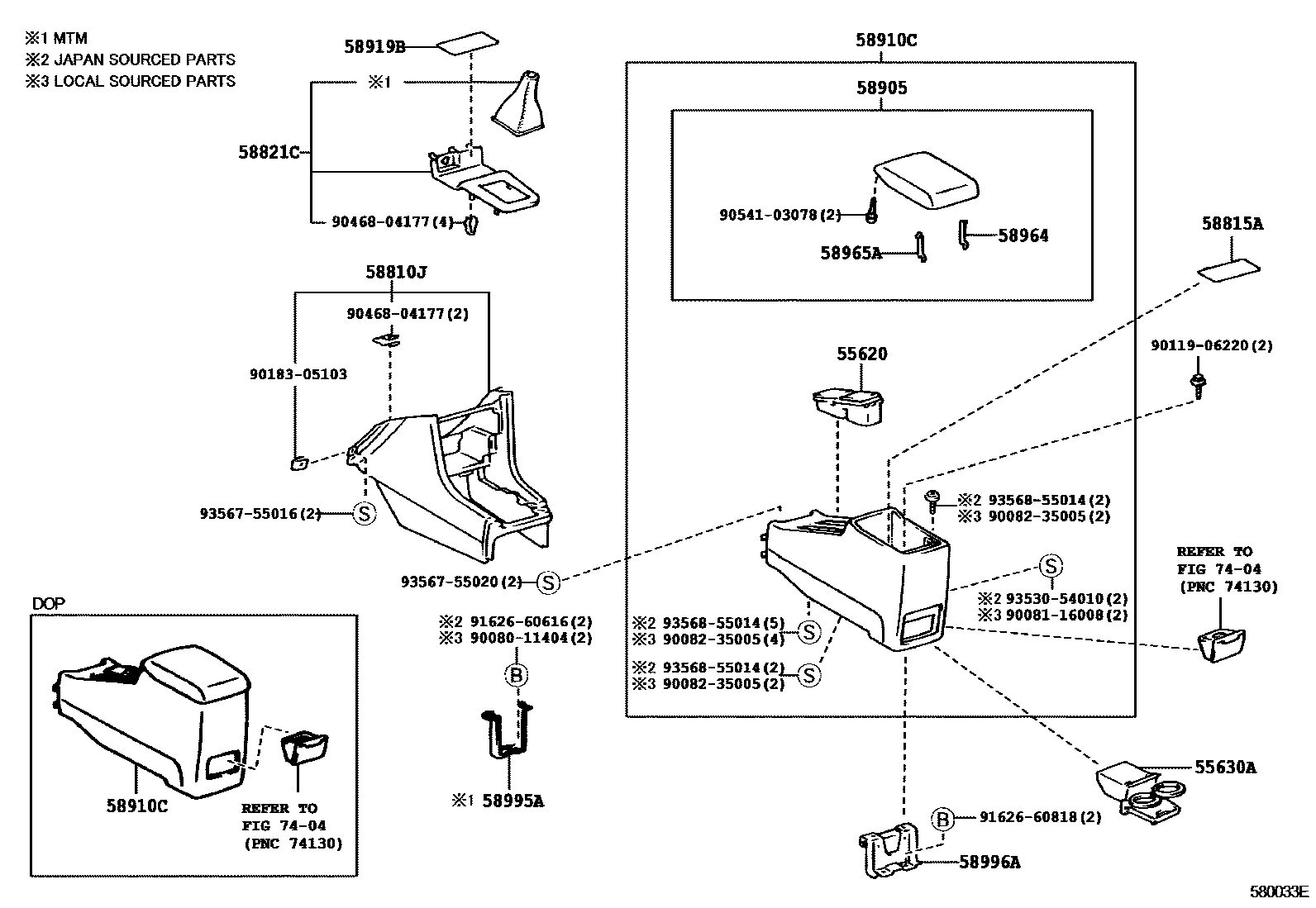

Toyota CAMRY (JPP) — CONSOLE BOX & BRACKET

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-33050-B0iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main55620-33050-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main55620-33050-G0iMCV20,SXV20..JPP199608

DK.SAGE,TRIM6#

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-33010-B0iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main55630-33010-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main55630-33010-G0iMCV20,SXV20..JPP199608

DK.SAGE,TRIM6#

58810JBOX ASSY, CONSOLE

main58810-33040-B0iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main58810-33040-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main58810-33040-G0iMCV20,SXV20..JPP199708

DK.SAGE,TRIM6#

58815ACARPET, CONSOLE BOX

main58815-33060iMCV20,SXV2#..JPP199908

58821CPANEL, CONSOLE, UPPER

main58804-33100iMCV20,SXV2#..JPP..ATM..(CE,LE)199908

main58804-33110-B0iSXV20..JPP..MTM199808

BLUISH GRAY,TRIM1#

main58804-33110-E0iSXV20..JPP..MTM199808

OAK,TRIM4#

main58804-33110-G0iSXV20..JPP..MTM199808

DK.SAGE,TRIM6#

main58804-33230iMCV20,SXV20..JPP..XLE199908

main58804-33260iMCV20,SXV20..JPP..LE..USA200008

CARBON GRAIN PANEL

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-33090-B0iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main58905-33090-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main58905-33090-G0iMCV20,SXV20..JPP199608

DK.SAGE,TRIM6#

58910CBOX ASSY, CONSOLE, REAR

main58910-33090-B0iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main58910-33090-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main58910-33090-G0iMCV20,SXV20..JPP199608

DK.SAGE,TRIM6#

main58910-33100-B0iMCV20,SXV20..JPP..(LE,XLE)..CND200008

W(SEAT HEATER),BLUISH GRAY,TRIM1#

main58910-33100-E0iMCV20,SXV20..JPP..(LE,XLE)..CND200008

W(SEAT HEATER),OAK,TRIM4#

58919BPLATE, CONSOLE BOX

main58919-33020iMCV20,SXV20..JPP..XLE199908-200008

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-16010iMCV20,SXV20..JPP199608-199908

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-16010iMCV20,SXV20..JPP199608-199908

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-33020iSXV20..JPP..MTM199808

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-33020iMCV20,SXV20..JPP199608-199908

7404

9008011404

main90080-11404

9008116008

main90081-16008

9008235005

main90082-35005

9011906220

main90119-06220

9018305103

main90183-05103

9046804177

main90468-04177

9054103078

main90541-03078

9162660616

main91626-60616

9162660818

main91626-60818

9353054010

main93530-54010

9356755016

main93567-55016

9356755020

main93567-55020

9356855014

main93568-55014

26 parts on this diagram · 1 diagram in section
