Toyota CAMRY (JPP) — CLUTCH & RELEASE FORK

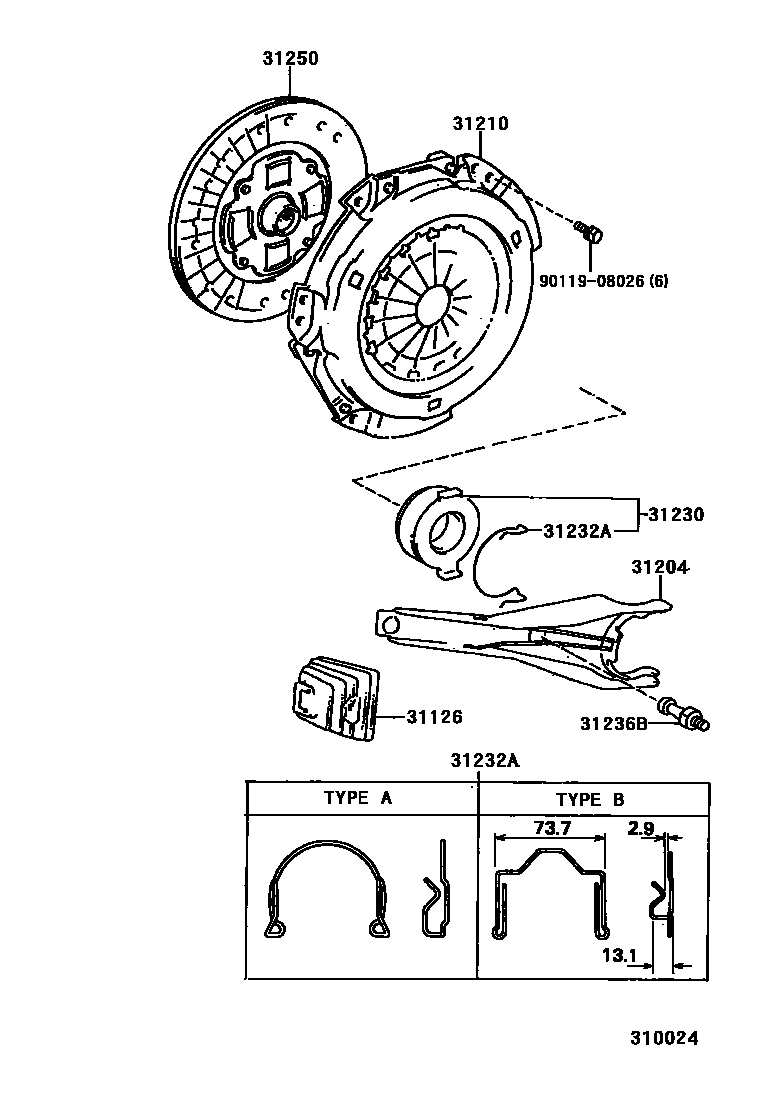

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-32010i199808
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-20100i199808
31210COVER ASSY, CLUTCH
main31210-32130i199808
31230BEARING ASSY, CLUTCH RELEASE
main31230-32060i199808
31232ACLIP, RELEASE BEARING HUB
main31232-20020i199808
TYPE A:REFER TO ILLUSTRATION
main31232-32050i199808
TYPE B:REFER TO ILLUSTRATION
31236BSUPPORT, RELEASE FORK
main31236-32010i199808
31250DISC ASSY, CLUTCH
main31250-20250i199808-199812
main31250-20251i199812
9011908026
main90119-08026

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota CAMRY (JPP)

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CAMRY (JPP). Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
