Toyota CAMRY (JPP) — ACCELERATOR LINK

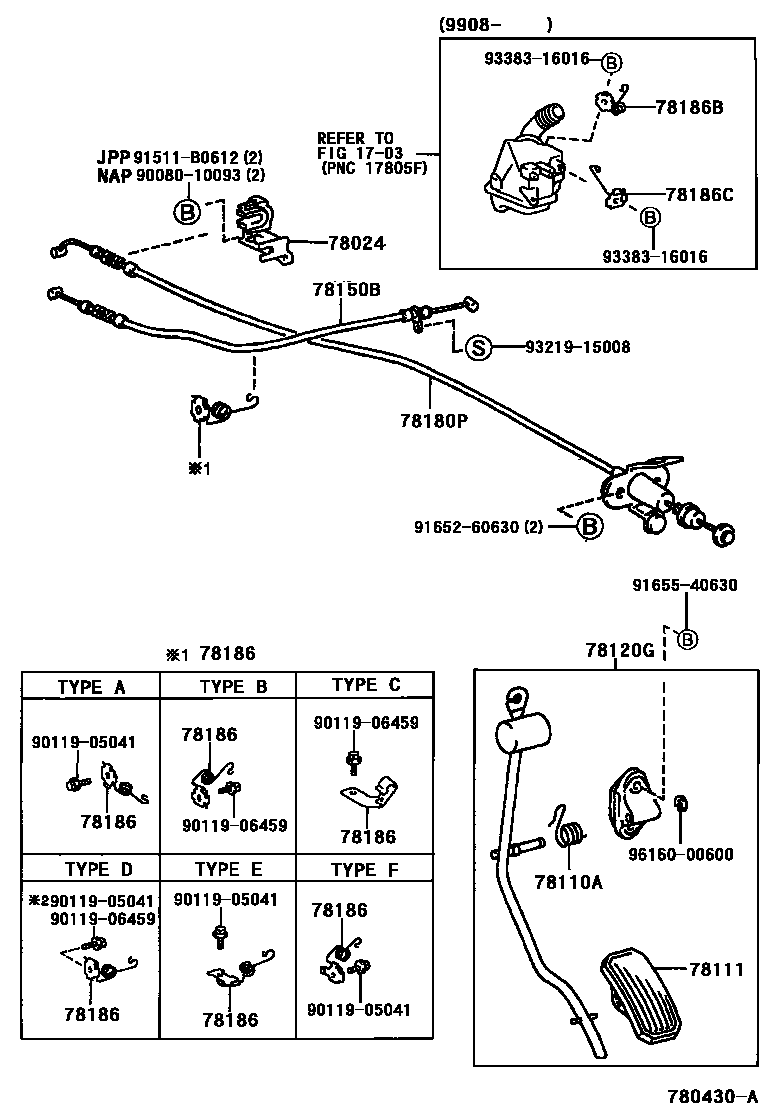

Parts diagram

1703AIR CLEANER

→ Go to FIG 17-03

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-33030i199908-200008

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26062i199808

main90959-03120i199608-199908

78111PEDAL, ACCELERATOR

main78111-33010i199908

78120GROD ASSY, ACCELERATOR PEDAL

main78120-33060i199608-199908

main78120-33070i199808

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-33070i199608-199908

main78150-33080i199608

main78150-33110i199908

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-33190i199608-199908

W(CRUISE CONTROL)

main78180-33201i199808

main78180-33220i199805

main78180-33240i199608

W(CRUISE CONTROL)

main78180-33270i199805

main78180-33310i199908

W(CRUISE CONTROL)

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-33030i199908

TYPE F:REFER TO ILLUSTRATION

main78186-33040i199805

TYPE B:REFER TO ILLUSTRATION

main78186-33050i199608-199908

TYPE C:REFER TO ILLUSTRATION

main78186-33060i199608-199908

TYPE D:REFER TO ILLUSTRATION

main78186-33080i199805

TYPE E:REFER TO ILLUSTRATION

main78186-33120i199908

78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2

main78186-33090i199908

main78186-33130i199908

78186CSUPPORT, ACCELERATOR CONTROL CABLE NO.3

main78186-33110i199908

9008010093

main90080-10093

9011905041

main90119-05041

9011906459

main90119-06459

91511B0612

main91511-B0612

9165260630

main91652-60630

9165540630

main91655-40630

9321915008

main93219-15008

9338316016

main93383-16016

9616000600

main96160-00600

19 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota CAMRY (JPP)

This section contains 19 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CAMRY (JPP). Key components include: AIR CLEANER, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL.
