Toyota CAMRY (JPP) — FLOOR PAN & LOWER BACK PANEL

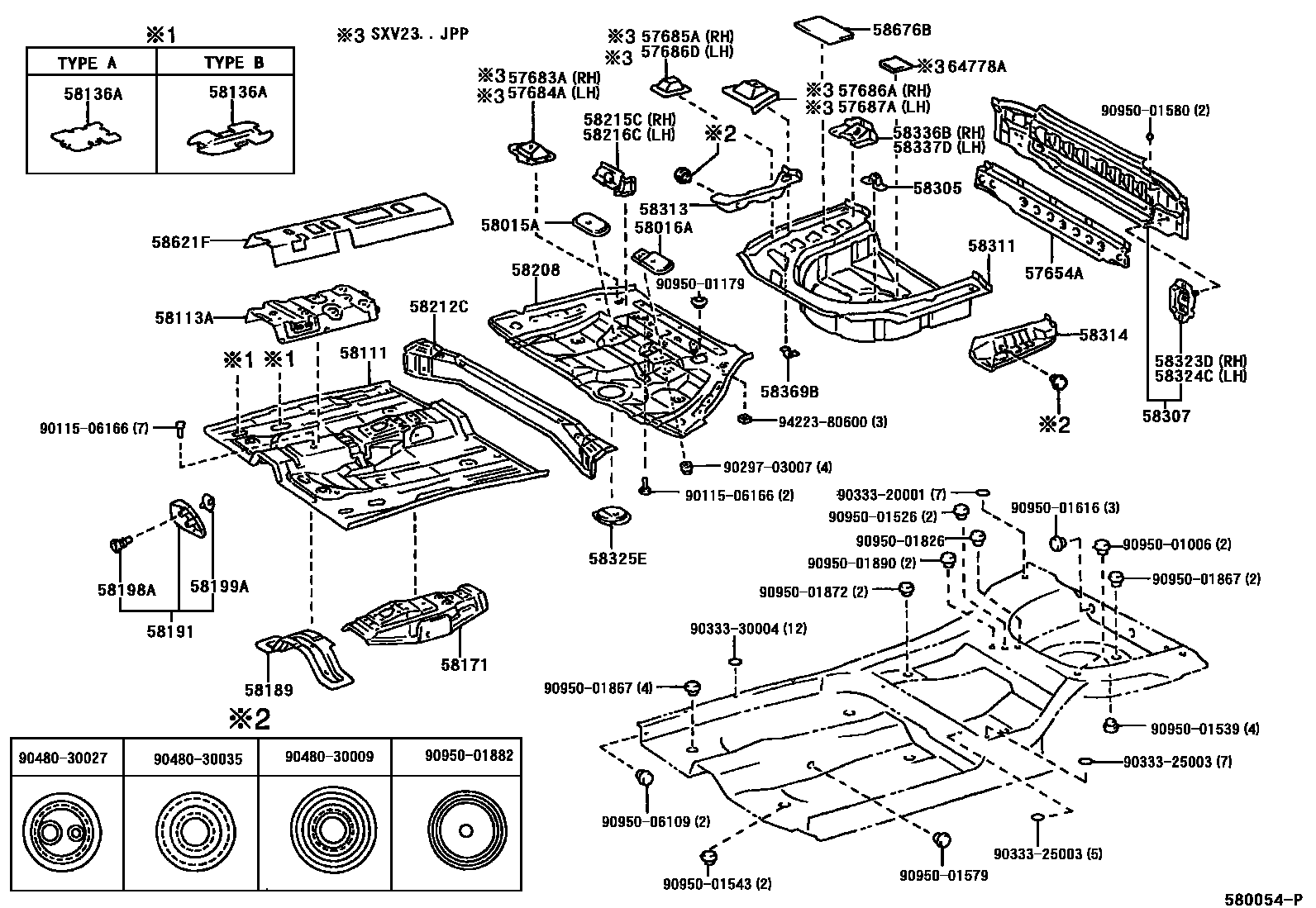

Parts diagram

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57654-33010i199608

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-33030i199908

57684ABRACKET, FUEL TANK MOUNTING, NO.2

main57684-33030i199908

57685ABRACKET, REAR FLOOR MOUNTING, NO.1 RH

main57695-33010i199908

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-33010i199908

57686DBRACKET, REAR FLOOR MOUNTING, NO.1 LH

main57696-33010i199908

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57687-33010i199908

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-33020i199908

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-33030i199608-199908

58111PAN, FRONT FLOOR

main58111-33030i199608-199908

58113APANEL, FRONT FLOOR, CENTER

main58013-33030i199608-199908

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020×2i199908

TYPE A:REFER TO ILLUSTRATION

main58136-33010×2i199608-199908

TYPE B:REFER TO ILLUSTRATION

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-33020i199608-199908

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-33020i199608-199908

58191FOOTREST, FRONT FLOOR

main58192-33020i199608-199908

58198ACLIP, FOOTREST, NO.1

main58198-33010×2i199608-199908

58199ACLIP, FOOTREST, NO.2

main58199-33010×2i199608-199908

58208PAN, CENTER FLOOR

main58211-33060i199608-199708

main58211-33090i199708-199808

main58211-33091i199908

main58211-33100i199808-199810

main58211-33101i199810

58212CPAN, CENTER FLOOR, FRONT

main58212-33010i199608-199908

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-33020i199608

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-33020i199608

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010i199608-199908

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-33070i199608-199908

58311PAN, REAR FLOOR

main58311-33030i199608-200107

main58311-33050i199908-200107

58313PANEL, REAR FLOOR SIDE, RH

main58305-33020i199608-199908

58314PANEL, REAR FLOOR SIDE, LH

main58314-33020i199608-199908

main58314-33021i200103

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-AA010i199608-199908

58324CREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-AA010i199608-199908

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-33020i199608

main58325-33040i199908

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-33010i199608-199908

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-33020i199608-199908

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010×2i199608

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-33030i199608-199908

58676BPAD, REAR FLOOR SILENCER, NO.1 RH

main58676-33010i199608

64778APROTECTOR, SPARE WHEEL

main64778-14020×4i199908

9011506166

main90115-06166

9029703007

main90297-03007

9033320001

main90333-20001

9033325003

main90333-25003

9033330004

main90333-30004

9048030009

main90480-30009

9048030027

main90480-30027

9048030035

main90480-30035

9095001006

main90950-01006

9095001179

main90950-01179

9095001526

main90950-01526

9095001539

main90950-01539

9095001543

main90950-01543

9095001579

main90950-01579

9095001580

main90950-01580

9095001616

main90950-01616

9095001826

main90950-01826

9095001867

main90950-01867

9095001872

main90950-01872

9095001882

main90950-01882

9095001890

main90950-01890

9095006109

main90950-06109

9422380600

main94223-80600

58 parts on this diagram · 1 diagram in section

FLOOR PAN & LOWER BACK PANEL for Toyota CAMRY (JPP)

This section contains 58 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CAMRY (JPP). Key components include: MEMBER, REAR FLOOR CROSS, NO.3, BRACKET, FUEL TANK MOUNTING, NO.1, BRACKET, FUEL TANK MOUNTING, NO.2, BRACKET, REAR FLOOR MOUNTING, NO.1 RH, BRACKET, FUEL TANK MOUNTING, REAR RH.
