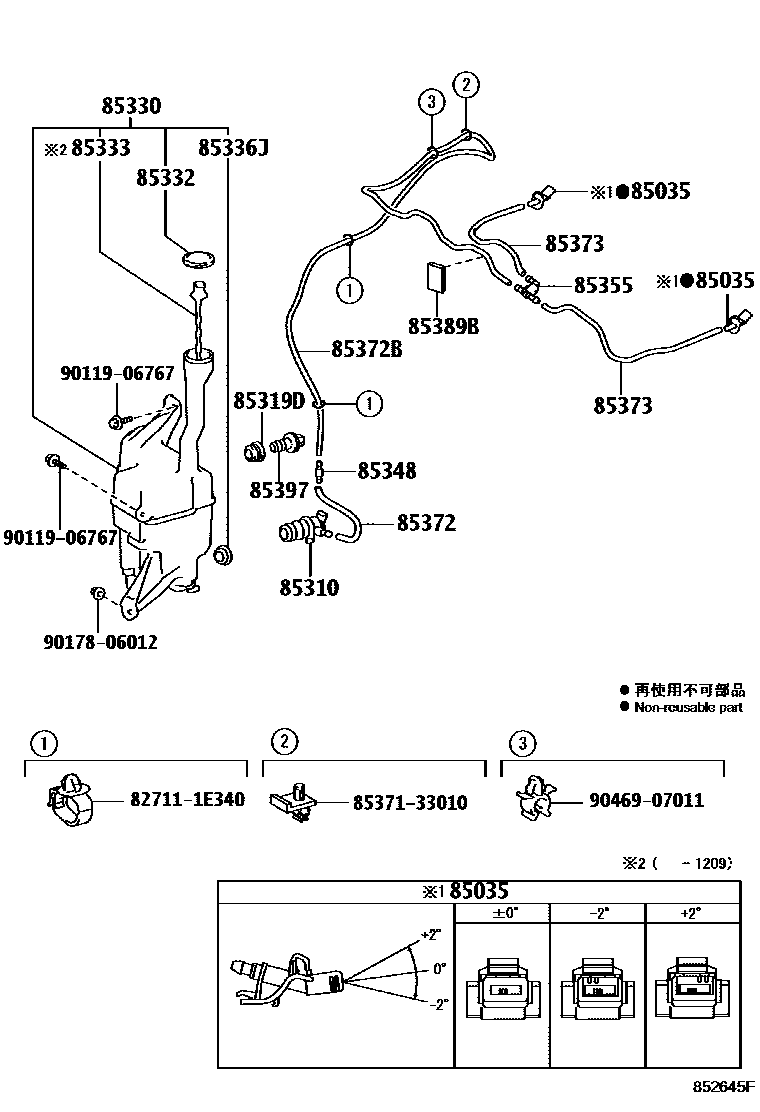

Toyota CAMRY HYBRID — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30150iAVV50201108-201409

main85381-30150iAVV50201409-201704

main85381-30160iAVV50201409-201704

main85381-30160iAVV50201108-201409

main85381-33080iAVV50201108-201704

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iAVV50201108-201704

85319DPACKING, FRONT WASHER

main85319-33230iAVV50201209-201704

85330JAR ASSY, WINDSHIELD WASHER

main85315-33440iAVV50201108-201209

main85315-33490iAVV50201209-201704

85332CAP, WINDSHIELD WASHER JAR

main85316-33320iAVV50201108-201408

main85316-33490iAVV50201408-201704

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020iAVV50201108-201209

85336JPROTECTOR, WASHER JAR

main85336-60300iAVV50201108-201704

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iAVV50201108-201704

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAVV50201108-201704

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62062iAVV50201108-201704

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iAVV50201108-201704

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62061iAVV50201108-201704

85389BPROTECTOR, WINDSHIELD WASHER

main85389-33380iAVV50201311-201704

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iAVV50201209-201704

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906767

main90119-06767

9017806012

main90178-06012

9046907011

main90469-07011

19 parts on this diagram · 1 diagram in section
