Toyota CAMRY HYBRID — REAR SEAT & SEAT TRACK

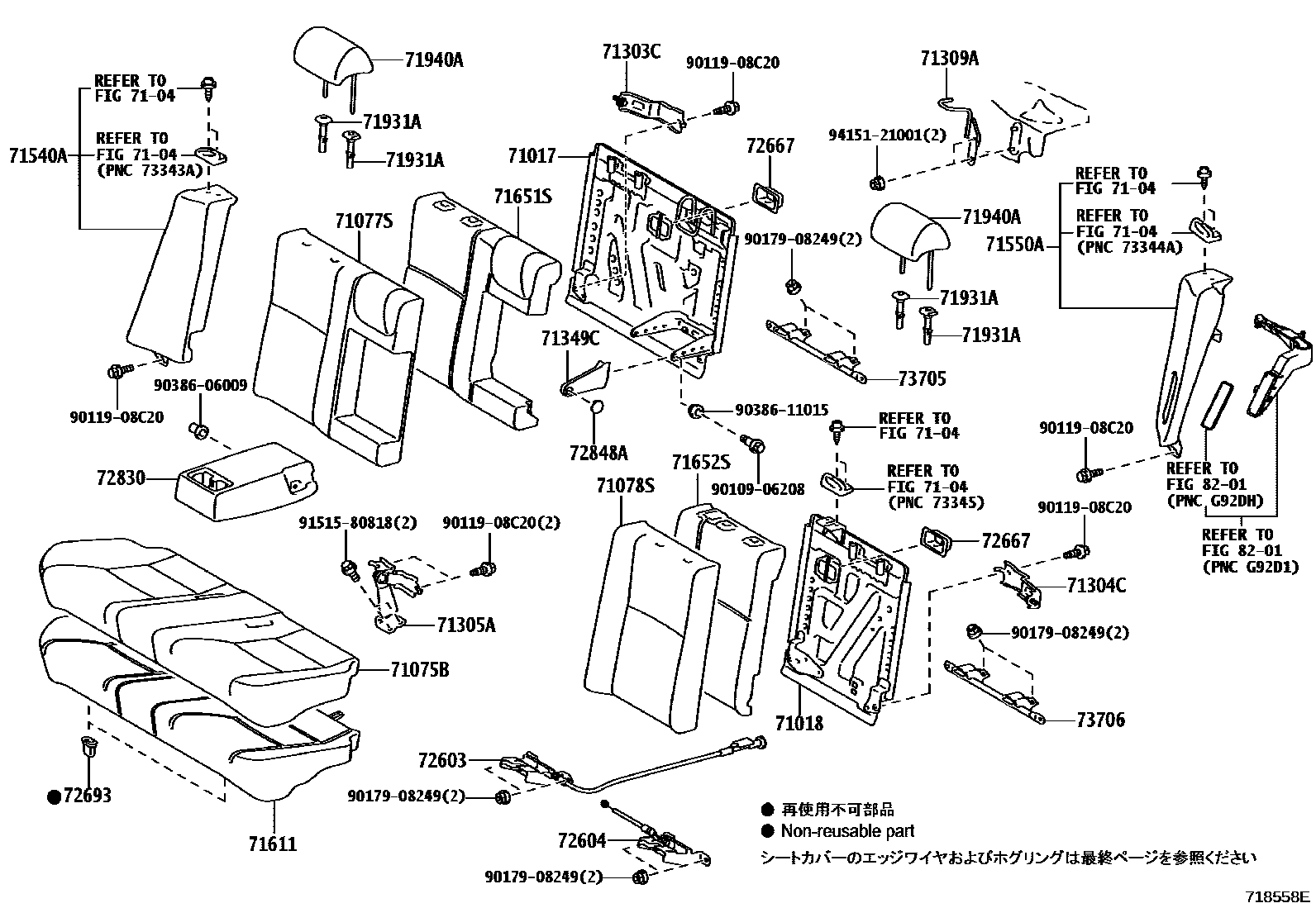

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-33200i201108-201704
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-33130i201108-201704
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-33B50-C1i201108-201409
BLACK,TRIM2#
main71075-33E20-C0i201409-201510
BLACK,TRIM2#
main71075-33E21-C0i201510-201704
BLACK,TRIM2#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-33D30-C2i201108-201409
BLACK,TRIM2#
main71077-33G80-C0i201409-201510
BLACK,TRIM2#
main71077-33G81-C3i201510-201601
BLACK,TRIM2#
sub71077-33G81
main71077-33G81-C4i201601-201704
BLACK,TRIM2#
sub71077-33G81
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-33760-C2i201108-201409
BLACK,TRIM2#
main71078-33820-C0i201409-201510
BLACK,TRIM2#
main71078-33821-C0i201510-201704
BLACK,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-33051i201108-201704
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71303-33051i201108-201704
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-33060i201108-201704
71309ABRACKET SUB-ASSY, REAR SEATBACK HOLDER
main71309-33050i201108-201704
71349CCOVER, REAR SEATBACK HINGE
main71349-33030-C0i201108-201704
BLACK,TRIM2#
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-33450-C1i201108-201409
BLACK,TRIM2#
main71540-33470-C2i201409-201702
BLACK,TRIM2#
main71540-33470-C5i201702-201704
BLACK,TRIM2#
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-33430-C1i201108-201409
BLACK,TRIM2#
main71550-33480-C2i201409-201702
BLACK,TRIM2#
main71550-33480-C5i201702-201704
BLACK,TRIM2#
71611PAD, REAR SEAT CUSHION
main71503-33120i201108-201704
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-33190i201108-201704
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-33110i201108-201704
71931ASUPPORT, REAR SEAT HEADREST
main71930-47020-A0i201309-201409
sub71930-47020
main71930-47020-A7i201409-201704
sub71930-47020
main71930-47020-C0i201108-201704
sub71930-47020
main71931-47020-A0i201309-201409
sub71931-47020
main71931-47020-A7i201409-201704
sub71931-47020
main71931-47020-C0i201108-201704
sub71931-47020
71940AHEADREST ASSY, REAR SEAT
main71940-33C10-C1i201108-201409
BLACK,TRIM2#
main71940-33D60-C0i201409-201704
BLACK,TRIM2#
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72630-33070i201108-201704
sub72630-33071
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72640-33080i201108-201704
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-33010i201108-201704
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i201108-201704
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-33660-C2i201108-201409
BLACK,TRIM2#
main72830-33C30-C2i201409-201505
BLACK,TRIM2#
sub72830-33C30
main72830-33C30-C5i201505-201704
BLACK,TRIM2#
sub72830-33C30
72848ACAP, SEAT ARMREST, NO.1
main72848-33040-C0i201108-201704
BLACK,TRIM2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-33090i201108-201704
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-33090i201108-201704
8201
9010906208
main90109-06208
9011908C20
main90119-08C20
9017908249
main90179-08249
9038606009
main90386-06009
9038611015
main90386-11015
9151580818
main91515-80818
9415121001
main94151-21001

34 parts on this diagram · 3 diagrams in section
