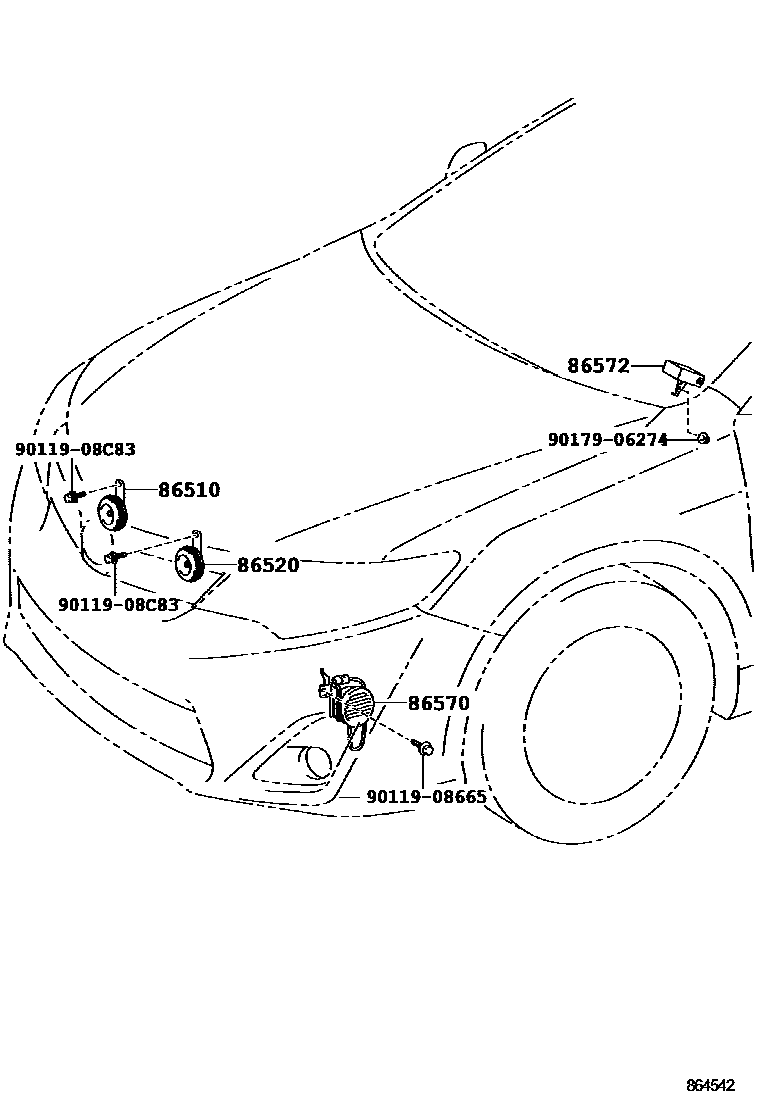

Toyota CAMRY HYBRID — HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-28130iAVV50201108-201704

86520HORN ASSY, LOW PITCHED

main86520-28180iAVV50201108-201704

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-33010iAVV50201108-201409

main86570-33040iAVV50201409-201704

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-33010iAVV50201108-201409

main86572-33050iAVV50201409-201704

9011908665

main90119-08665

9011908C83

main90119-08C83

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section
