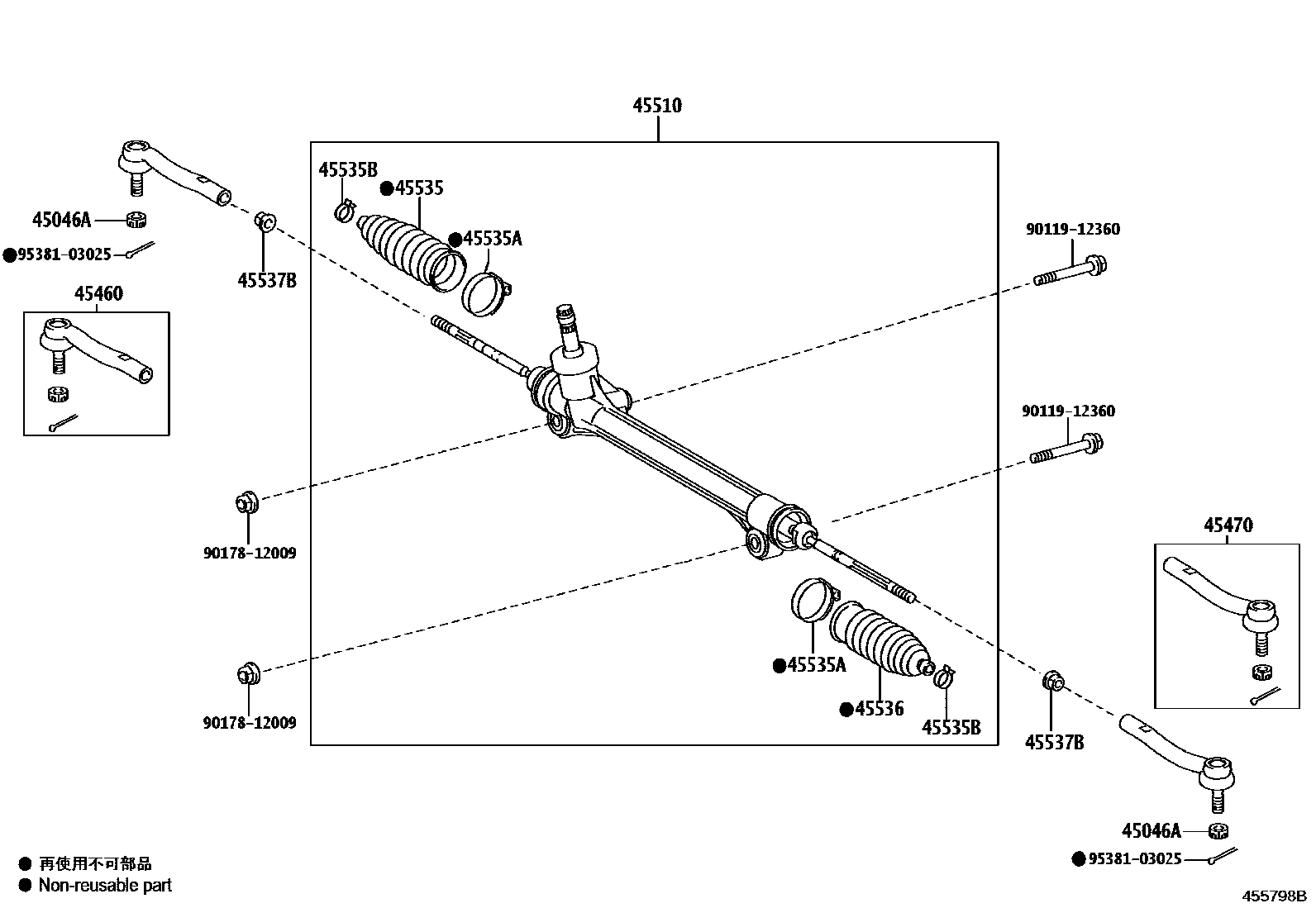

Toyota CAMRY HYBRID — FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAVV50201108-201704

45460ROD ASSY, TIE, RH

main45460-80005iAVV50201108-201704

45470ROD ASSY, TIE, LH

main45470-39345iAVV50201108-201704

45510GEAR ASSY, STEERING

main45510-33041iAVV50201108-201704

45535BOOT, STEERING RACK, NO.1

main45535-39025iAVV50201108-201704

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-33010iAVV50201108-201704

45535BCLIP(FOR STEERING RACK BOOT)

main45537-33010iAVV50201108-201704

45536BOOT, STEERING RACK, NO.2

main45535-39025iAVV50201108-201704

45537BNUT, RACK END LOCK

main90178-15003iAVV50201108-201704

9011912360

main90119-12360

9017812009

main90178-12009

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
