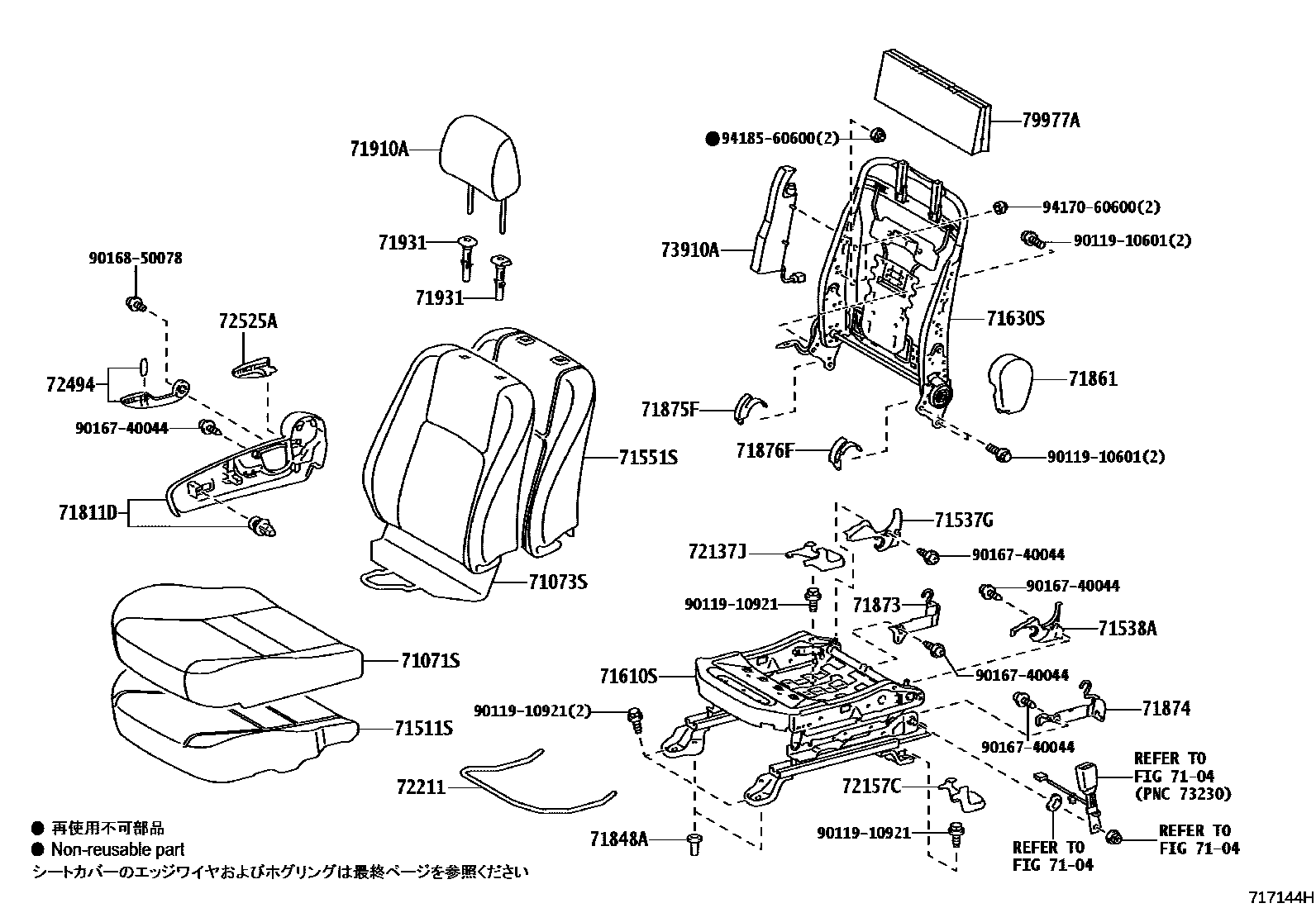

Toyota CAMRY HYBRID — FRONT SEAT & SEAT TRACK
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#
71848ACAP, SEAT ADJUSTER COVER, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
sub71930-47020
sub71930-47020
sub71930-47020
sub71931-47020
sub71931-47020
sub71931-47020
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
BLACK,TRIM0#,2#
72157CCOVER, SEAT TRACK BRACKET, INNER RH
BLACK,TRIM0#,2#
72211HANDLE, SEAT TRACK ADJUSTING
72494HANDLE, VERTICAL ADJUSTING, RH
BLACK,TRIM2#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
79977AFELT, SEATBACK
9011910601
main90119-10601
9011910921
main90119-10921
9016740044
main90167-40044
9016850078
main90168-50078
9417060600
main94170-60600
9418560600
main94185-60600
31 parts on this diagram · 5 diagrams in section
