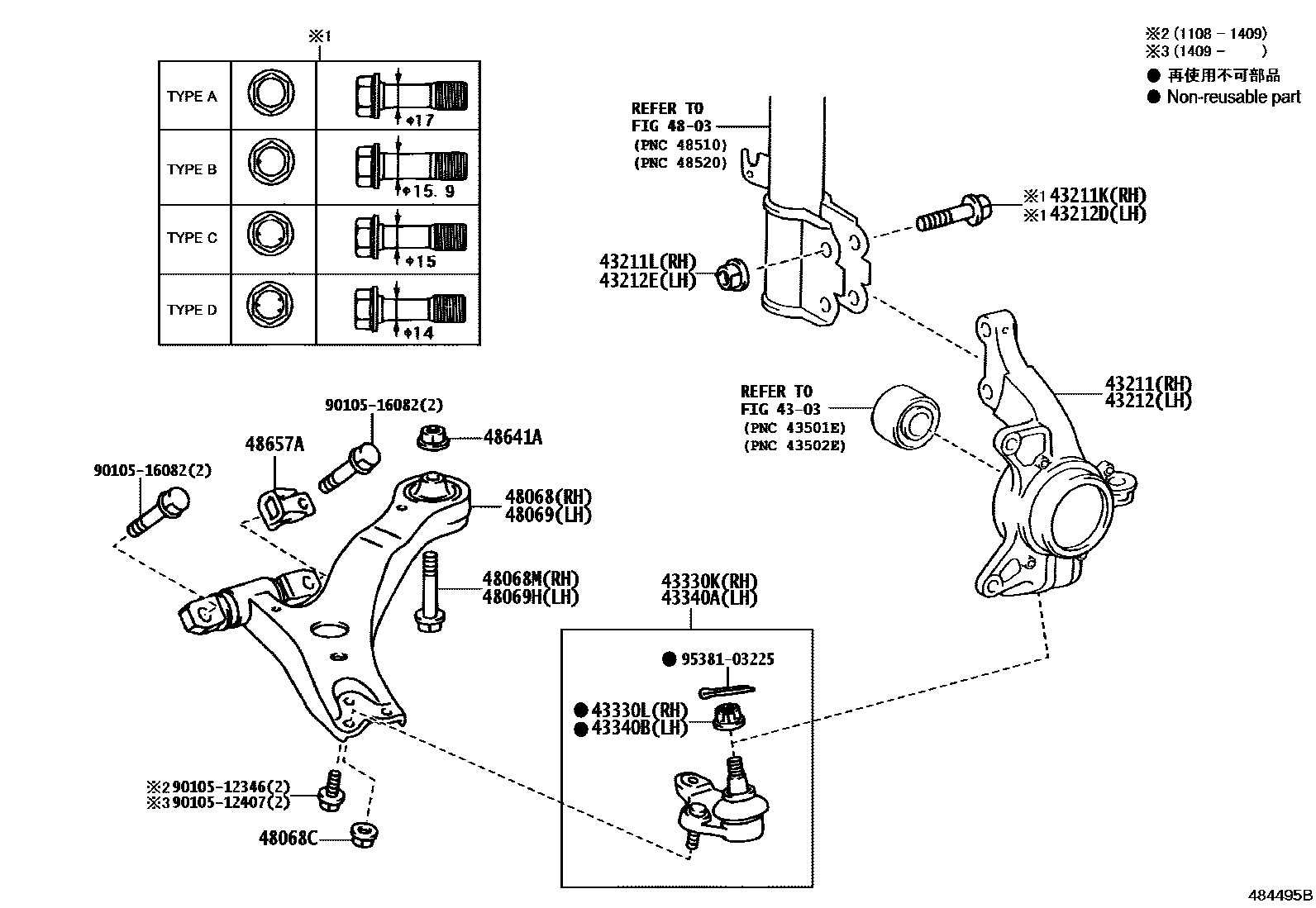

Toyota CAMRY HYBRID — FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-58010iAVV50201108-201704

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iAVV50201108-201704

main90105-17013iAVV50201108-201704

main90105-17014iAVV50201108-201704

main90105-17015iAVV50201108-201704

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iAVV50201108-201704

43212KNUCKLE, STEERING, LH

main43212-58010iAVV50201108-201704

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iAVV50201108-201704

main90105-17013iAVV50201108-201704

main90105-17014iAVV50201108-201704

main90105-17015iAVV50201108-201704

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iAVV50201108-201704

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39845iAVV50201108-201704

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAVV50201108-201704

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39605iAVV50201108-201704

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAVV50201108-201704

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33070iAVV50201108-201704

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12015iAVV50201108-201704

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14146iAVV50201108-201704

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33070iAVV50201108-201704

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14146iAVV50201108-201704

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iAVV50201108-201704

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iAVV50201108-201704

9010512346

main90105-12346

9010512407

main90105-12407

9010516082

main90105-16082

9538103225

main95381-03225

23 parts on this diagram · 1 diagram in section
