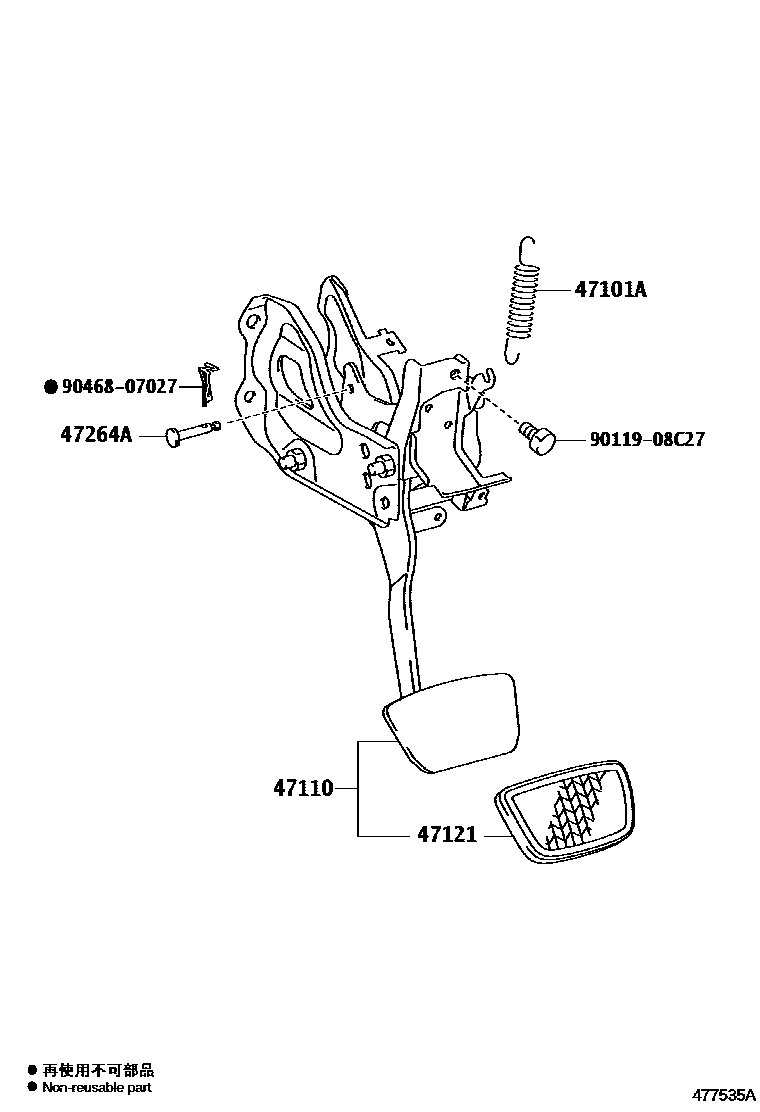

Toyota CAMRY HYBRID — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAVV50201108-201704

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33460iAVV50201108-201201

sub47110-33461

main47110-33461iAVV50201202-201704

47121PAD, BRAKE PEDAL

main47121-50020iAVV50201108-201704

47264APIN(FOR PUSH ROD)

main90240-08081iAVV50201108-201704

9011908C27

main90119-08C27

9046807027

main90468-07027

6 parts on this diagram · 1 diagram in section
