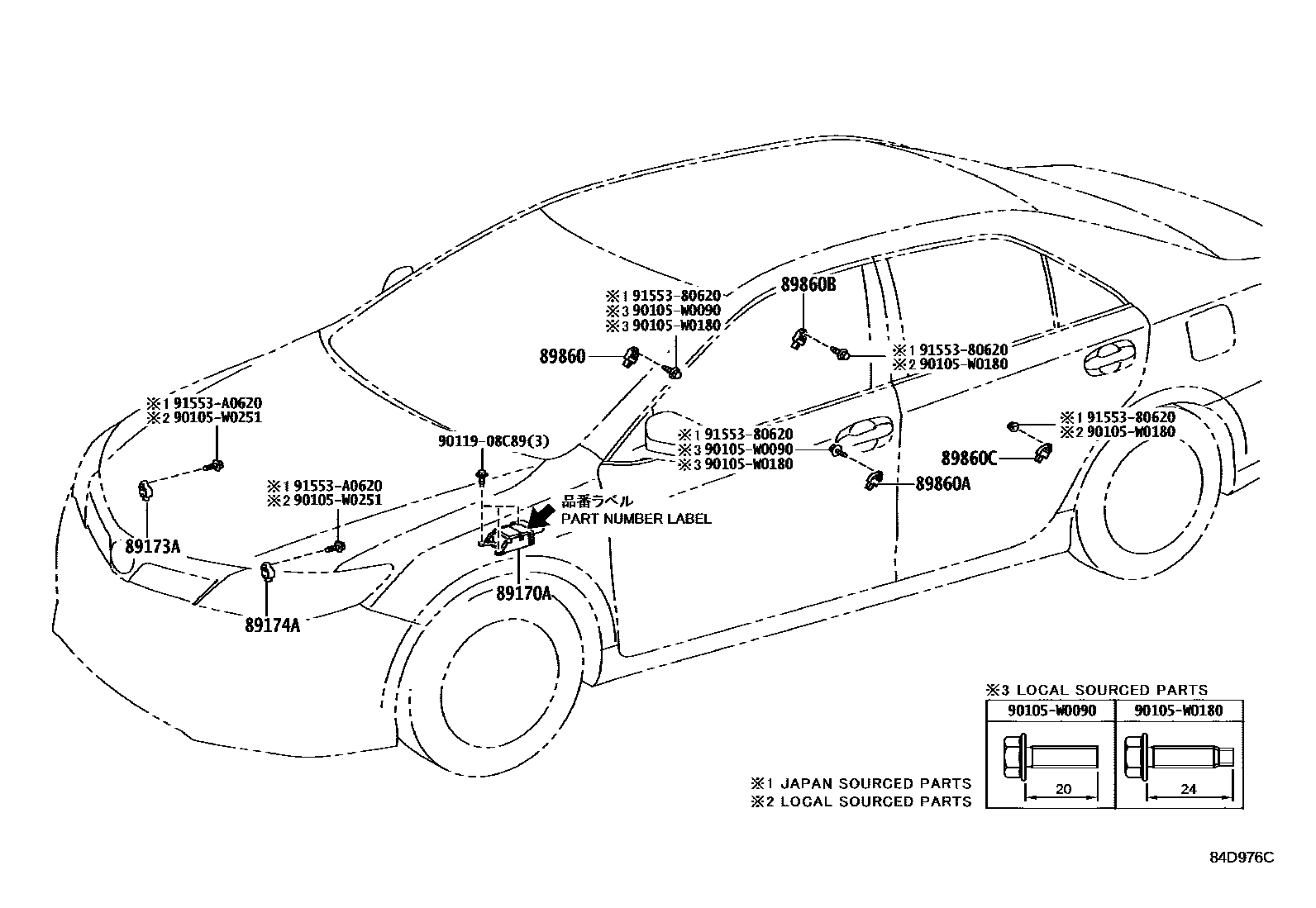

Toyota CAMRY HYBRID — AIR BAG

0001 1 0002 1

89170ACOMPUTER ASSY, AIRBAG

main89170-33590iAVV50201203-201309

main89170-33770iAVV50201108-201203

main89170-33850iAVV50201309-201704

89173ASENSOR, AIRBAG, FRONT RH

main89173-39465iAVV50201203-201409

main89173-39465iAVV50201409-201704

main89173-39475iAVV50201108-201203

89174ASENSOR, AIRBAG, FRONT LH

main89173-39465iAVV50201409-201704

main89173-39465iAVV50201203-201409

main89173-39475iAVV50201108-201203

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-06060iAVV50201409-201704

main89831-06060iAVV50201306-201409

main89831-28020iAVV50201108-201203

main89831-52020iAVV50201203-201409

main89831-52020iAVV50201409-201704

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-06060iAVV50201409-201704

main89831-06060iAVV50201306-201409

main89831-28020iAVV50201108-201203

main89831-52020iAVV50201409-201704

main89831-52020iAVV50201203-201409

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-33040iAVV50201203-201409

main89831-33040iAVV50201409-201704

main89831-33060iAVV50201108-201203

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-33040iAVV50201203-201409

main89831-33040iAVV50201409-201704

main89831-33060iAVV50201108-201203

90105W0090

main90105-W0090

90105W0180

main90105-W0180

90105W0251

main90105-W0251

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0620

main91553-A0620

13 parts on this diagram · 2 diagrams in section
