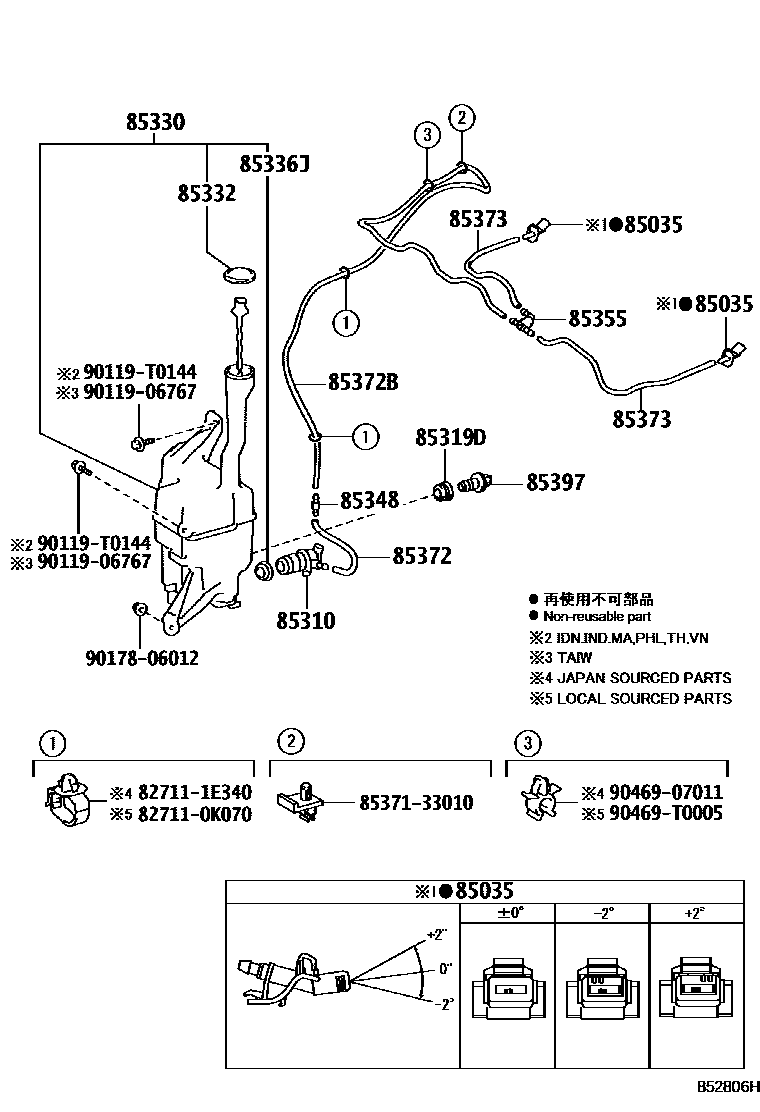

Toyota CAMRY/HYBRID (ASIA) — WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0008 1W(HEADLAMP CLEANER) 0010 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-30150iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

ANGLE +2

main85381-30150iACV51,ASV50;AVV50..IND,TAIW,TH201112-201504

ANGLE +2,ANGLE +2

main85381-30150iASV51,AVV50..TAIW201503-202007

main85381-30160iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201502-201903

ANGLE -2

main85381-30160iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

ANGLE -2,ANGLE -2

main85381-33080iASV5#,AVV50..IDN,IND,MA,PHL,TH,VN201203-201903

ANGLE 0

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D100iAVV50..RHD;ASV50..E..PHL;ASV5#..IDN,TH,VN201203-201903

main85330-21010iACV51,ASV50,AVV50..TAIW201112-202007

sub85330-0D100

main85330-71020iASV5#..IND,MA201205-201811

85319DPACKING, FRONT WASHER

main85319-33230iAVV50..IND,TAIW,TH;ACV51,ASV50..IDN,PHL,TAIW,TH,VN201112-202007

85330JAR ASSY, WINDSHIELD WASHER

main85315-06270iASV50..G..PHL201203-201903

main85315-06280iACV51,ASV50,AVV50..TAIW201112-202007

main85355-33170iACV51,ASV50..IND,MA201205-201504

main85355-33190iASV50..G..PHL201503-201811

85332CAP, WINDSHIELD WASHER JAR

main85316-06270iAVV50..RHD;ASV50..E..PHL;ASV5#..IDN,TH,VN201602-201903

main85316-33320iASV50..G..PHL201205-201811

main85386-60050iAVV50..RHD;ASV5#..IDN,PHL,TH,VN201112-202007

85336JPROTECTOR, WASHER JAR

main85336-0K020iAVV50..RHD;ASV5#..IDN,PHL,TH,VN201203-201602

main85336-60300iAVV50..TAIW;ASV5#..IND,MA,TAIW201112-202007

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-06101iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

main85375-10260iACV51,ASV50,AVV50..TAIW201112-202007

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33107iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

L=50

main90099-62062iACV51,ASV50,AVV50..TAIW201112-202007

L=50

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59103iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

L=2230

main90099-33589iACV51,ASV50,AVV50..TAIW201112-202007

L=3300(*H,L=2290)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33182iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201903

L=465

main90099-62061iASV51,AVV50..TAIW201112-202007

L=465

85397SWITCH ASSY,LEVEL WARNING

main85397-33230iAVV50;ASV50..E..PHL;ASV50..IDN,TH,VN;ASV51..TAIW,TH,VN201112-202007

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906767

main90119-06767

90119T0144

main90119-T0144

9017806012

main90178-06012

9046907011

main90469-07011

90469T0005

main90469-T0005

20 parts on this diagram · 3 diagrams in section
