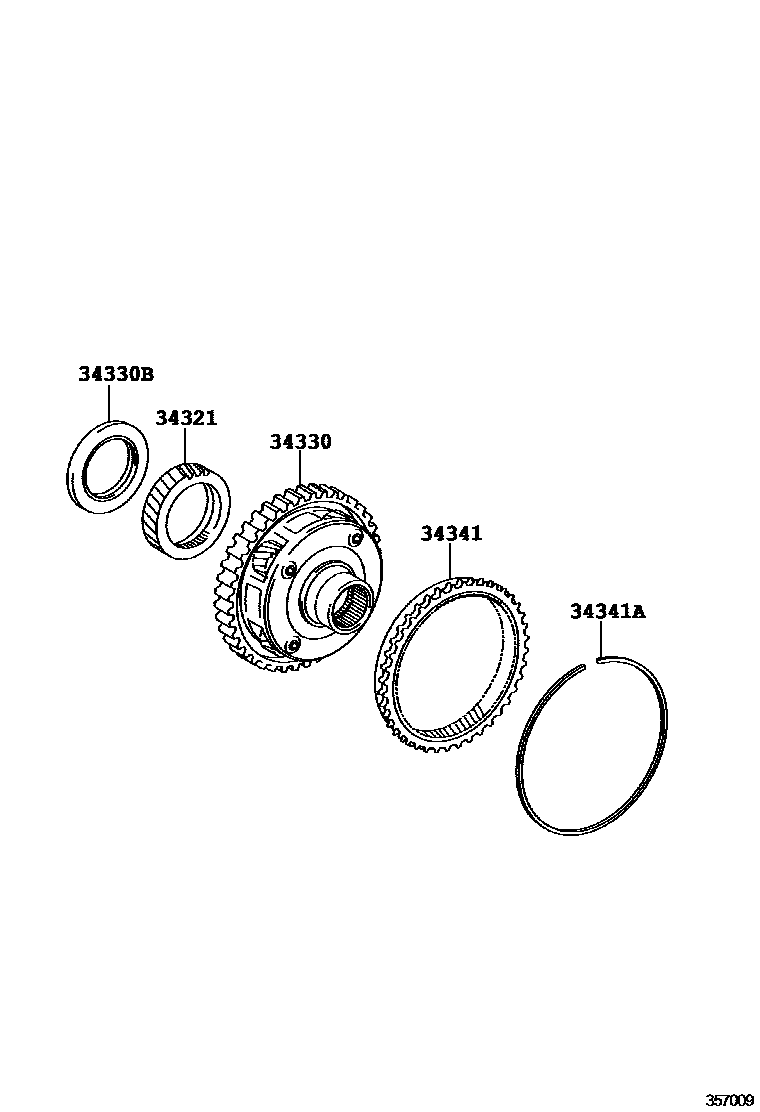

Toyota CAMRY/HYBRID (ASIA) — OVERDRIVE GEAR (ATM)

0001 1U760E 0002 1U241E

34321GEAR, UNDERDRIVE PLANETARY SUN

main34321-73010iASV50201112-202007

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-33030iACV51201112-201504

sub34330-28H01

main34330-33050iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main34330-33050iASV51201502-202007

main34330-73010iASV50..IDN,IND,MA,PHL,TH,VN201112-201811

TRANSAXLE NO.=XXTXXX

sub34330-33050

34330BBEARING, THRUST NEEDLE ROLLER

main90374-57003iASV50201112-201401

main90374-57006iASV51;ASV50..IDN,IND,MA,PHL,TH,VN201401-202007

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-33010iACV51201112-201504

sub34341-28020

sub34341-32011

main34341-33040iASV50201112-201903

TRANSAXLE NO.=XXAXXX

main34341-33040iASV51201502-202007

main34341-33050iASV50201112-201811

TRANSAXLE NO.=XXTXXX

sub34341-33040

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90520-99104iASV50201112-202007

main90521-99121iACV51201112-201504

5 parts on this diagram · 2 diagrams in section
