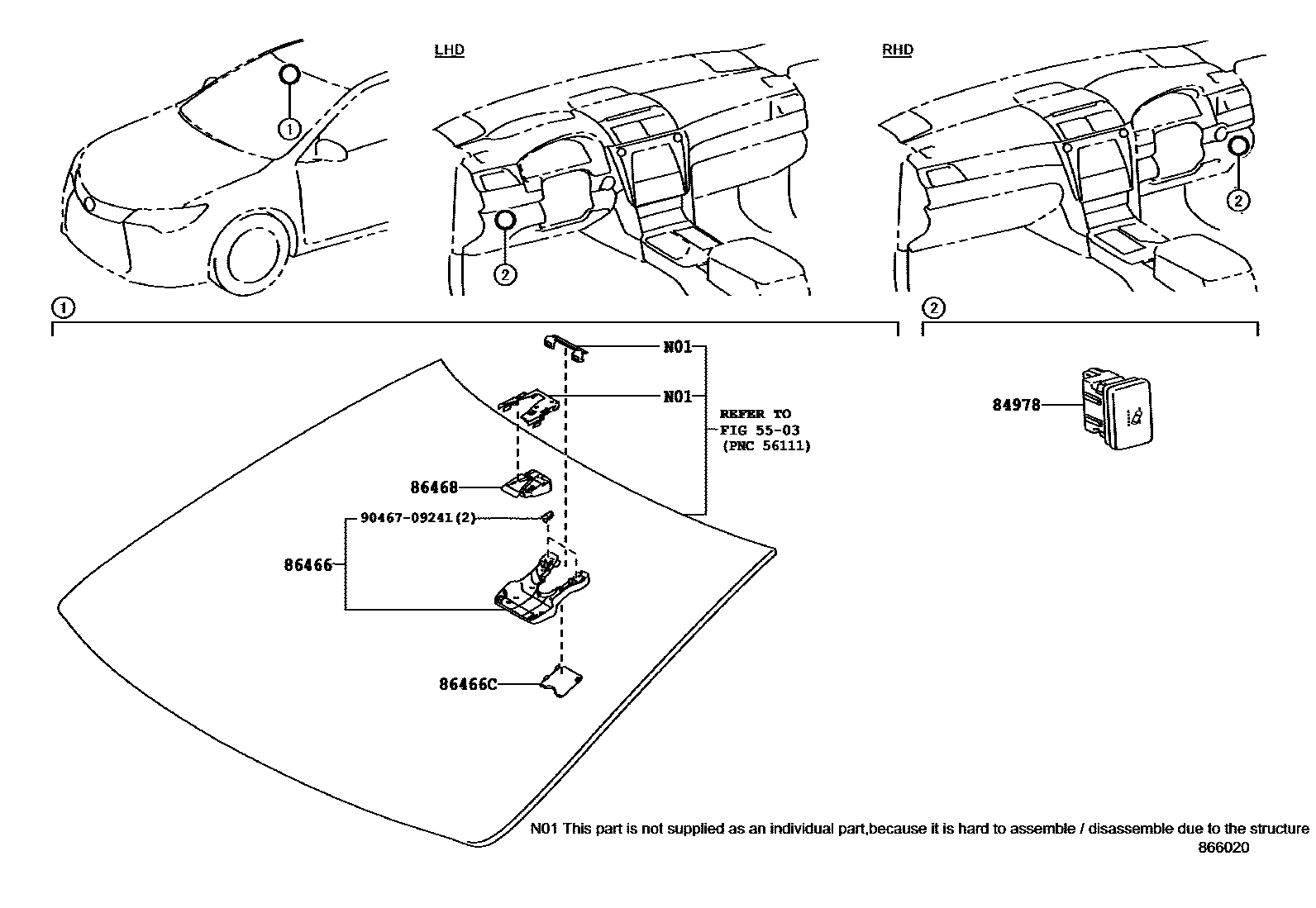

Toyota CAMRY/HYBRID (ASIA) — LANE-KEEPING ASSIST

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

84978SWITCH, LANE-KEEPING ASSIST MAIN

main84978-06021i201502-201809

main84978-33011i201503-201809

86466COVER, LANE DEPARTURE WARNING CAMERA, NO.1

main86466-06010i201502-201809

INDONESIA SPEC

86466CCOVER, LANE DEPARTURE WARNING CAMERA, NO.2

main86466-06020i201502-201809

INDONESIA SPEC

86468CAMERA, LANE DEPARTURE WARNING

main86468-33020i201502-201809

INDONESIA SPEC

9046709241

main90467-09241

6 parts on this diagram · 1 diagram in section

LANE-KEEPING ASSIST for Toyota CAMRY/HYBRID (ASIA)

This section contains 6 genuine Toyota parts for the LANE-KEEPING ASSIST system of the Toyota CAMRY/HYBRID (ASIA). Key components include: COWL PANEL & WINDSHIELD GLASS, SWITCH, LANE-KEEPING ASSIST MAIN, COVER, LANE DEPARTURE WARNING CAMERA, NO.1, COVER, LANE DEPARTURE WARNING CAMERA, NO.2, CAMERA, LANE DEPARTURE WARNING.
