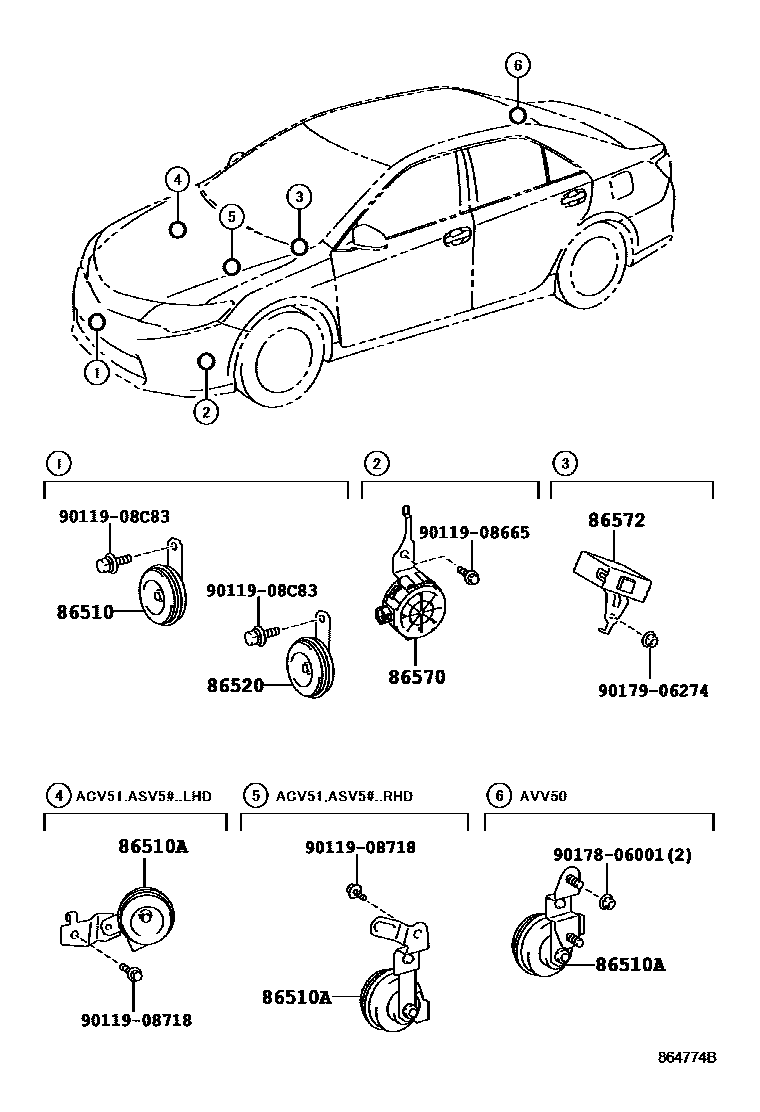

Toyota CAMRY/HYBRID (ASIA) — HORN

86510HORN ASSY, HIGH PITCHED

main86510-02080iACV51,ASV50,AVV50..TAIW201305-202007

main86510-06041iACV51,ASV50,AVV50..TAIW201112-201305

main86510-06140iASV5#,AVV50..IDN,MA,PHL,TH201203-201809

main86510-12610iACV51,ASV50..VN201207-201903

main86510-33210iASV50,AVV50..IND201207-201811

sub86510-42090

86510AHORN ASSY, SECURITY

main86560-06120iASV5#..PHL,VN201203-201903

main86560-06150iASV5#..IDN,TH201203-201809

main86560-06160iAVV50..TH;AVV50..G..TAIW201202-201809

main86560-06180iASV51..TAIW201112-202007

main86560-06190iASV50..IND201510-201811

main86560-06200iAVV50..IND201510-201811

main86560-33020iASV50..IND201503-201809

main86560-33050iAVV50..IND201504-201509

86520HORN ASSY, LOW PITCHED

main86520-02030iACV51,ASV50,AVV50..TAIW201112-201305

main86520-02210iACV51,ASV50,AVV50..TAIW201305-202007

main86520-06130iASV5#,AVV50..IDN,MA,PHL,TH201203-201809

main86520-12690iASV5#..VN201207-201903

main86520-33150iASV50,AVV50..IND201207-201811

sub86520-42130

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-33040iAVV50..TAIW201604-201809

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-33050iAVV50..TAIW201604-201809

9011908665

main90119-08665

9011908718

main90119-08718

9011908C83

main90119-08C83

9017806001

main90178-06001

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
