Toyota CAMRY/HYBRID (ASIA) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0004 1 0008 1

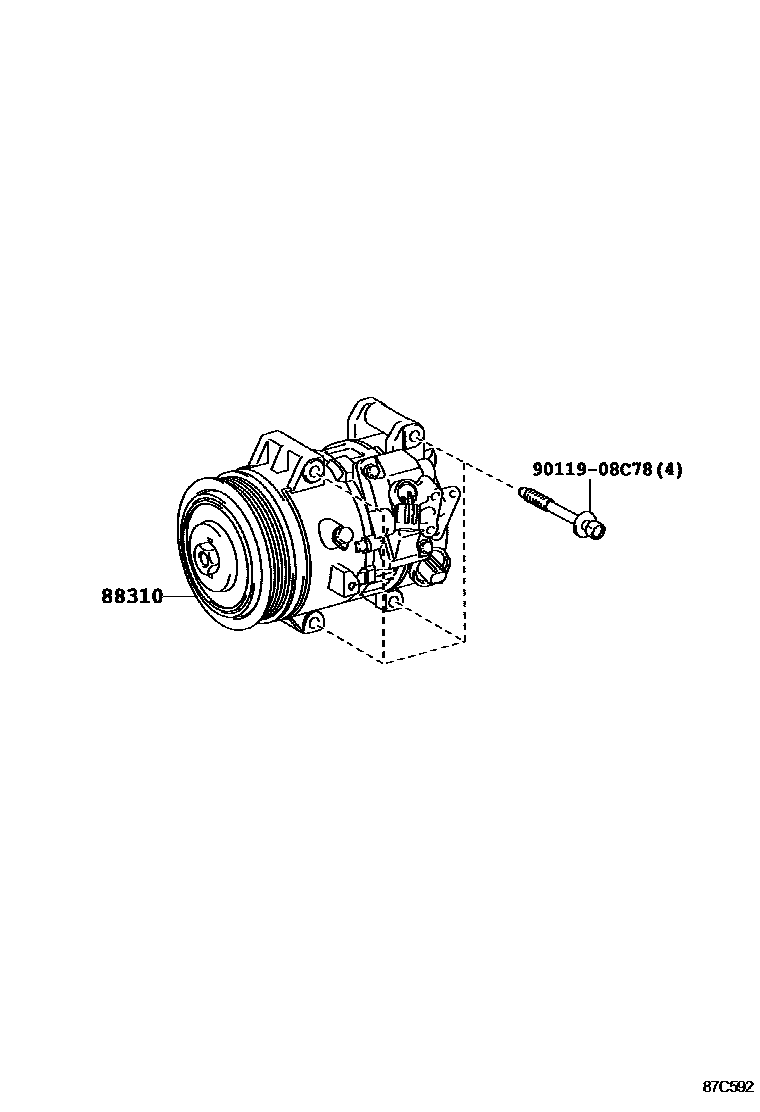

88310COMPRESSOR ASSY, W/PULLEY

main88310-06480iASV50..TAIW201112-201212

sub88310-06481

main88310-06481iASV50..TAIW201301-202007

main88310-06490iACV51..TAIW201112-201212

sub88310-06491

main88310-06491iACV51..TAIW201301-201503

main88310-06500iASV50..IDN,IND,PHL,TH,VN201203-201212

sub88310-06501

main88310-06501iASV5#..IDN,IND,PHL,TH,VN201301-201903

main88310-06510iACV51..TH,VN201203-201212

sub88310-06511

main88310-06511iACV51..TH,VN201301-201504

main88310-06540iASV50..MA201205-201212

sub88310-06541

main88310-06541iASV50..MA201301-201809

main88310-06550iACV51..MA201205-201212

sub88310-06551

main88310-06551iACV51..MA201301-201503

9011908C78

main90119-08C78

2 parts on this diagram · 3 diagrams in section
