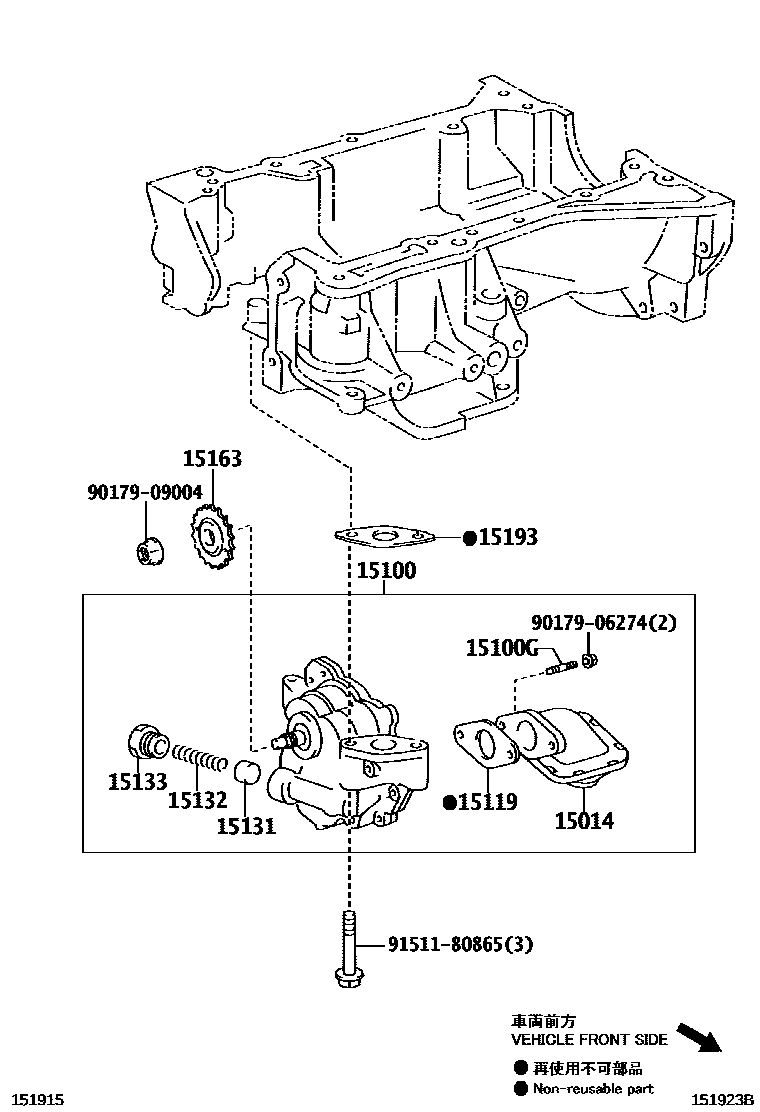

Toyota CAMRY/HYBRID (ASIA) — ENGINE OIL PUMP

0001 1 0002 1

15014STRAINER SET, OIL PUMP

main15014-0H020i1AZFE..ACV51..MA,TH,VN201203-201504

main15014-0H030i1AZFE..ACV51..TAIW201112-201503

15100PUMP ASSY, OIL

main15100-0H020i1AZFE..ACV51..MA,TH,VN201203-201504

main15100-0H030i1AZFE..ACV51..TAIW201112-201503

15100GBOLT,STUD(FOR OIL PUMP)

main15183-0H020i1AZFE..ACV51..MA,TH,VN201203-201504

main15183-0H030i1AZFE..ACV51..TAIW201112-201503

15119GASKET, OIL PUMP COVER

main15119-0H030i1AZFE..ACV51..TAIW201112-201503

main15119-28020i1AZFE..ACV51..MA,TH,VN201203-201504

15131VALVE, OIL PUMP RELIEF

main15131-46040i1AZFE..ACV51201112-201504

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0H020i1AZFE..ACV51..MA,TH,VN201203-201504

main15132-0H030i1AZFE..ACV51..TAIW201112-201503

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0H020i1AZFE..ACV51..MA,TH,VN201203-201504

main15133-0H030i1AZFE..ACV51..TAIW201112-201503

sub15133-0T070

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H031i1AZFE..ACV51201112-201504

(L)

main15163-28010i1AZFE..ACV51201112-201504

(J)

15193GASKET, OIL PUMP

main15193-28010i1AZFE..ACV51201112-201504

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

12 parts on this diagram · 2 diagrams in section
