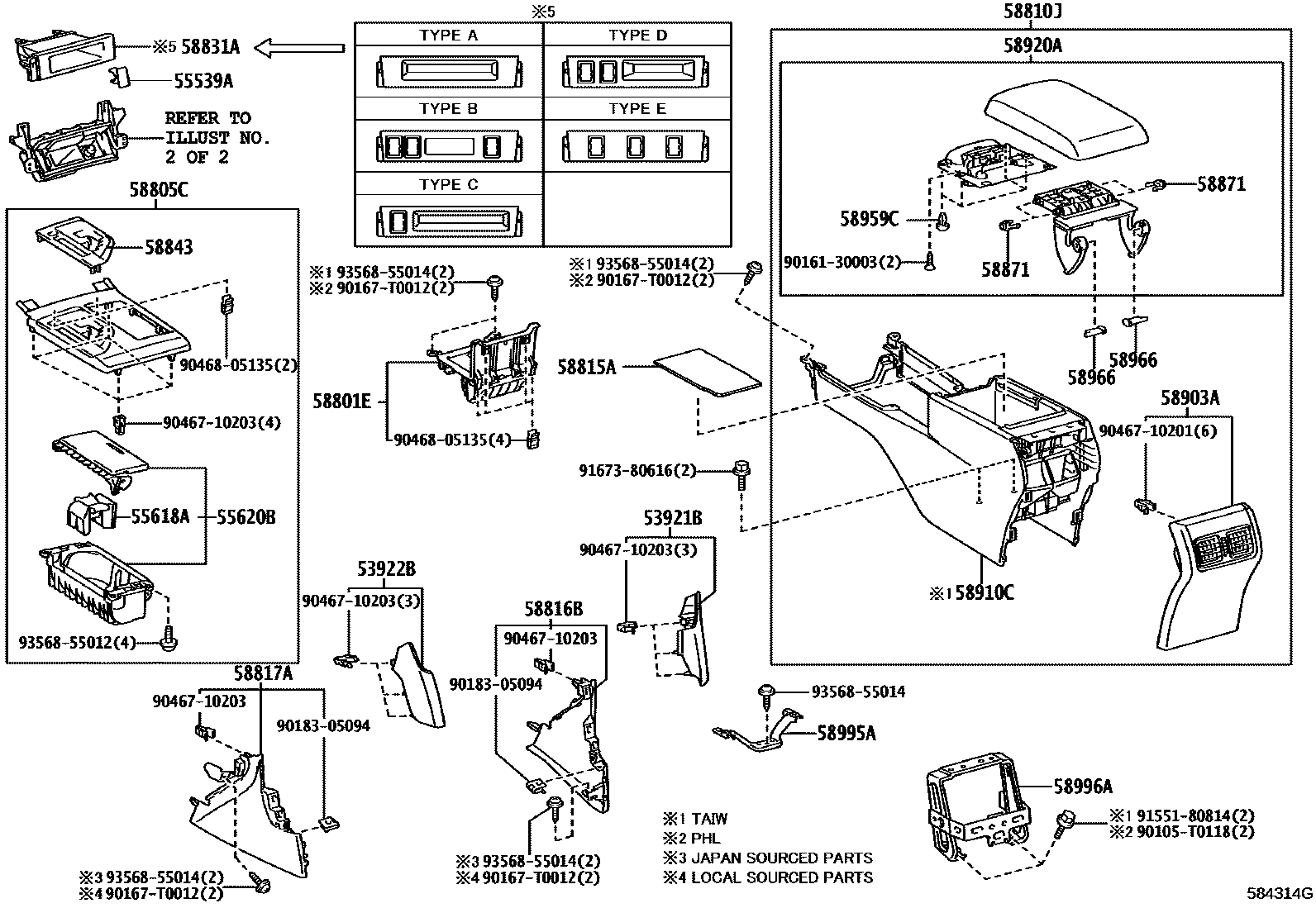

Toyota CAMRY/HYBRID (ASIA) — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

53921BGARNISH, FRONT PANEL, RH

main53921-06040-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main53921-06060-C0iACV51..N..(MA,VN);ASV50..E..(IDN,PHL);ASV50,AVV50..(G,V)..(IND,TH)201203-201903

BLACK,TRIM0#,2#

main53921-06060-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201809

BLACK,TRIM0#

main53921-06060-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main53921-06060-C0iAVV50..IND,TH;ASV5#..E..(TH,VN)201502-201903

BLACK,TRIM0#,2#,4#

53922BGARNISH, FRONT PANEL, LH

main53922-06040-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main53922-06060-C0iACV51..N..(MA,VN);ASV50..E..(IDN,PHL);ASV50,AVV50..(G,V)..(IND,TH)201203-201809

BLACK,TRIM0#

main53922-06060-C0iASV50..G..(IDN,PHL);ACV51,ASV50..(E,G)..(MA,TH,VN)201203-201903

BLACK,TRIM0#,2#

main53922-06060-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main53922-06060-C0iASV50..G;ASV51..MA,VN;ASV50..E..PHL201502-201903

BLACK,TRIM0#,2#,4#

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-C0iASV51..E..MA201503-201701

BLACK

sub55539-52060

main55539-52060-C4iASV51,AVV50..(G,N)..TAIW201701-202007

BLACK

sub55539-52060

55618AHOLDER, CONSOLE BOX CUP

main55618-06140iAVV50..IND,TH;ACV51,ASV50..RHD201203-201811

main55618-06150iACV51,ASV50,AVV50..LHD201112-202007

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-06310-E0iASV51..VN201710-201903

BROWN,TRIM0#,4#

main55620-06310-E0iASV51..VN201707-201903

BROWN,TRIM0#

main55620-06310-E0iASV50..E..PHL201503-201809

BROWN,TRIM0#,2#

main55620-06400-E0iASV50..IND;ACV51..N..MA;ASV50..E..IDN201203-201504

SHELL,TRIM0#

main55620-06400-E0iASV50..G..IDN;ACV51,ASV50..(E,G)..(MA,TH)201203-201503

SHELL,TRIM0#,2#

main55620-06440-E0iAVV50..IND,TH201203-201504

SHELL,TRIM0#

main55620-06450iAVV50..IND201709-201801

main55620-06450-E2iAVV50..G..TH201502-201707

BROWN,TRIM0#,2#

main55620-06450-E2iAVV50..V..TH201502-201709

BROWN,TRIM0#

main55620-06450-E2iAVV50..MA201503-201708

BROWN,TRIM2#

main55620-06470-E0iACV51..VN;ASV50..E..PHL201203-201504

SHELL,TRIM0#

main55620-06470-E0iACV51..TAIW;ASV50..G..PHL;ASV50..TAIW,VN201112-201504

SHELL,TRIM0#,2#

main55620-06480-E0iASV50..E..PHL201202-202007

SHELL,TRIM0#,2#

main55620-06480-E0iASV50..E..PHL201502-201710

SHELL,TRIM0#

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-06260-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main58801-06260-A2iASV51,AVV50..(G,N)..TAIW201503-202007

FLAXEN,TRIM0#

main58801-06260-C0iASV51,AVV50..(G,N)..TAIW201112-202007

BLACK,TRIM2#

main58801-06350-A0iACV51..N..MA;ACV51,AVV50..IND,TH,VN;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub58801-06350

main58801-06350-A1iASV51..E..MA201502-201903

FLAXEN,TRIM0#

sub58801-06350

main58801-06350-C0iASV51..N..(MA,VN);ASV50..E..(PHL,VN);ASV50..G..(IDN,IND,PHL)201205-201811

BLACK,TRIM2#

sub58801-06350

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-06400-E0iASV50..G..IDN;ACV51,ASV50..(E,G)..(MA,TH)201203-201503

SHELL,TRIM0#,2#

main58805-06400-E0iASV50..IND;ACV51..N..MA;ASV50..E..IDN201203-201504

SHELL,TRIM0#

main58805-06410-E0iAVV50..TAIW201202-201503

SHELL,TRIM0#,2#

main58805-06420-E0iAVV50..IND,TH201203-201504

SHELL,TRIM0#

main58805-06500-E0iACV51..VN;ASV50..E..PHL201203-201504

SHELL,TRIM0#

main58805-06500-E0iACV51..TAIW;ASV50..G..PHL;ASV50..TAIW,VN201112-201504

SHELL,TRIM0#,2#

main58805-06510iASV50..PHL201608-201611

main58805-06510-E0iASV50..E..PHL201502-201608

SHELL,TRIM0#

main58805-06510-E0iASV50..G..PHL201502-201611

SHELL,TRIM0#,2#

main58805-06630-E0iAVV50..TAIW201503-201604

BROWN,TRIM0#,2#

main58805-06640iAVV50..TH201608-201610

main58805-06640-E2iAVV50..G..TH201502-201610

BROWN,TRIM0#

main58805-06640-E2iAVV50..V..TH201502-201608

BROWN,TRIM0#,2#

main58805-06640-E2iAVV50..MA201503-201609

BROWN,TRIM2#

main58805-06690-E0iASV50..IND201502-201610

SHELL,TRIM0#

main58805-06C70-E0iASV50..VN201604-202007

SHELL,TRIM0#,2#

main58805-06C70-E0iASV50..VN201611-201710

SHELL,TRIM0#

main58805-06C80-E0iASV50..G..PHL201707-201903

BROWN,TRIM0#

main58805-06C80-E0iASV50..E..PHL201604-201809

BROWN,TRIM0#,2#

main58805-06C80-E0iASV50..VN201710-201903

BROWN,TRIM0#,4#

main58805-06C90iAVV50..IND201608-201801

main58805-06C90-E0iAVV50..G..TH201608-201707

BROWN,TRIM0#,2#

main58805-06C90-E0iAVV50..V..TH201608-201709

BROWN,TRIM0#

main58805-06C90-E0iAVV50..MA201609-201708

BROWN,TRIM2#

main58805-06D00iASV50..IND201608-201801

main58805-06D00-E0iASV5#..TH201608-201707

SHELL,TRIM0#,2#

main58805-06D00-E0iASV5#..TH201608-201709

SHELL,TRIM0#

main58805-06E70-E0iASV5#..MA201707-201809

BROWN,TRIM2#,4#

main58805-06E70-E0iASV5#..MA201708-201809

BROWN,TRIM2#

main58805-06E70-E0iASV50,AVV50..(E,G)..TH201707-201811

BROWN,TRIM4#

main58805-06E70-E0iASV50,AVV50..(E,G)..TH201707-201811

BROWN,TRIM0#

main58805-06E70-E0iAVV50..V..TH201707-201809

BROWN,TRIM0#,4#

58810JBOX ASSY, CONSOLE

main58810-06371-A0iACV51..TH,VN;ACV51..N..MA;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

main58810-06371-C5iACV51..E;ASV50..MA,VN201203-201504

BLACK,TRIM2#

main58810-06381-A0iACV51,ASV50..TAIW201112-201503

SHELL,TRIM0#

main58810-06381-C6iACV51,ASV50..TAIW201112-201503

BLACK,TRIM2#

main58810-06400-A0iASV51..TAIW201503-201610

FLAXEN,TRIM0#

main58810-06400-A1iASV51..TAIW201610-202007

FLAXEN,TRIM0#

main58810-06400-C0iASV51..TAIW201503-201610

BLACK,TRIM2#

main58810-06400-C1iASV51..TAIW201610-202007

BLACK,TRIM2#

main58810-06461-A0iAVV50..IND,TH201203-201504

SHELL,TRIM0#

main58810-06471-A0iAVV50..TAIW201202-201503

SHELL,TRIM0#

main58810-06471-C2iAVV50..TAIW201202-201503

BLACK,TRIM2#

main58810-06480-A0iASV5#..VN201502-201611

FLAXEN,TRIM0#

main58810-06480-C0iASV5#..MA201502-201609

BLACK,TRIM2#

main58810-06540-A0iASV50..IND201707-201903

FLAXEN,TRIM0#

main58810-06540-C0iAVV50..IND201707-201809

BLACK/IVORY,TRIM40

main58810-06540-C0iAVV50..MA201708-201809

BLACK/IVORY,TRIM2#,40

main58810-06540-C0iAVV50..MA201708-201809

BLACK/IVORY,TRIM2#

main58810-06540-C0iAVV50201809-201811

BLACK/IVORY,TRIM4#

main58810-06540-C3iASV5#,AVV50..TH201707-201809

BLACK/KOGANE,TRIM40

main58810-06600-A2iASV50..IND201504-201710

FLAXEN,TRIM0#

sub58810-06480

main58810-06600-C1iASV5#..MA201608-201710

BLACK,TRIM2#

sub58810-06480

main58810-06630-A4iAVV50..IND201502-201709

FLAXEN,TRIM0#

main58810-06630-C3iAVV50..G..TH201502-201708

BLACK,TRIM2#

main58810-06640-A2iAVV50..TAIW201503-201610

FLAXEN,TRIM0#

main58810-06640-A3iAVV50..TAIW201610-201809

FLAXEN,TRIM0#

main58810-06640-C1iAVV50..TAIW201503-201610

BLACK,TRIM2#

main58810-06640-C2iAVV50..TAIW201610-201809

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-06140iACV51,ASV50,AVV50..IDN,IND,PHL,TH,VN201203-201903

main58815-06150iASV51,AVV50..TAIW201112-202007

main58815-06160iASV5#,AVV50..MA201205-201809

58816BINSERT, CONSOLE BOX

main58816-06130-C0iACV51..N..MA;ASV50..E..IDN;ASV50,AVV50..(G,V)..(IND,TH)201203-201809

BLACK,TRIM0#

main58816-06130-C0iASV50..G..IDN;ACV51,ASV50..(E,G)..(MA,TH)201203-201811

BLACK,TRIM0#,2#

main58816-06130-C0iASV5#..TH;AVV50..IND,TH201502-201811

BLACK,TRIM0#,2#,4#

main58816-06130-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main58816-06140-C0iASV50..G..PHL;ASV50..TAIW,VN;ACV51,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main58816-06140-C0iACV51..VN;ASV50..E..PHL201203-201504

BLACK,TRIM0#

main58816-06140-C0iASV50..VN201504-201903

BLACK,TRIM0#,2#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-06110-C0iASV5#..TH;AVV50..IND,TH201502-201811

BLACK,TRIM0#,2#,4#

main58817-06110-C0iASV50..G..IDN;ACV51,ASV50..(E,G)..(MA,TH)201203-201811

BLACK,TRIM0#,2#

main58817-06110-C0iACV51..N..MA;ASV50..E..IDN;ASV50,AVV50..(G,V)..(IND,TH)201203-201809

BLACK,TRIM0#

main58817-06110-C0iAVV50..MA201503-201809

BLACK,TRIM2#,4#

main58817-06120-C0iASV50..G..PHL;ASV50..TAIW,VN;ACV51,AVV50..TAIW201112-202007

BLACK,TRIM0#,2#

main58817-06120-C0iACV51..VN;ASV50..E..PHL201203-201504

BLACK,TRIM0#

main58817-06120-C0iASV50..VN201504-201903

BLACK,TRIM0#,2#,4#

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-06680iASV51..TH201502-201809

SINGAPORE SPEC,TYPE A:REFER ILLUST.

main58831-06680iASV51..TH201502-201809

BRUNEI SPEC,TYPE A:REFER ILLUST.

main58831-06680iASV51..TH201203-201809

TYPE A:REFER ILLUST.

main58831-06690iASV50,AVV50..(G,V)..(IND,TH)201502-201811

TYPE B:REFER ILLUST.

main58831-06690iAVV50..IND,TH201203-201504

TYPE F:REFER ILLUST.

main58831-06700iASV5#..TH;ASV50..G..PHL201203-201809

TYPE C:REFER ILLUST.

main58831-06750iACV51,ASV50..TAIW201112-202007

TYPE A:REFER ILLUST.

main58831-06770iAVV50..V..TAIW201202-201809

TYPE E:REFER ILLUST.

main58831-06790iAVV50..G..TAIW201202-201311

TYPE D:REFER ILLUST.

sub58831-06791

main58831-06791iAVV50..G..TAIW201312-201903

TYPE D:REFER ILLUST.

58843BEZEL, SHIFTING HOLE

main58843-06100iAVV50..TAIW201202-201503

main58843-06140iACV51,ASV50..TAIW201112-201503

main58843-06150iASV5#..TAIW,VN201503-201604

main58843-06170iAVV50..TAIW201503-201604

58871CUSHION, CONSOLE BOX

main58871-30070iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06191-A0iACV51..TH,VN;ACV51..N..MA;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

main58903-06191-C3iACV51..E;ASV50..MA,VN201205-201504

BLACK,TRIM2#

main58903-06201-A0iACV51,ASV50..TAIW201112-201503

SHELL,TRIM0#

main58903-06201-C2iACV51,ASV50..TAIW201112-201503

BLACK,TRIM2#

main58903-06210-A0iASV50..IND201502-201710

FLAXEN,TRIM0#

main58903-06210-C0iASV5#..MA201502-201708

BLACK,TRIM2#

main58903-06210-C0iASV5#..TH201502-201707

2.5G S PACKEGE,BLACK,TRIM2#

main58903-06220-A0iASV51..TAIW201503-201610

FLAXEN,TRIM0#

main58903-06220-A1iASV51..TAIW201610-202007

FLAXEN,TRIM0#

main58903-06220-C0iASV51..TAIW201503-201610

BLACK,TRIM2#

main58903-06220-C1iASV51..TAIW201610-202007

BLACK,TRIM2#

main58903-06281-A0iAVV50..IND,TH201203-201504

SHELL,TRIM0#

sub58903-06210

main58903-06291-A0iAVV50..TAIW201202-201503

SHELL,TRIM0#

main58903-06291-C1iAVV50..TAIW201202-201503

BLACK,TRIM2#

main58903-06360-A2iAVV50..IND201502-201709

FLAXEN,TRIM0#

main58903-06360-C2iAVV50..G..TH201502-201708

BLACK,TRIM2#

main58903-06370-A0iAVV50..TAIW201503-201610

FLAXEN,TRIM0#

main58903-06370-A1iAVV50..TAIW201610-201809

FLAXEN,TRIM0#

main58903-06370-C0iAVV50..TAIW201503-201610

BLACK,TRIM2#

main58903-06370-C1iAVV50..TAIW201610-201809

BLACK/BROWN,TRIM2#

main58903-06640-A0iASV5#..VN201707-201903

FLAXEN,TRIM0#

main58903-06640-C0iASV5#..MA201708-201809

BLACK,TRIM2#,4#

main58903-06640-C0iAVV50..MA201708-201809

BLACK,TRIM2#

main58903-06640-C0iASV5#,AVV50..TH201707-201811

BLACK,TRIM4#

58910CBOX ASSY, CONSOLE, REAR

main58910-06161-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main58910-06161-A1iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main58910-06161-C0iACV51,ASV50,AVV50..TAIW201112-202007

BLACK,TRIM2#

58920AARMREST ASSY, REAR CONSOLE

main58920-06051-A0iACV51..N..MA;ACV51,AVV50..IND,TH,VN;ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

SHELL,TRIM0#

sub58920-06051

sub58920-06090

main58920-06051-A3iASV5#,AVV50..(E,G)..TH201502-201903

FLAXEN,TRIM0#

sub58920-06051

sub58920-06090

main58920-06051-C0iACV51..E;ASV50..MA,VN201205-201504

BLACK,TRIM2#

sub58920-06051

sub58920-06090

main58920-06051-C1iASV5#..VN201502-201710

BLACK,TRIM2#

sub58920-06051

sub58920-06090

main58920-06051-C2iASV5#..MA201708-201809

BLACK/IVORY,TRIM2#,40

sub58920-06051

sub58920-06090

main58920-06051-C2iASV5#,AVV50..TH201707-201809

BLACK/IVORY,TRIM40

sub58920-06051

sub58920-06090

main58920-06051-C2iAVV50..MA201708-201809

BLACK/IVORY,TRIM2#

sub58920-06051

sub58920-06090

main58920-06051-E1iAVV50..MA201707-201809

BLACK/KOGANE,TRIM40

sub58920-06051

sub58920-06090

main58920-06051-E1iAVV50201809-201811

BLACK/KOGANE,TRIM4#

sub58920-06051

sub58920-06090

main58920-06071-A0iACV51,ASV50,AVV50..TAIW201112-201503

SHELL,TRIM0#

main58920-06071-A3iASV51,AVV50..TAIW201503-202007

FLAXEN,TRIM0#

main58920-06071-C0iACV51,ASV50,AVV50..TAIW201112-201503

BLACK,TRIM2#

main58920-06071-C1iASV51,AVV50..TAIW201503-202007

BLACK,TRIM2#

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

58966SHAFT, BOX DOOR HINGE

main58966-30030iACV51,ASV50;AVV50..IND,TAIW,TH201112-202007

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-06180iASV51,AVV50..TAIW201112-202007

main58995-06180iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

*298

main58995-06190iASV5#..IDN,PHL,TH201203-201611

*299

main58995-06190iASV5#..IDN,PHL,TH201502-201608

VSC-WITH

main58995-06190iASV5#..IDN,PHL,TH201502-201611

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

main58995-06190iASV50..IND;AVV50..RHD201502-201903

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-06100iAVV50..IND,TH;ACV51,ASV50..IDN,IND,MA,PHL,TH,VN201203-201504

*298

main58996-06100iASV51,AVV50..TAIW201112-202007

main58996-06110iASV5#..VN201203-201611

*299

90105T0118

main90105-T0118

9016130003

main90161-30003

90167T0012

main90167-T0012

9018305094

main90183-05094

9046710201

main90467-10201

9046710203

main90467-10203

9046805135

main90468-05135

9155180814

main91551-80814

9167380616

main91673-80616

9356855012

main93568-55012

9356855014

main93568-55014

32 parts on this diagram · 3 diagrams in section
