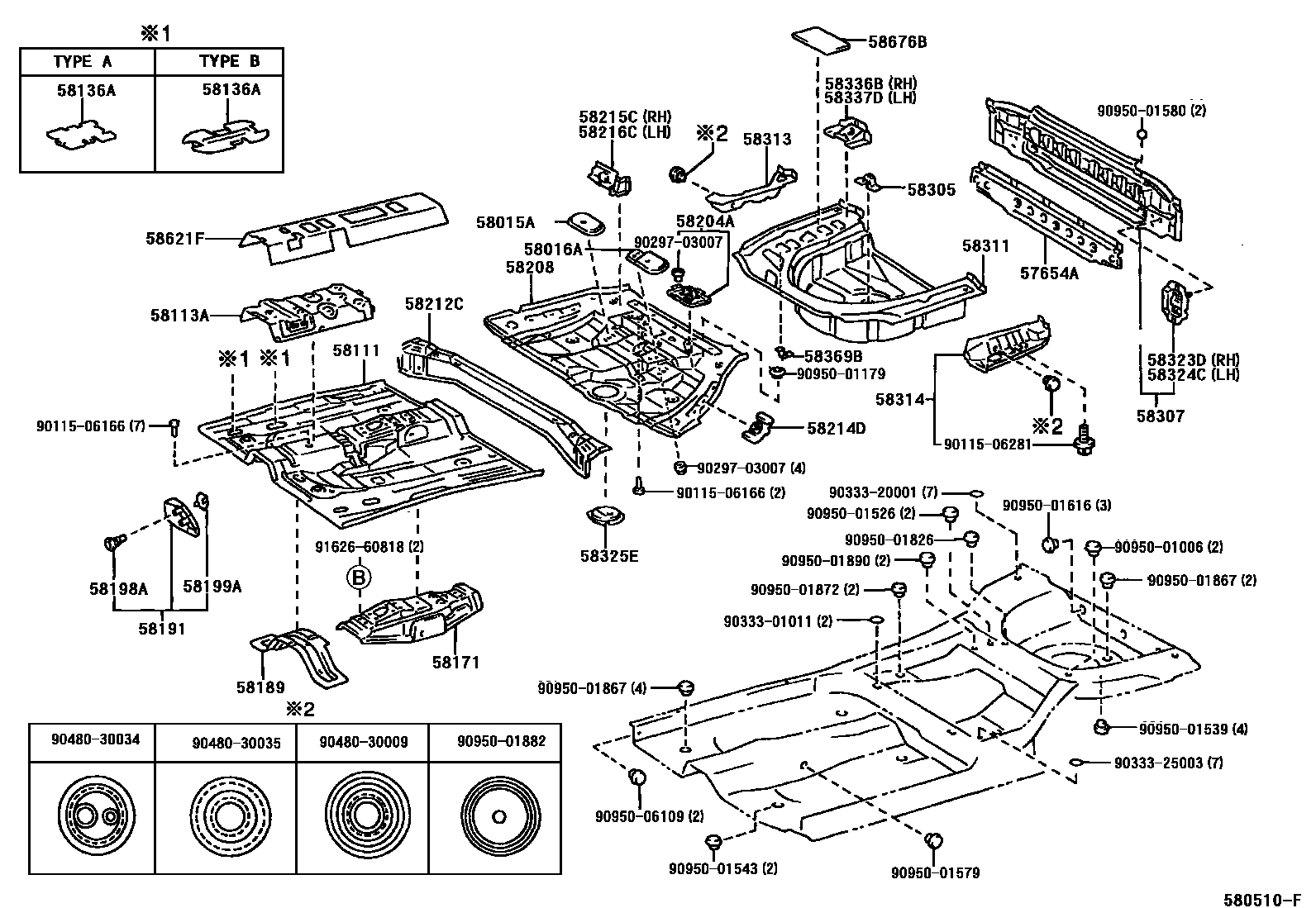

Toyota CAMRY GRACIA — FLOOR PAN & LOWER BACK PANEL
57654AMEMBER, REAR FLOOR CROSS, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
58324CREINFORCE, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58369BBRACKET, FUEL TUBE, NO.3
58621FSILENCER, CENTER CONSOLE, NO.1
58676BPAD, REAR FLOOR SILENCER, NO.1 RH
9011506166
main90115-06166
9011506281
main90115-06281
9029703007
main90297-03007
9033301011
main90333-01011
9033320001
main90333-20001
9033325003
main90333-25003
9048030009
main90480-30009
9048030034
main90480-30034
9048030035
main90480-30035
9095001006
main90950-01006
9095001179
main90950-01179
9095001526
main90950-01526
9095001539
main90950-01539
9095001543
main90950-01543
9095001579
main90950-01579
9095001580
main90950-01580
9095001616
main90950-01616
9095001826
main90950-01826
9095001867
main90950-01867
9095001872
main90950-01872
9095001882
main90950-01882
9095001890
main90950-01890
9095006109
main90950-06109
9162660818
main91626-60818
54 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CAMRY GRACIA
This section contains 73 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CAMRY GRACIA. Key components include: MEMBER, REAR FLOOR CROSS, NO.3, MEMBER, REAR FLOOR CROSS, CENTER, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH, PAN, FRONT FLOOR.
