Toyota CAMRY (AUSTRALIA) — RADIATOR GRILLE

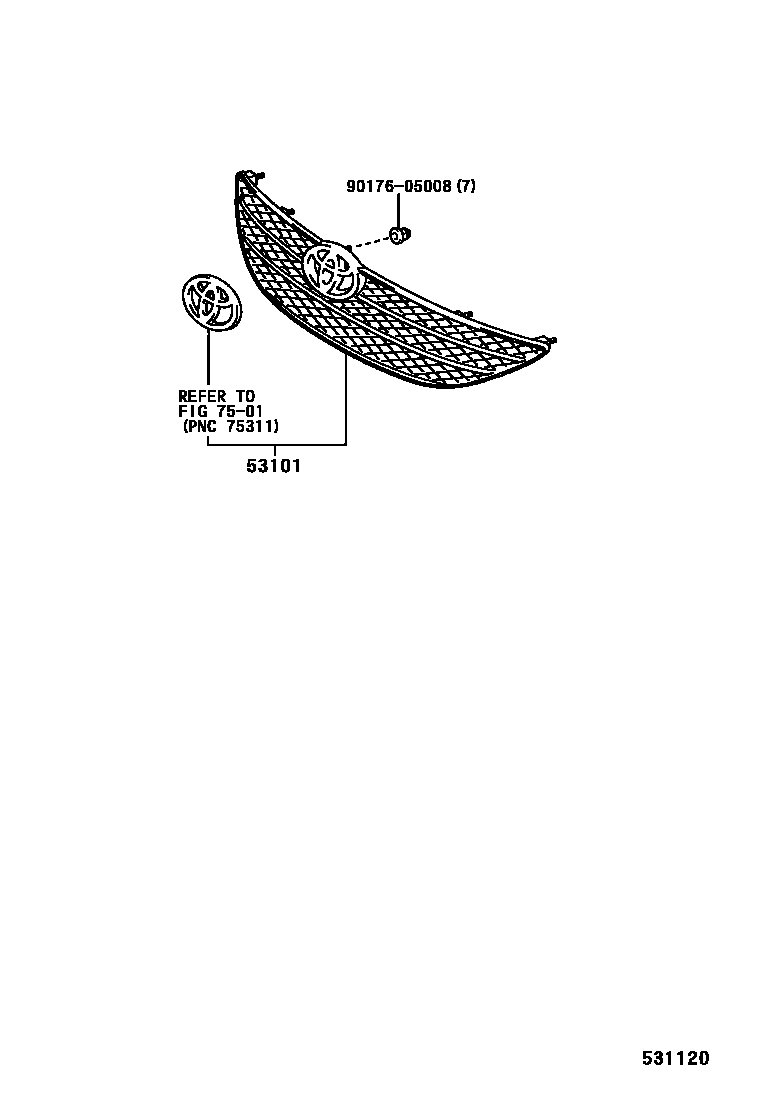

53101GRILLE SUB-ASSY, RADIATOR

main53101-YC100i200208-200408

PLATED

main53101-YC110i200301-200408

PLATED,W(CHROME PLATED)

main53101-YC130i200208-200408

PLATED

main53101-YC140i200408-200606

PLATED,TYPE A:REFER TO ILLUSTRATION

main53101-YC150i200408-200606

PLATED,TYPE B:REFER TO ILLUSTRATION

main53101-YC160i200408-200606

PLATED,TYPE B:REFER TO ILLUSTRATION & W(CHROME PLATED)

main53101-YC170-A0i200408-200606

TYPE A:REFER TO ILLUSTRATION,DIAMOND WHITE,061

main53101-YC170-B0i200408-200508

TYPE A:REFER TO ILLUSTRATION,SILVER M,173

main53101-YC170-B1i200508-200606

TYPE A:REFER TO ILLUSTRATION,SILVER ME.,1D4

main53101-YC170-C0i200507-200606

TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209

main53101-YC170-D0i200408-200606

TYPE A:REFER TO ILLUSTRATION,RED M.M.,3N8

main53101-YC170-E0i200508-200606

TYPE A:REFER TO ILLUSTRATION,BEIGE M.M.,4N3

main53101-YC170-F0i200408-200508

TYPE A:REFER TO ILLUSTRATION,CHAMPAGNE ME.,583

main53101-YC170-J0i200408-200601

TYPE A:REFER TO ILLUSTRATION,BLUE M.M.,8Q1

main53101-YC170-J1i200601-200606

TYPE A:REFER TO ILLUSTRATION,LT.BLUE ME.,8M7

main53101-YC170-J2i200601-200606

TYPE A:REFER TO ILLUSTRATION,BLUE ME.,8P1

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9017605008

main90176-05008

3 parts on this diagram · 3 diagrams in section

RADIATOR GRILLE for Toyota CAMRY (AUSTRALIA)

This section contains 5 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota CAMRY (AUSTRALIA). Key components include: GRILLE SUB-ASSY, RADIATOR, PROTECTOR, RADIATOR GRILLE, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
