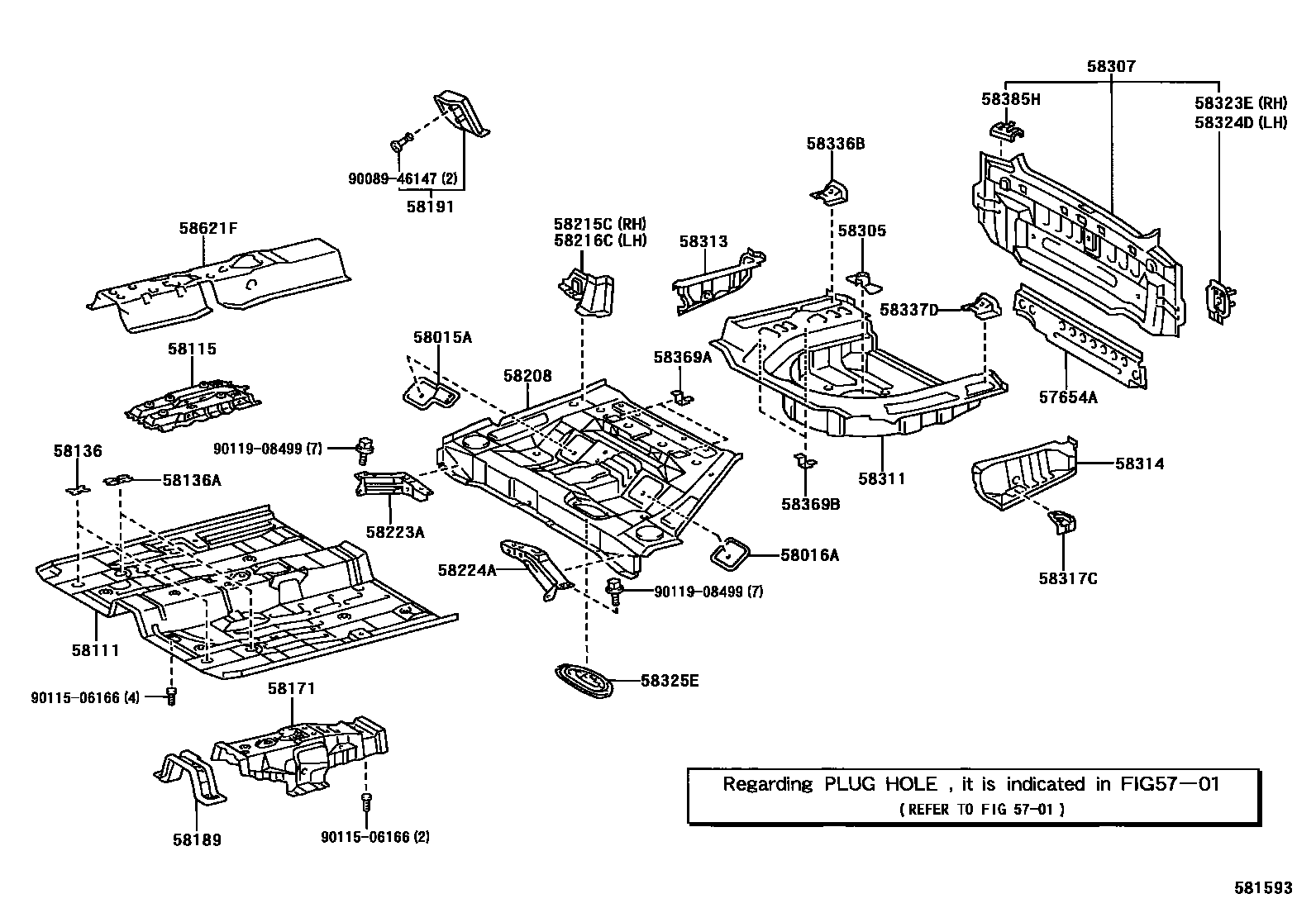

Toyota CAMRY (AUSTRALIA) — FLOOR PAN & LOWER BACK PANEL
5701HOLE PLUG
57654AMEMBER, REAR FLOOR CROSS, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
PAPUA NEW GUINEA SPEC OR FIJI SPEC; SOUTH AFRICA SPEC
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58136COVER, FRONT FLOOR HOLE
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58223AREINFORCEMENT, FLOOR SIDE PANEL, RH
58224AREINFORCEMENT, FLOOR SIDE PANEL, LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
(L)
(J)
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
(L)
(J)
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
(L)
(J)
58337DREINFORCEMENT, REAR FLOOR PAN, LH
(L)
(J)
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58385HBRACKET, REAR BUMPER COVER, NO.1
(L)
(J)
58621FSILENCER, CENTER CONSOLE, NO.1
9008946147
main90089-46147
9011506166
main90115-06166
9011908499
main90119-08499
34 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota CAMRY (AUSTRALIA)
This section contains 34 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CAMRY (AUSTRALIA). Key components include: HOLE PLUG, MEMBER, REAR FLOOR CROSS, NO.3, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH, PAN, FRONT FLOOR.
