Toyota CAMRY (AUSTRALIA) — CONSOLE BOX & BRACKET

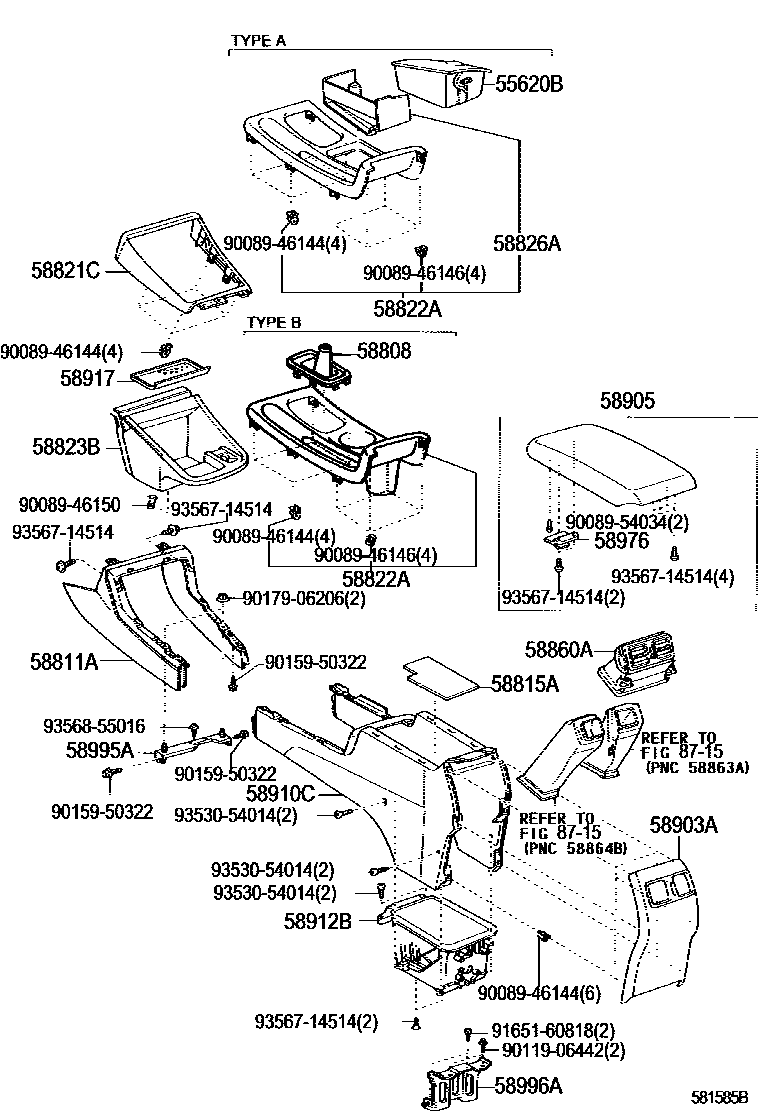

Parts diagram
55620BHOLDER, INSTRUMENT PANEL CUP
main55620-YC030i200408
main55620-YC040i200408
WOOD GRAIN
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-YC030-B0i200408-200606
DK.CHARCOAL,TRIM1#; DK.CHARCOAL,TRIM11
main58808-YC030-B1i200408-200606
DK.GRAY,TRIM1#; DK.GRAY,TRIM11
main58808-YC030-E0i200408-200606
SANDAL WOOD,TRIM4#
58811ABOX, CONSOLE, FRONT
main58811-YC040-B0i200208-200408
STONE,TRIM1#
main58811-YC040-E0i200208-200408
FAWN,TRIM4#
main58811-YC050-B0i200208-200408
STONE,TRIM1#; STONE,TRIM15
main58811-YC050-E0i200208-200408
FAWN,TRIM16; FAWN,TRIM4#
main58811-YC060-B0i200408-200606
STONE,TRIM1#
main58811-YC060-E0i200408-200606
FAWN,TRIM4#
main58811-YC070i200507-200508
main58811-YC070-B0i200408-200606
STONE,TRIM1#; STONE,TRIM15
main58811-YC070-B1i200408-200606
DK.GRAY,TRIM1#; DK.GRAY,TRIM12
main58811-YC070-E0i200408-200606
FAWN,TRIM16; FAWN,TRIM4#
58815ACARPET, CONSOLE BOX
main58815-YC020i200208-200408
58821CPANEL, CONSOLE, UPPER
main58821-YC050i200208-200408
main58821-YC060i200208-200408
main58821-YC070i200208-200408
main58821-YC080i200208-200408
WOOD GRAIN
main58821-YC090-B1i200208-200408
DK.CHARCOAL,TRIM1#
main58821-YC090-E1i200208-200408
SANDAL WOOD,TRIM4#
58822APANEL, CONSOLE, UPPER REAR
main58805-YC010i200208-200307
TYPE A:REFER TO ILLUSTRATION
main58805-YC011i200408-200606
TYPE A:REFER TO ILLUSTRATION
main58805-YC020i200208-200307
TYPE A:REFER TO ILLUSTRATION;WOOD GRAIN
main58805-YC021i200408-200606
TYPE A:REFER TO ILLUSTRATION;WOOD GRAIN
main58805-YC030-B1i200208-200307
TYPE B:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#
main58805-YC030-E1i200208-200307
TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM4#
main58805-YC031-B1i200307-200408
TYPE B:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#
main58805-YC031-E1i200408-200606
TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM4#
58823BBOX, CONSOLE COMPARTMENT
main58823-YC010i200208-200408
main58823-YC020i200408
58826APOCKET, CONSOLE BOX, LOWER
main58826-YC010i200408
58860AREGISTER ASSY, CONSOLE BOX
main58860-YC010-B0i200408-200606
STONE,TRIM1#; STONE,TRIM15
main58860-YC010-B1i200408-200606
DK.GRAY,TRIM1#; DK.GRAY,TRIM12
main58860-YC010-E0i200208-200408
FAWN,TRIM16; FAWN,TRIM4#
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-YC010-B0i200208-200408
STONE,TRIM1#; STONE,TRIM15
main58903-YC010-B1i200408-200606
DK.GRAY,TRIM1#; DK.GRAY,TRIM12
main58903-YC010-E0i200208-200408
FAWN,TRIM16; FAWN,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-YC040-B0i200208-200408
STONE,TRIM1#; STONE,TRIM15
main58905-YC040-B1i200408-200606
DK.GRAY,TRIM1#; DK.GRAY,TRIM12
main58905-YC040-E0i200408-200606
FAWN,TRIM16; FAWN,TRIM4#
58910CBOX ASSY, CONSOLE, REAR
main58911-YC040-B0i200208-200408
STONE,TRIM1#; STONE,TRIM15
main58911-YC040-B1i200408-200606
DK.GRAY,TRIM1#; DK.GRAY,TRIM12
main58911-YC040-E0i200208-200408
FAWN,TRIM16; FAWN,TRIM4#
58912BBOX, REAR CONSOLE, LOWER
main58912-YC030i200208-200408
58917MAT, BOX BOTTOM, NO.2
main58917-YC010i200208-200408
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
main58976-YA010i200208-200301
main58976-YA011i200301-200408
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-YC030i200208-200408
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-YC030i200408
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
9008946144
main90089-46144
9008946146
main90089-46146
9008946150
main90089-46150
9008954034
main90089-54034
9011906442
main90119-06442
9015950322
main90159-50322
9017906206
main90179-06206
9165160818
main91651-60818
9353054014
main93530-54014
9356714514
main93567-14514
9356855016
main93568-55016

29 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota CAMRY (AUSTRALIA)

This section contains 35 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CAMRY (AUSTRALIA). Key components include: HOLDER, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE, BOX, CONSOLE, FRONT, BOX, CONSOLE.
