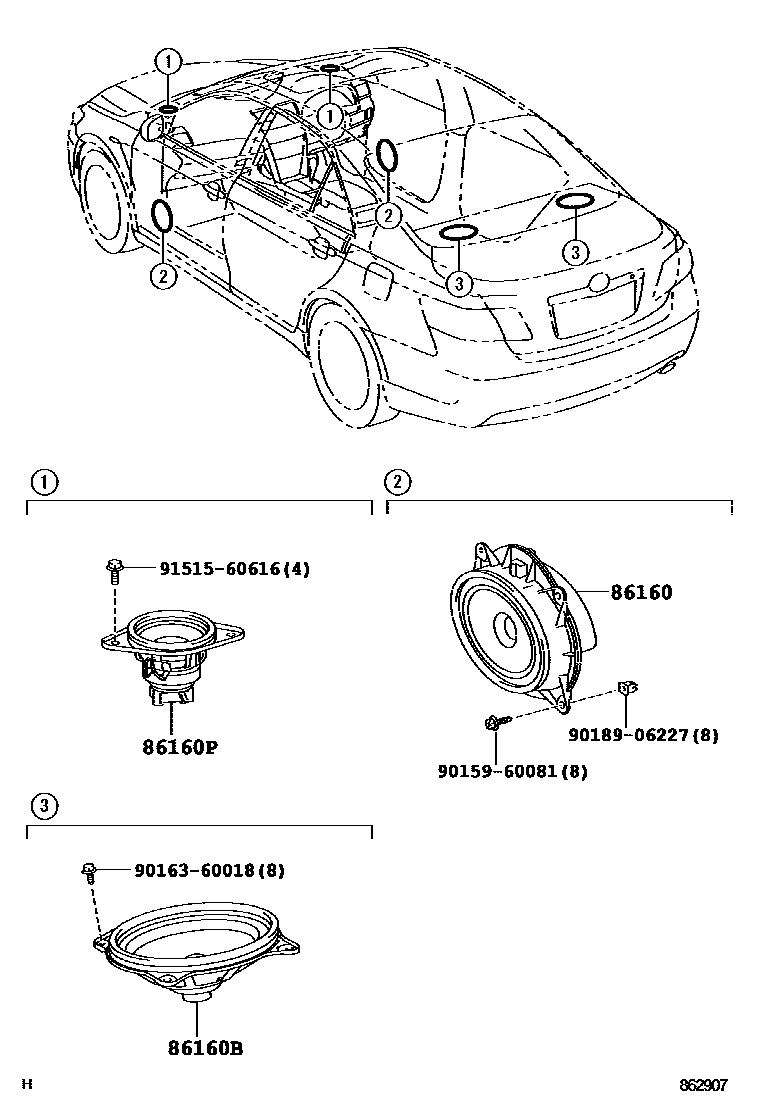

Toyota CAMRY/AURION/HV(ARL) — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-06400×2iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GL,GLX,HBD,PRD,SE,SPV,SPVS,SPVZ,TOU; ACV40..GD200906
NEW ZEALAND SPEC
86160BSPEAKER ASSY, REAR
main86160-06410×2iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GL,GLX,HBD,PRD,SE,SPV,SPVS,SPVZ,TOU; ACV40..GD200906
NEW ZEALAND SPEC
86160PSPEAKER ASSY, FRONT NO.2
9015960081
main90159-60081
9016360018
main90163-60018
9018906227
main90189-06227
9151560616
main91515-60616
7 parts on this diagram · 2 diagrams in section
SPEAKER for Toyota CAMRY/AURION/HV(ARL)
This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota CAMRY/AURION/HV(ARL). Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
