Toyota CAMRY/AURION/HV(ARL) — LANE-KEEPING ASSIST

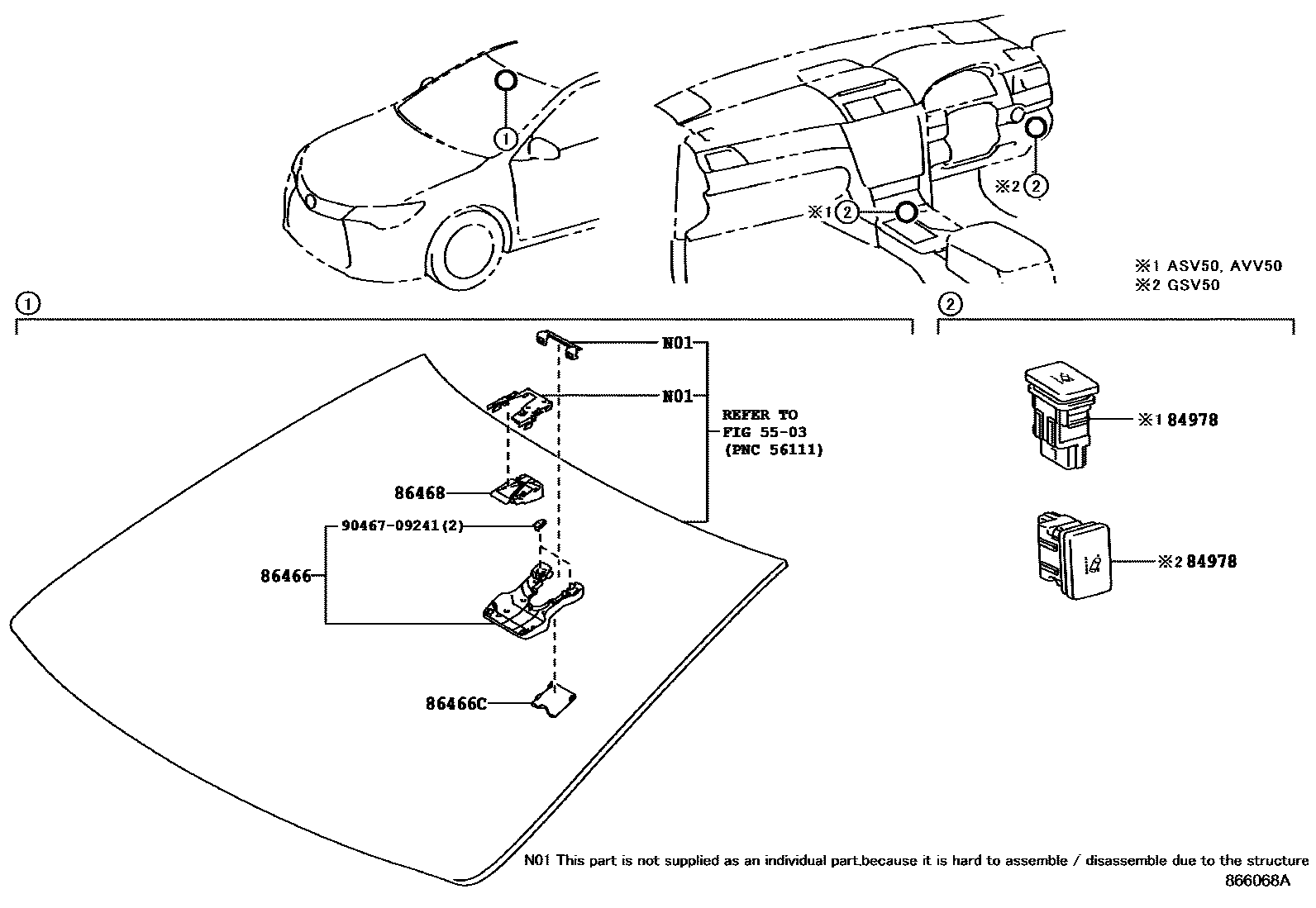

Parts diagram
5503COWL PANEL & WINDSHIELD GLASS
→ Go to FIG 55-03
84978SWITCH, LANE-KEEPING ASSIST MAIN
main84978-33031i201504
LIMITED PACKAGE
86466COVER, LANE DEPARTURE WARNING CAMERA, NO.1
main86466-06010i201504
LIMITED PACKAGE
86466CCOVER, LANE DEPARTURE WARNING CAMERA, NO.2
main86466-06020i201504
LIMITED PACKAGE
86468CAMERA, LANE DEPARTURE WARNING
main86468-33020i201504
LIMITED PACKAGE
9046709241
main90467-09241

6 parts on this diagram · 1 diagram in section

LANE-KEEPING ASSIST for Toyota CAMRY/AURION/HV(ARL)

This section contains 6 genuine Toyota parts for the LANE-KEEPING ASSIST system of the Toyota CAMRY/AURION/HV(ARL). Key components include: COWL PANEL & WINDSHIELD GLASS, SWITCH, LANE-KEEPING ASSIST MAIN, COVER, LANE DEPARTURE WARNING CAMERA, NO.1, COVER, LANE DEPARTURE WARNING CAMERA, NO.2, CAMERA, LANE DEPARTURE WARNING.
