Toyota CAMI — WINDSHIELD WIPER

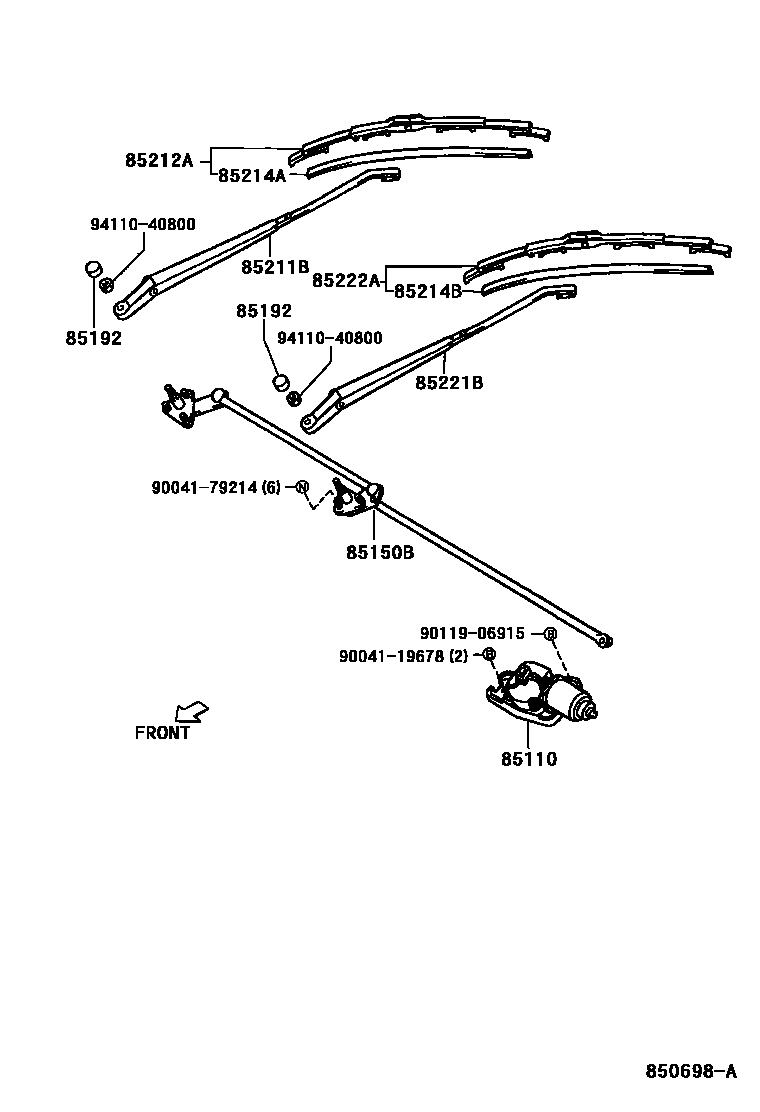

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-87402i199905-200005

main85120-87401i200005

main85120-87405i200005

85150BLINK ASSY, WIPER

main85150-87401i199905-200005

main85150-87403i200005

85192COVER, WINDSHIELD WIPER ARM

main85187-87713×2i199905

85211BARM, FRONT WIPER, RH

main85190-87401i199905-200005

main85190-87402i200005

85212ABLADE, FR WIPER, RH

main85212-87401i200005

main85212-87707i199905-200005

main85291-87705i199905-200005

main85291-97401i200005

85214ARUBBER, WIPER, RH

main85221-87402i200005

main85221-87719i199905-200005

85214BRUBBER, WIPER, LH

main85221-87401i199905-200005

main85243-87401i200005

85221BARM, FRONT WIPER, LH

main85210-87401i199905-200005

main85210-87404i200005

85222ABLADE, FR WIPER, LH

main85222-87401i199905-200005

main85242-87401i200005

main85291-87203i199905-200005

main85291-87209i200005

9004119678

main90041-19678

9004179214

main90041-79214

9011906915

main90119-06915

9411040800

main94110-40800

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CAMI

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CAMI. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
