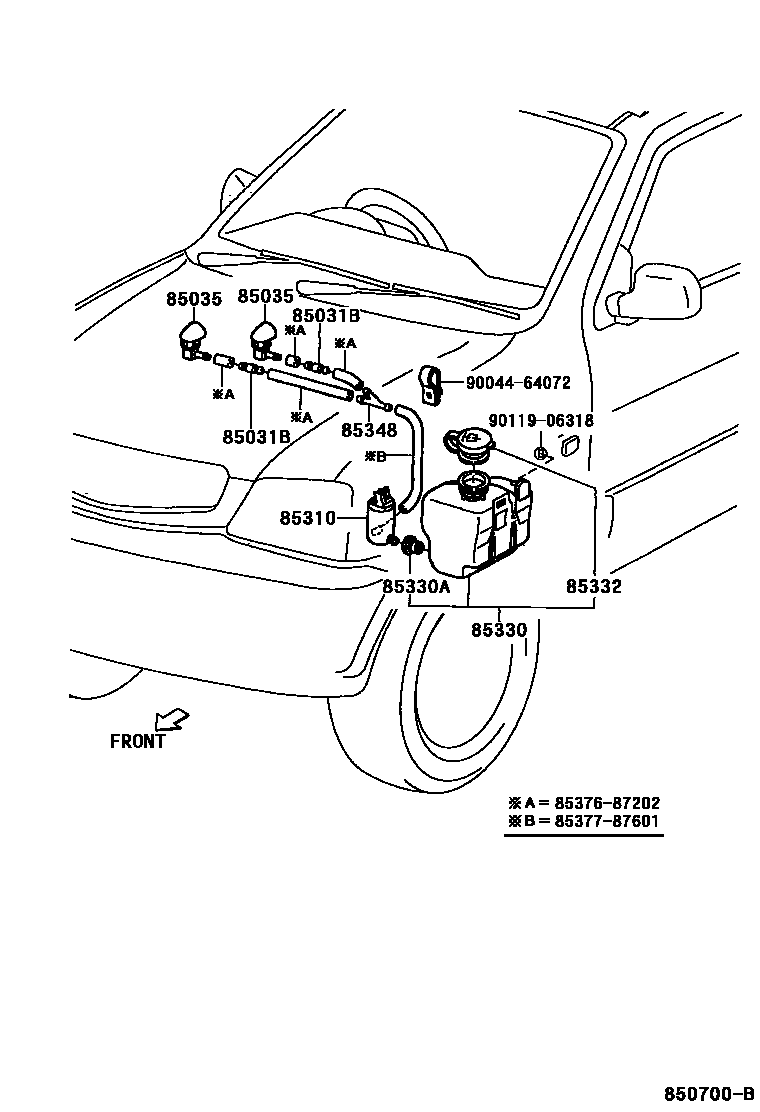

Toyota CAMI — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-87702×2i199905

85035NOZZLE SUB-ASSY, WASHER

main85035-87401×2i199905

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-87708×2i199905

85330JAR ASSY, WINDSHIELD WASHER

main85330-87401i199905

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2i199905

85332CAP, WINDSHIELD WASHER JAR

main85332-87401i199905

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-87201i199905

8537687202PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-87202

8537787601

main85377-87601

9004464072

main90044-64072

9011906318

main90119-06318

11 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CAMI

This section contains 11 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMI. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
