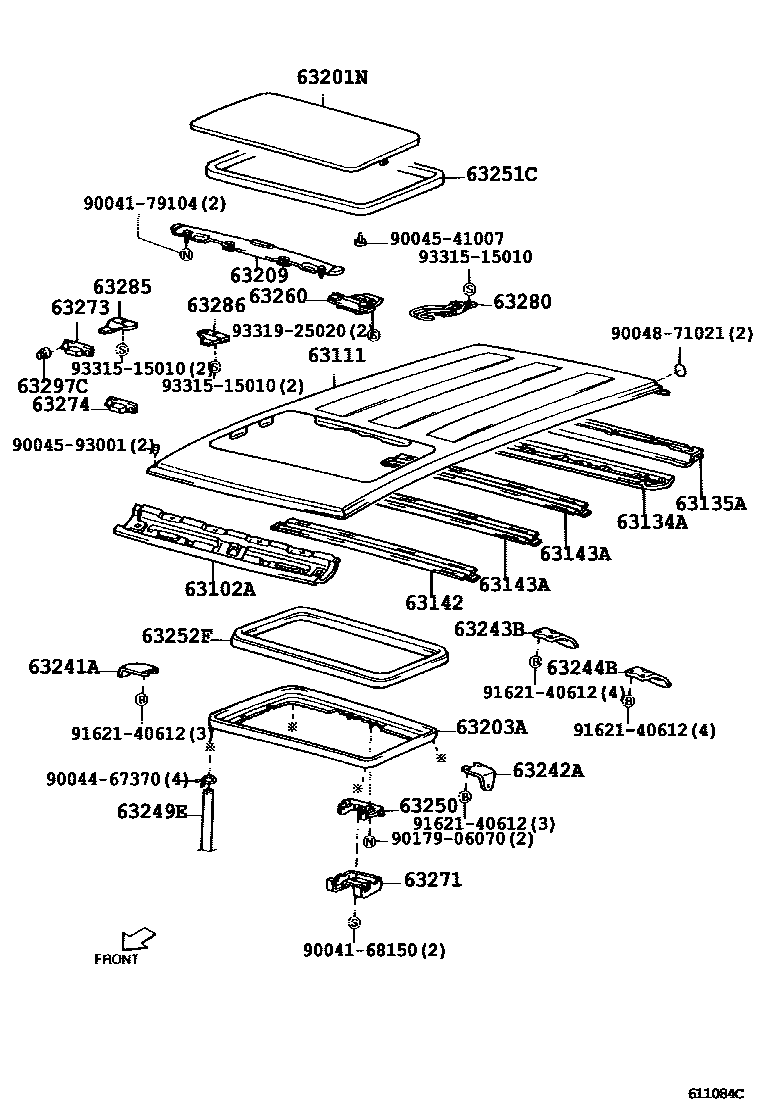

Toyota CAMI — ROOF PANEL & BACK PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
sub63132-87402
63111PANEL, ROOF
63134AFRAME, BACK DOOR OPENING, UPPER
63135AFRAME, BACK DOOR OPENING, LOWER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143AREINFORCEMENT, ROOF PANEL
63201NPANEL SUB-ASSY, REMOVABLE ROOF
63203AHOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63209PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63241ABRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242ABRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63243BBRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH
63244BBRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH
63249EHOSE, SLIDING ROOF DRAIN
63250BASE ASSY, REMOVABLE ROOF LOCK
63251CWEATHERSTRIP, REMOVABLE ROOF
63252FWEATHERSTRIP, REMOVABLE ROOF, INNER
63260HANDLE ASSY, REMOVABLE ROOF LOCK
63271GARNISH, REMOVABLE ROOF LOCK
63273CASE, REMOVABLE ROOF HINGE, RH
63274CASE, REMOVABLE ROOF HINGE, LH
63280CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH
63285HINGE, REMOVABLE ROOF, RH
63286HINGE, REMOVABLE ROOF, LH
63297CBOLT, REMOVABLE ROOF HINGE CASE
9004168150
main90041-68150
9004179104
main90041-79104
9004467370
main90044-67370
9004541007
main90045-41007
9004593001
main90045-93001
9004871021
main90048-71021
9017906070
main90179-06070
9162140612
main91621-40612
9331515010
main93315-15010
9331925020
main93319-25020
35 parts on this diagram · 2 diagrams in section
