Toyota CAMI — RADIATOR GRILLE

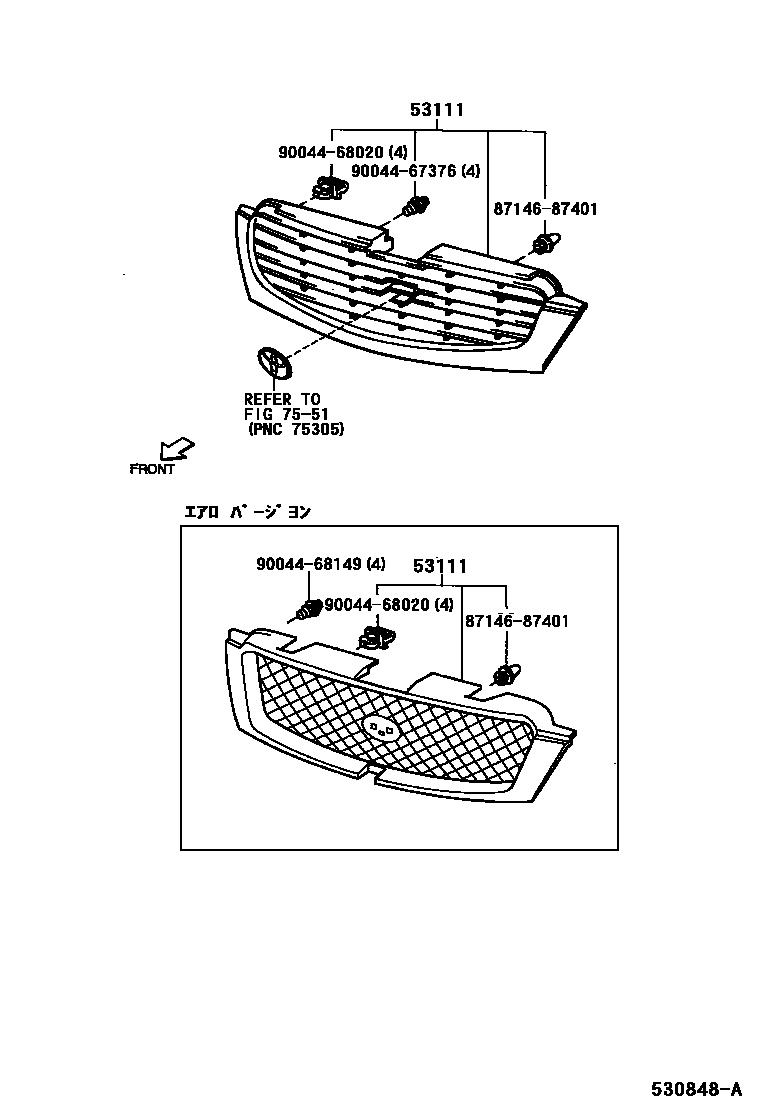

Parts diagram

53111GRILLE, RADIATOR

main53111-87411-01i199905-200005

main53111-87411-03i199905-200005

main53111-87411-08i199905-200005

main53111-87412-01i199905-200005

BLACK M.,6A5

main53111-87412-03i199905-200005

SILVER M.,S07

main53111-87412-08i199905-200005

WHITE,W19

main53111-87412-22i199905-200005

PURE RED,R19

main53111-87412-34i199905-200005

MARINE BLUE M.M,B44

main53111-87416-01i200008

main53111-87416-03i200008

main53111-87416-08i200008

main53111-87419-01i200005

BLACK M.,6A5

main53111-87419-02i200005

RED,R29

main53111-87419-03i200005

SILVER M.,S07

main53111-87419-04i200005

BLUE MICA M.,B50

main53111-87419-08i200005

WHITE,W09

main53111-87419-12i200005

MAPLE RED M.M.,T16

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

8714687401RETAINER, GRILLE

main87146-87401

9004467376

main90044-67376

9004468020

main90044-68020

9004468149

main90044-68149

6 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota CAMI

This section contains 7 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota CAMI. Key components include: GRILLE, RADIATOR, EMBLEM & NAME PLATE, RETAINER, GRILLE.
