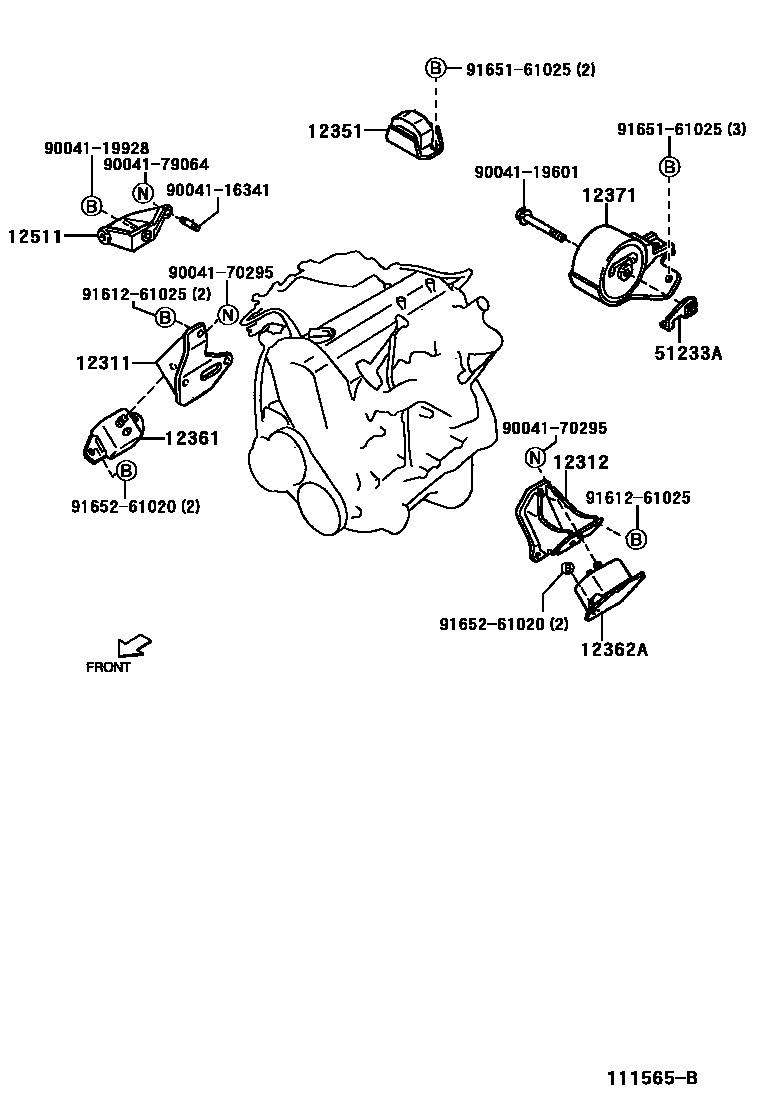

Toyota CAMI — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12312BRACKET, ENGINE MOUNTING, FRONT NO.2
12351DAMPER, ENGINE MOUNTING
12361INSULATOR, ENGINE MOUNTING, FRONT
12362AINSULATOR, ENGINE MOUNTING, FRONT LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12511BRACKET, ALTERNATOR, NO.1
51233APLATE, ENGINE MOUNTING, REAR
9004116341
main90041-16341
9004119601
main90041-19601
9004119928
main90041-19928
9004170295
main90041-70295
9004179064
main90041-79064
9161261025
main91612-61025
9165161025
main91651-61025
9165261020
main91652-61020
16 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota CAMI
This section contains 21 genuine Toyota parts for the MOUNTING system of the Toyota CAMI. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.2, DAMPER, ENGINE MOUNTING, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, FRONT LH.
