Toyota CAMI — INSIDE TRIM BOARD

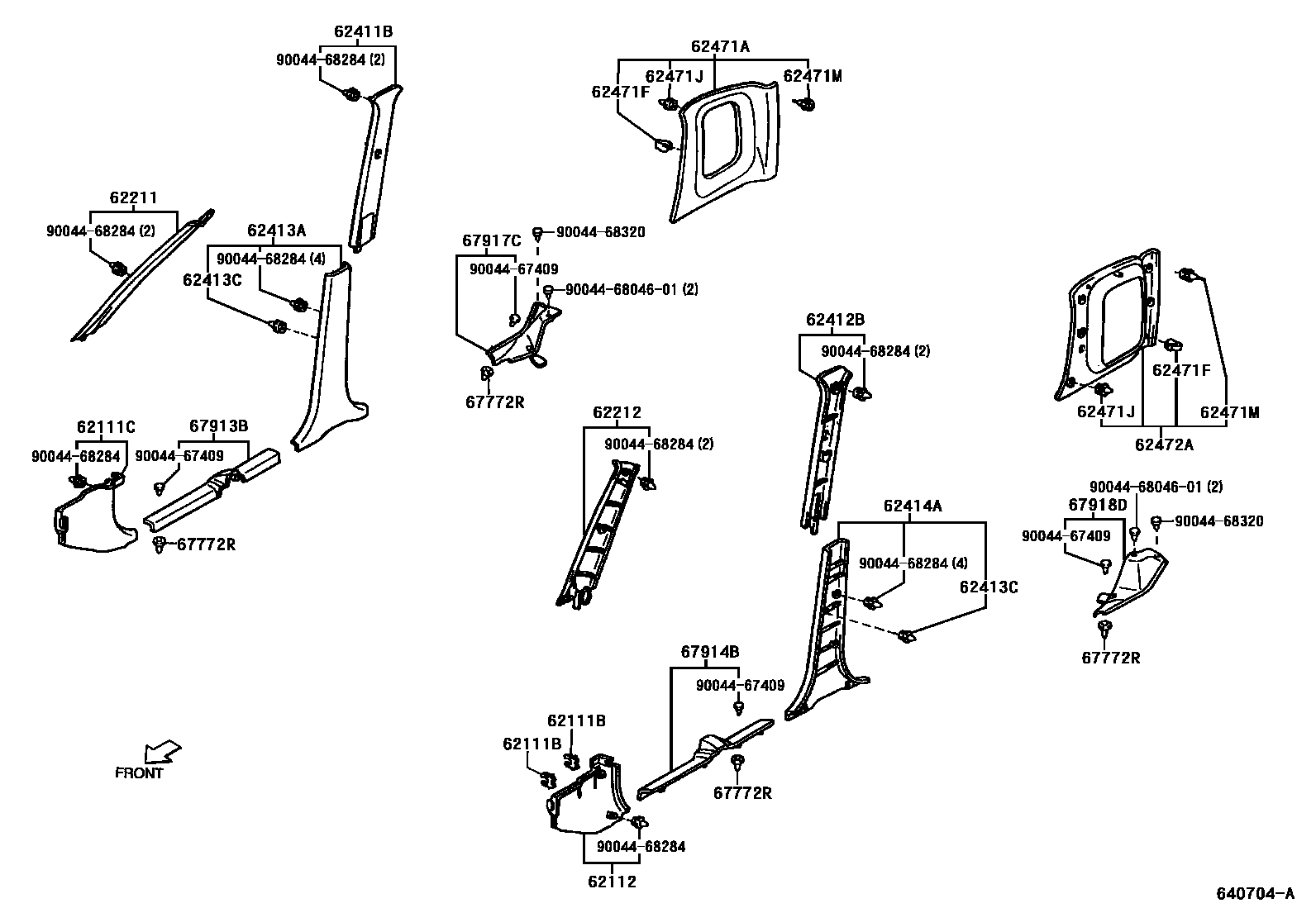

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90044-68233-01×2i199905
BLACK,TRIMS
62111CBOARD, COWL SIDE TRIM, RH
main62111-87401-03i199905-200005
GRAY,TRIMS
main62111-87401-13i200005
GRAY,TRIMS
62112BOARD, COWL SIDE TRIM, LH
main62112-87401-03i199905-200005
GRAY,TRIMS
main62112-87401-13i200005
GRAY,TRIMS
62211GARNISH, FRONT PILLAR, RH
main62211-87401-03i199905-200005
GRAY,TRIMS
main62211-87402-03i200005
GRAY,TRIMS
62212GARNISH, FRONT PILLAR, LH
main62212-87401-03i199905-200107
GRAY,TRIMS
main62212-87402-03i200112
GRAY,TRIMS
main62212-87403-03i200108-200112
GRAY,TRIMS
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-87401-03i199905
GRAY,TRIMS
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-87401-03i199905
GRAY,TRIMS
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-87402-03i199905-200005
GRAY,TRIMS
main62413-87402-13i200005
GRAY,TRIMS
62413CCLIP (FOR CENTER LOWER GARNISH)
main90044-67409×4i199905
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-87402-03i199905-200005
GRAY,TRIMS
main62414-87402-13i200005
GRAY,TRIMS
62471AGARNISH, ROOF SIDE, INNER RH
main62471-87401-03i199905
GRAY,TRIMS
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90044-67386×4i199905
62471JCLIP (FOR ROOF SIDE GARNISH)
main90044-68284×8i199905
62471MCLIP
main90044-68292×2i199905
62472AGARNISH, ROOF SIDE, INNER LH
main62472-87401-03i199905
GRAY,TRIMS
67772RCAP, DOOR TRIM RETAINER
main67772-87703×6i199905
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-87401-03i199905-200005
GRAY,TRIMS
main67913-87401-13i200005
GRAY,TRIMS
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-87401-03i199905-200005
GRAY,TRIMS
main67914-87401-13i200005
GRAY,TRIMS
67917CPLATE, REAR DOOR SCUFF, RH
main67917-87401-03i199905-200005
GRAY,TRIMS
main67917-87401-13i200005
GRAY,TRIMS
67918DPLATE, REAR DOOR SCUFF, LH
main67918-87401-03i199905-200005
GRAY,TRIMS
main67918-87401-13i200005
GRAY,TRIMS
9004467409
main90044-67409
900446804601
main90044-6804601
9004468284
main90044-68284
9004468320
main90044-68320

24 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD for Toyota CAMI

This section contains 33 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota CAMI. Key components include: FLOOR MAT & SILENCER PAD, BOX ASSY, REAR TRAY, CLIP(FOR COWL SIDE TRIM), BOARD, COWL SIDE TRIM, RH, BOARD, COWL SIDE TRIM, LH.
