Toyota CAMI — HEATING & AIR CONDITIONING - WATER PIPING

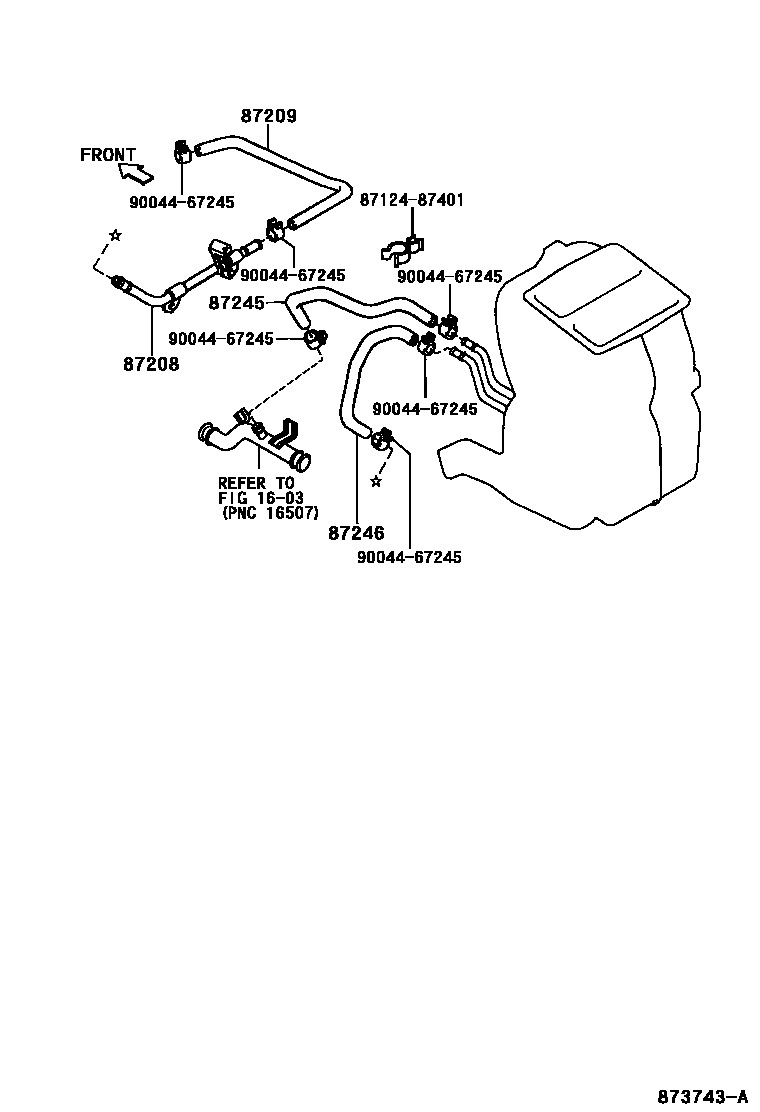

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87208PIPE SUB-ASSY, HEATER WATER

main87208-87401i199905-200005

main87208-87402i200005

87209HOSE SUB-ASSY, WATER

main87242-87401i199905-200005

main87242-87402i200005

87245HOSE, HEATER WATER, INLET

main87245-87402i199905-200005

main87245-87404i200005

87246HOSE, HEATER WATER, OUTLET

main87246-87401i199905-200005

main87246-87403i200005

8712487401CLAMP, HEATER

main87124-87401

9004467245

main90044-67245

7 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota CAMI

This section contains 10 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota CAMI. Key components include: RADIATOR & WATER OUTLET, PIPE SUB-ASSY, HEATER WATER, HOSE SUB-ASSY, WATER, HOSE, HEATER WATER, INLET, HOSE, HEATER WATER, OUTLET.
