Toyota CAMI — HEATING & AIR CONDITIONING - SET
88625KTHERMISTOR, COOLER
5551987403PLATE, HEATER CONTROL NAME
main55519-87403
8194287401SHEET, HEATER CONTROL NAME
main81942-87401
8473287402RETAINER, HEATER BLOWER SWITCH LEVER
main84732-87402
8473287403RETAINER, HEATER BLOWER SWITCH LEVER
main84732-87403
8516897201NUT, WINDSHIELD WIPER LINK PIVOT
main85168-97201
8713887402RESISTOR, HEATER BLOWER
main87138-87402
8713997201PACKING, BLOWER HEATER RESISTOR
main87139-97201
8803287401SWITCH, HEATER CONTROL VOLUME
main88032-87401
8803287402SWITCH, HEATER CONTROL VOLUME
main88032-87402
8846687402
main88466-87402
8856687702DUCT, COOLER AIR, NO.1
main88566-87702
8856987206CLAMP (FOR COOLER RELAY)
main88569-87206
8857887272PAKING, COOLER AIR DUCT
main88578-87272
8857887405PAKING, COOLER AIR DUCT
main88578-87405
8860587401HARNESS SUB-ASSY, COOLER WIRING, NO.1
main88605-87401
8860587402HARNESS SUB-ASSY, COOLER WIRING, NO.1
main88605-87402
8860587403HARNESS SUB-ASSY, COOLER WIRING, NO.1
main88605-87403
8862587711THERMISTOR, COOLER, NO.1
main88625-87711
8862597202THERMISTOR, COOLER, NO.1
main88625-97202
8863087201RELAY ASSY, COOLER
main88630-87201
8866097201PULLEY ASSY, COOLER IDLER
main88660-97201
8866097202PULLEY ASSY, COOLER IDLER
main88660-97202
8868887406BRACKET, COOLER DIAPHRAGM
main88688-87406
8868887407BRACKET, COOLER DIAPHRAGM
main88688-87407
8868887408BRACKET, COOLER DIAPHRAGM
main88688-87408
8889187403PACKING (FOR COOLER)
main88891-87403
9004464137
main90044-64137
9338516016
main93385-16016
9354054010
main93540-54010

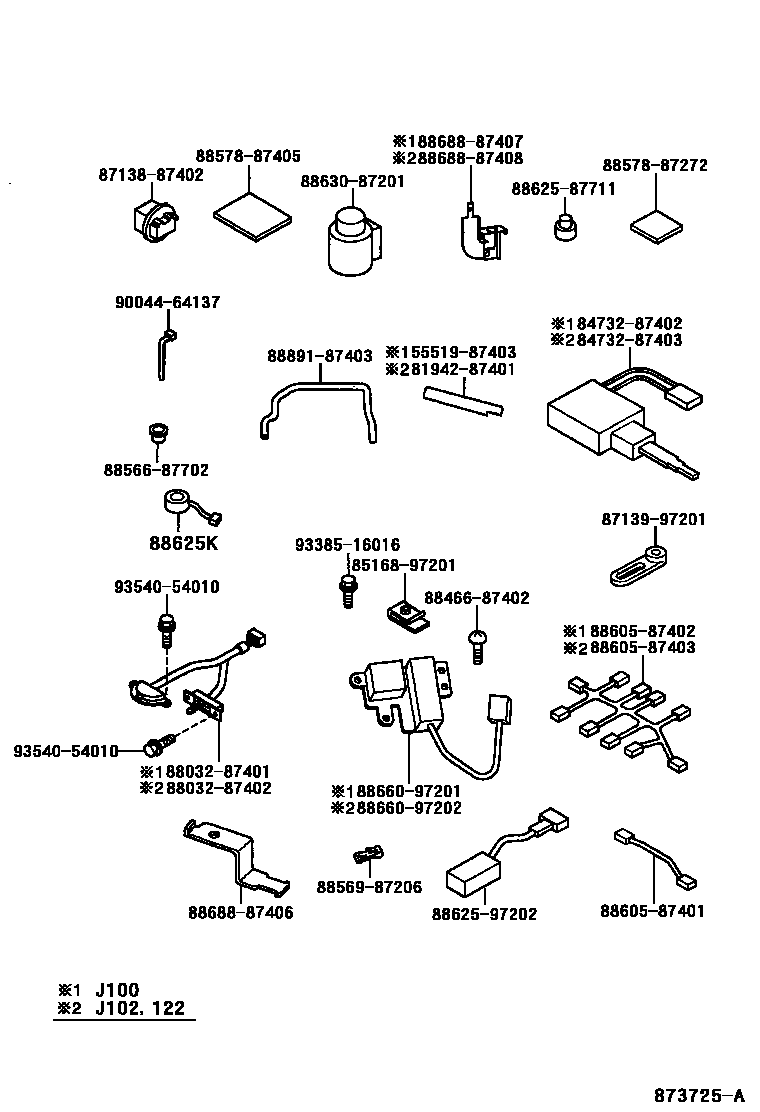

30 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - SET for Toyota CAMI
This section contains 30 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota CAMI. Key components include: THERMISTOR, COOLER, PLATE, HEATER CONTROL NAME, SHEET, HEATER CONTROL NAME, RETAINER, HEATER BLOWER SWITCH LEVER.
