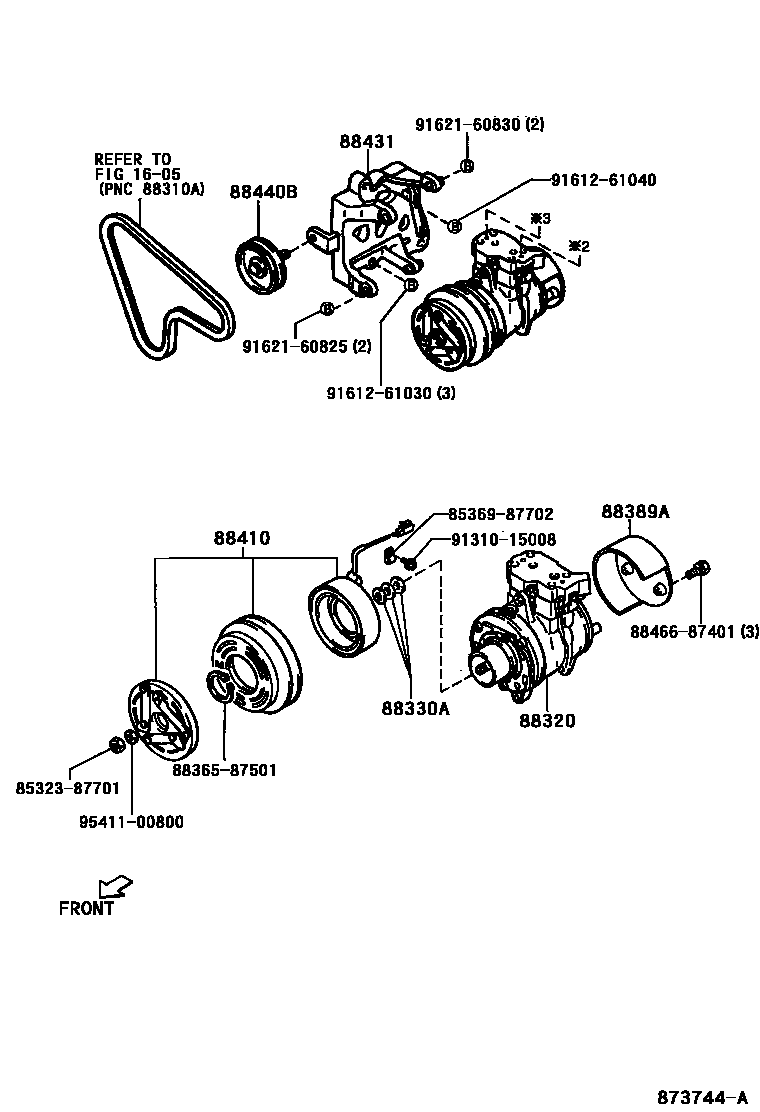

Toyota CAMI — HEATING & AIR CONDITIONING - COMPRESSOR
1605V-BELT
88320COMPRESSOR ASSY, COOLER
88330AWASHER (FOR MAGNET CLUTCH)
88389AWIRE, COMPRESSOR
88410CLUTCH ASSY, MAGNET
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88440BPULLEY ASSY, IDLE
8532387701
main85323-87701
8536987702CLAMP
main85369-87702
8836587501RING, SNAP
main88365-87501
8846687401
main88466-87401
9131015008
main91310-15008
9161261030
main91612-61030
9161261040
main91612-61040
9162160825
main91621-60825
9162160830
main91621-60830
9541100800
main95411-00800
17 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CAMI
This section contains 24 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CAMI. Key components include: V-BELT, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), WIRE, COMPRESSOR, CLUTCH ASSY, MAGNET.
