Toyota CAMI — HEADLAMP

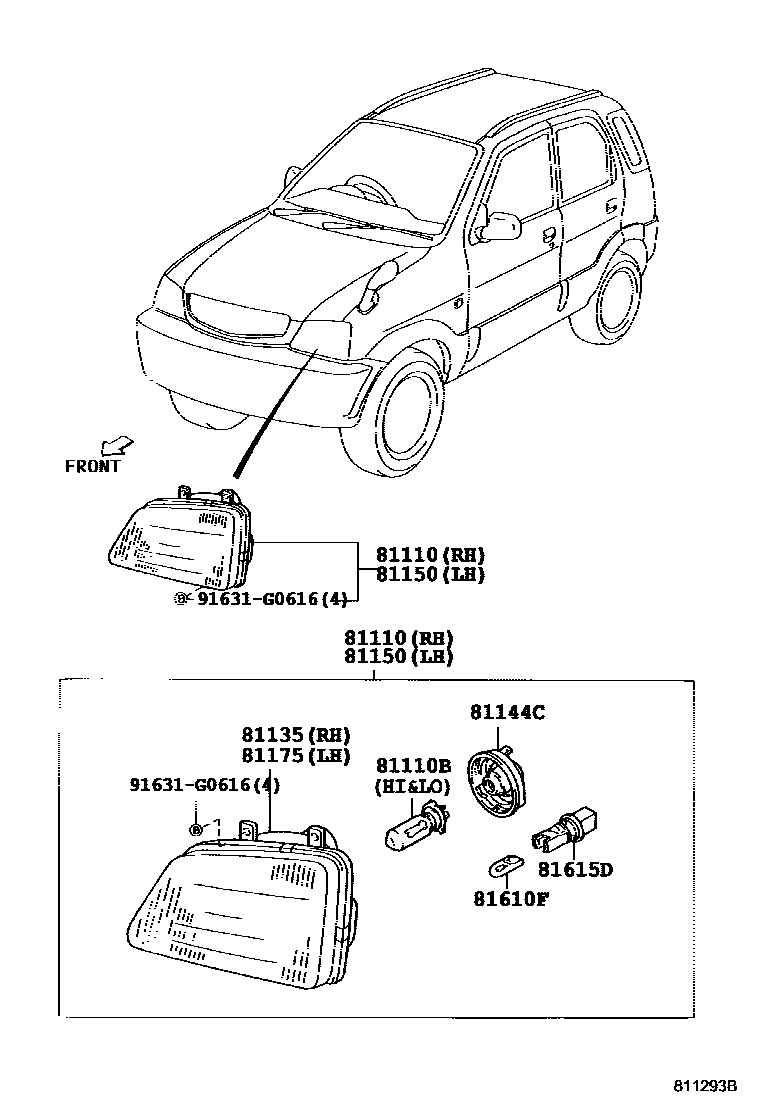

Parts diagram

81110HEADLAMP ASSY, RH

main81110-87410i199905-200005

main81110-87418i200005

main81110-87422i200005

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2i199905-200005

main90049-51141×2i200005

81135UNIT ASSY, HEADLAMP, RH

main81105-87401i199905-200005

main81130-87407i200008

main81130-87410i200005

81144CCOVER, HEADLAMP SOCKET

main81139-87401×2i199905-200005

81150HEADLAMP ASSY, LH

main81150-87410i199905-200005

main81150-87418i200005

main81150-87422i200005

81175UNIT ASSY, HEADLAMP, LH

main81106-87401i199905-200005

main81170-87407i200008

main81170-87410i200005

81610FBULB(FOR CLEARANCE LAMP)

main90981-11013×2i199905

81615DSOCKET, CLEARANCE LAMP

main81125-87401×2i199905

91631G0616

main91631-G0616

9 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota CAMI

This section contains 10 genuine Toyota parts for the HEADLAMP system of the Toyota CAMI. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB, HEADLAMP, NO.3, UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
