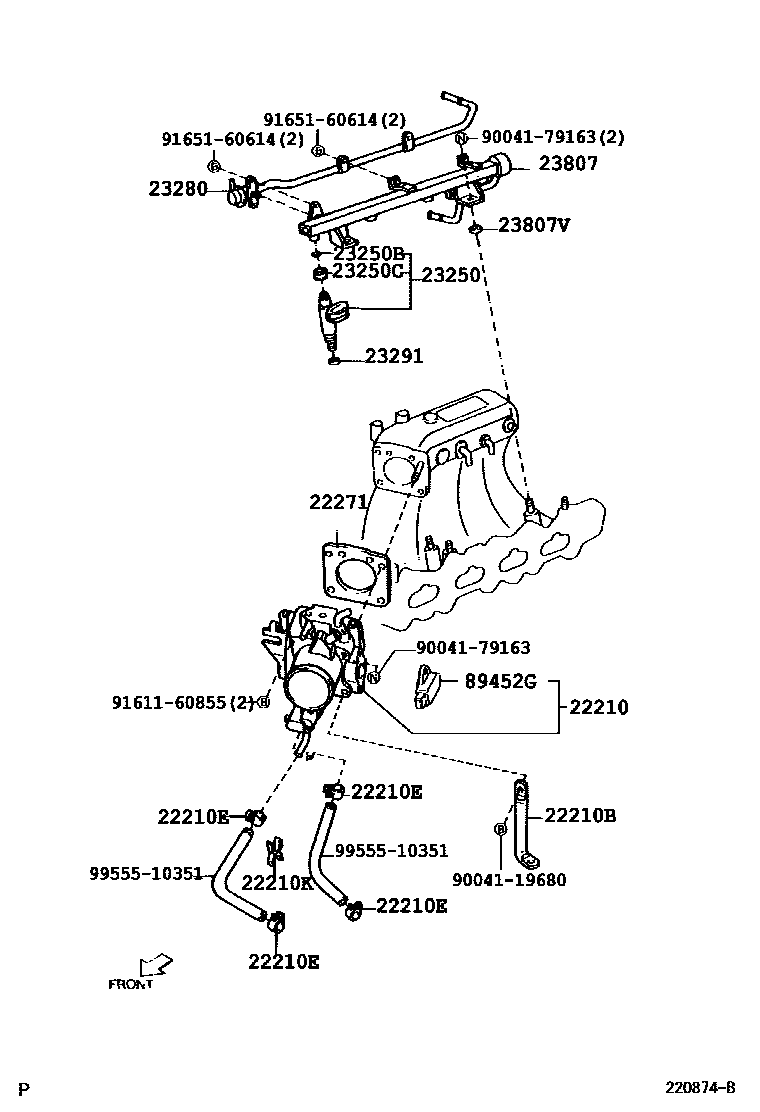

Toyota CAMI — FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22210BSTAY, THROTTLE BODY, NO.1
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210KCLAMP(FOR WATER HOSE)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
89452GSENSOR, THROTTLE POSITION
9004119680
main90041-19680
9004179163
main90041-79163
9161160855
main91611-60855
9165160614
main91651-60614
9955510351
main99555-10351
18 parts on this diagram · 6 diagrams in section
FUEL INJECTION SYSTEM for Toyota CAMI
This section contains 50 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CAMI. Key components include: BODY ASSY, THROTTLE, STAY, THROTTLE BODY, NO.1, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1), CLAMP(FOR WATER HOSE), GASKET, THROTTLE BODY COVER.
