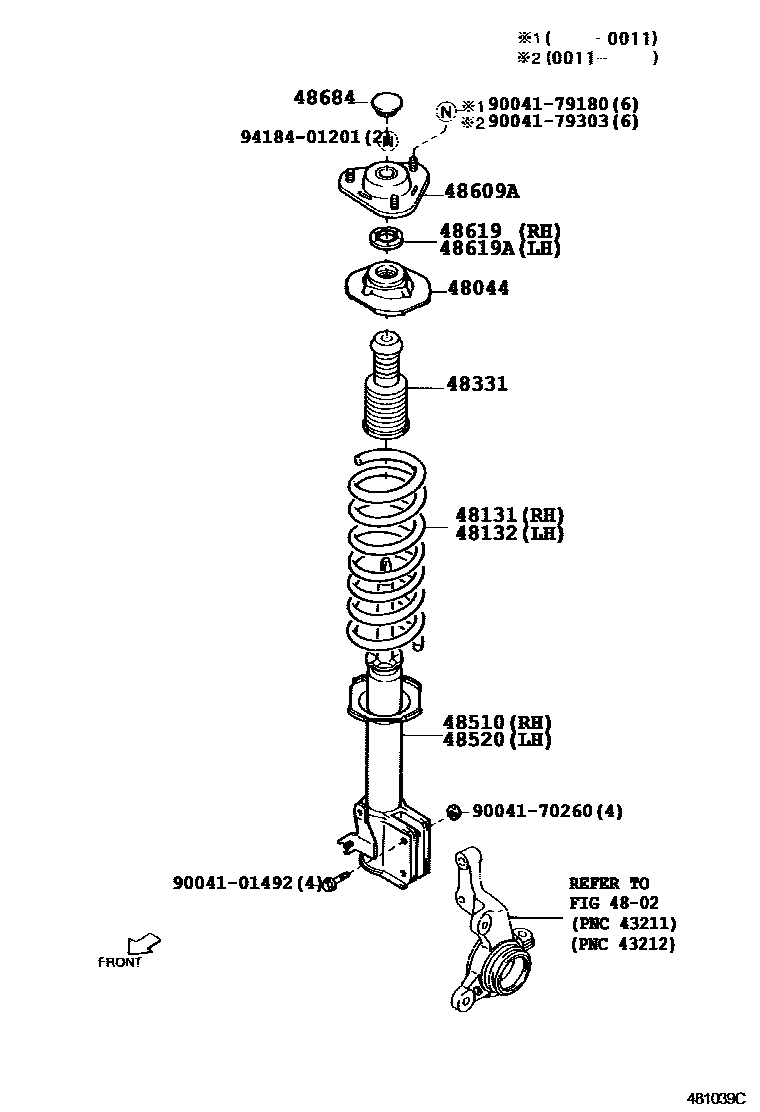

Toyota CAMI — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684COVER, BEARING DUST
9004101492
main90041-01492
9004170260
main90041-70260
9004179180
main90041-79180
9004179303
main90041-79303
9418401201
main94184-01201
16 parts on this diagram · 3 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota CAMI
This section contains 33 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota CAMI. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SEAT SUB-ASSY, FRONT SPRING, NO.1, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUMPER, FRONT SPRING, NO.1.
